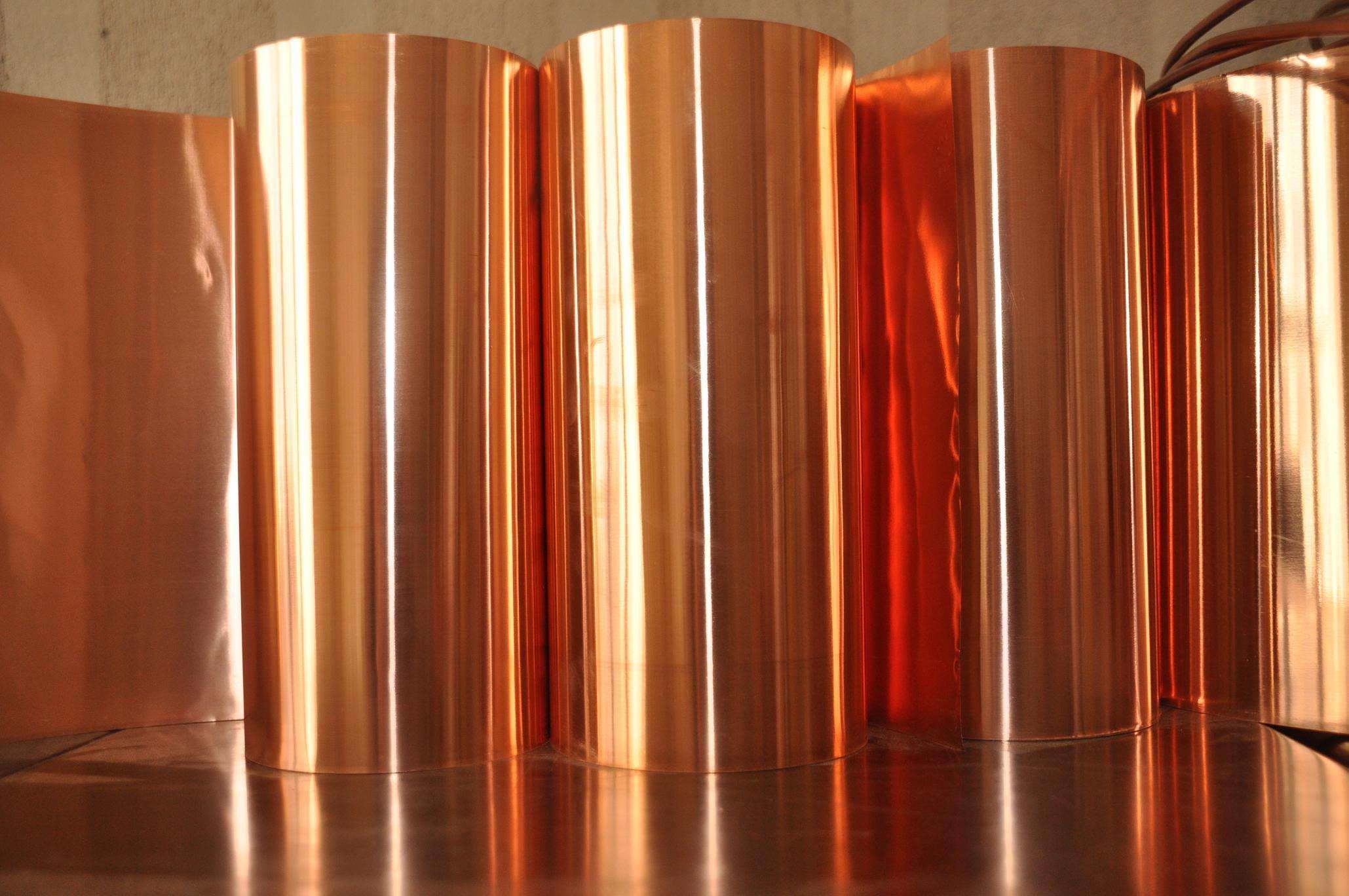

Heavy Thickness 0.2mm Copper Foil Shielding Rf Cage Material
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Copper Foil | Alloy Or Not | Non Alloy |
|---|---|---|---|
| Usage | Shielding Construction | Width | 1370mm |
| Characteristics | Uniform Crystal Structure | Payment Term | T/T In Advance, L/C At Sight |
| Marerial | Copper | Thickness | 0.2mm |
| Highlight | heavy thickness copper foil shielding,0.2mm copper foil shielding,rf cage copper shielding sheet |
||
Product Description
Heavy thickness 0.2mm RF Cage Material Copper Foil Sheet Shielding Materials
Why choose copper foil material for RF/MRI Room Installation?
Copper is durable, has superior electrical conductivity and is extremely corrosion resistant.
Copper is also easily formed that the shape of the shield can be easily modified to
suit rooms of different shapes and sizes.
There are two types of Copper foil.
The first one is elctrodeposited copper foil
The second one is rolled annealed copper foil.
The difference of them one is the different production techniques., another one is the colour.
The colour of ED copper foil one side is shiny, the other side is matte. But the rolled annealed copper foil both side is shiny.
Shielding Features:
1. Lightweight compared with other shielding materials
2. Copper width can be with more than 1300mm, can be more easy to install, especially for roofing, wall and floor.
3. Can be used with either a monolithic RF Floor (moisture resistance) or a modular RF Floor.
4. Copper Serves as an eddy current shield for EMI Protection.
ED Pure Copper Foil with High Elongation and High Tensile Strength, can be used in many areas. We can provide
the specific single-matte, double-matte, and double-shiny ED Copper for the Li-ion Battery.
ED Copper Foil Specification
|
Quality Items
|
General Technical Terms
|
|||||
|
2oz
|
3oz
|
4oz
|
5oz
|
6oz
|
||
|
(70um)
|
(105um)
|
(0.14mm)
|
(175um)
|
(210um)
|
||
|
Area Weight g/m2
|
585±25
|
915±45
|
1220±60
|
1525±75
|
1830±90
|
|
|
Leakage Points
|
No
|
|||||
|
points/m2
|
||||||
|
Quality of electrical
|
≤0.162
|
|||||
|
resistivity
|
||||||
|
Ω·g /m2
|
||||||
|
Anti-Oxidization
|
No Oxidization
|
|||||
|
Performance
|
||||||
|
160 centigrade/30min
|
||||||
|
Width Tolerance
|
1290.0±1.0
|
1320.0±1.0
|
1370.0±1.0
|
|||
| mm |
||||||
Product packaging
|
Size
|
1500mm*330mm*463mm
|
|
Weight
|
263kg
|
|
Packaging Details
|
In woden case packing If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
After-Service:
1. Delivery within 10 days after receiving payments.
2. Offer Different Shipping Ways to our customers.
3. Track the order until you get the products
4. In usual, sea port we used is in Tianjin, Shenzhen...
