ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding

  • ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding
  • ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 250kg
Price usd13.1-usd21.59/kg
Packaging Details packed in wooden case 1500mm*330mm*463mm
Delivery Time 5-8working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Red Copper Foil ED Copper Foil 1295mm 1285mm 1320mm 1370mm
ED Copper Foil Thickness 0.07mm 0.105mm 0.14mm Shielded Frequency >100db In Band 10MHz-130MHz
Purity 99.85% Delivery Time 5-8working Days
MOQ 200kg For ED Copper Foil 500kg For RA Copper Foil Usage MRI Room,Shielding EMI,electromagnetic Shielding,Conductive Shielding
Thickness 20μm-150μm,Designed,19-150u,25μ-200μ Type Roll
High Light

ED Copper Foil Shielding

,

2oz 0.07mm Copper Foil Shielding

,

1295mm copper tape emi shielding
Leave a Message
Product Description

ED Copper Foil 2oz 0.07mm thickness 1295mm width for RF cage SGS





1.Description of ED copper foil



ED Shielding Copper Foils with High Elongation and High Tensile Strength, can be used in many areas. We can provide the specific single-matte, double-matte, and double-shiny ED Copper for the Li-ion Battery. And we can also offer 2oz to 6oz ( nominal thickness 70um to 210um) Shielded ED Copper Foils used for shielding of electric products, especially as transformer, cable, mobile phone, computer, mechanical treatment, and aerospace. What is more, HTE (high temperature elongation) from 1/2oz to 2oz thickness copper foil and VLP-HTE-HF( very-low-profile, high temperature elongation, and heavy ED Copper Foils, used in PCB, which the max dimension is 1295mm x 2450mm.

Copper is an influential metal for both industrial and consumer applications.

Our copper foil inventory consists of Electro Tough Pitch (110 alloy) and Oxygen Free (102 alloy).

We also have copper foil sheeting and other copper foil sheet products that are Hot Tin Dipped to enhance solderability.

Copper is a versatile metal used in a variety of industries.

Major characteristics include being a malleable and ductile metal with a very high thermal and electrical conductivity.



2.Specification of ED copper foil



Qualtiy Items General Technical Terms
Normal thickness 2oz 3oz 4oz 5oz
0.07mm 0.105mm 0.14mm 0.175mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600
Tensile strength Room temperature ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room temperature ≥10 ≥10 ≥10 ≥10
%
Leakage points(points/m2) No
High temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance (+2.0 ,-2.0)





ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding 0

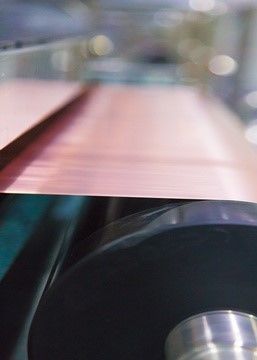

3.Production line



ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding 1






4.Application Of copper foil



Copper is great material of shielded signal .Widely used for rf cage /MRI room installations,building roof to protect out of oxidizition .

There are two main installation ways of RF cage building .

First option :

ED copper foil 1320mm -basic step- Make Wooden Panel +Put copper foil Covered wooden frame +assemle copper foil wooden panel together.

Finished RF shielded cage as below:

 ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding 2

Second option :

RA copper foil 600mm- basic step -Make bending edges of copper sheet +Fix sheets on wood walls +welding edges of 2 pcs sheets together.

Finished RF shielded cage as below:

ED 2oz 0.07mm 1295mm Copper Foil Shielding Tape Emi Shielding 3



5.F&A

Q1. Can I have a sample order for Ed Copper foil ?
A: Yes, we welcome sample order to test and check quality. Free A4 ED copper foil sample .



Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.



Q3. How to proceed an order for copper foil?
A:

Firstly let us know your size and quantity .
Secondly We quote stock roll or your quantity .
Thirdly place order and wait for your bank slip to start production
