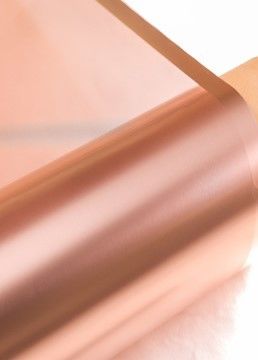

3oz 0.105mm 1320mm Copper Foil Shielding Self Adhesive Copper Strip Electrodeposited

  • 3oz 0.105mm 1320mm Copper Foil Shielding Self Adhesive Copper Strip Electrodeposited
  • 3oz 0.105mm 1320mm Copper Foil Shielding Self Adhesive Copper Strip Electrodeposited
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 200kg
Price USD 18-20 + kg
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms Western Union, L/C, D/A
Supply Ability 20MT per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Pure Copper Thickness 3oz 0.105mm
Width 1320mm Color Copper
Packing Wooden Case MOQ 200kg
High Light

3oz 0.105mm Copper Foil Shielding

,

1320mm Copper Foil Shielding

,

self adhesive copper strip Electrodeposited
Leave a Message
Product Description

3oz 0.105mm 1320mm Width Electrodeposited Copper Foil Shielding



Quick Detail:



1. 3oz 0.105mm thickness 1320mm width

2. MOQ 200kg

3. In roll shape and in wooden case

4. High Elongation and high tensile performance

5. Using for MRI RF Room or Faraday Cage Shielding Field



Description:



1. Lightweight



2. Copper with 1320mm width or wider , can be more easy to install, especially for roofing, wall and floor.



3. Copper Serves as an eddy current shield for EMI Protection.



4. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is

generally considered the best shielding for MRI rooms compared with Al and GL..



5. Copper is durable, has superior electrical conductivity and is extremely corrosion resistant. Copper is

also easily formed meaning that the shapes of the shield can be easily modified to suit rooms of different

shapes and sizes.



6. High performance, vertically-supported modular enclosure



7. Reinforced wall design



8. Easily and quickly modified on site



9. Copper serves as an eddy current shield for EMI protection



Application:



Copper foil can be well used in MRI RF Room Shielding Installation and Faraday Cage.



Specification:





Quality Items General Technical Terms
Normal Thickness 2oz 3oz 4oz 5oz 6oz
0.07mm 0.105mm 0.140mm 0.175mm 0.210mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600 1650-1920
Tensile Strength Room Temperature ≥28 ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room Temperature ≥10 ≥10 ≥10 ≥10 ≥10
(%)
Leakage Points (points/m2) No
High Temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance (+2.0,-2.0)




0.1mm thickness 1320mm width Copper Foil Shielding for MRI RF Room 0



0.1mm thickness 1320mm width Copper Foil Shielding for MRI RF Room 8





FAQ:



1. What is the delivery time?



5-8 working days after receiving payment.



2. What shipment way can you offer?



By air, by sea, by train.



3. What service can you offer?



High quality products, competitive price, warmly following until you receive, and also technical support during use once you need.



4. What is MOQ ?



200kg per roll.
