250mm Width Rolled Annealed Copper Foil 0.15mm Thickness 99.9% Pure

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWidth For Copper Foil | 50mm-600mm | Product Name | Rolled Annealed Copper Foil Roll 600mm Width 0.15mm Thickness 99.9% Pure Copper |
---|---|---|---|
Material | Red Pure Copper | Thickness | 0.1mm, 0.15mm, 0.2mm |
Purity | 99.9% | Delivery Time | 5-8working Days |
MOQ | 500kg | ||
Highlight | 250mm width rolled annealed copper foil,99.9% pure rolled annealed copper foil,rolled annealed copper foil shielding |

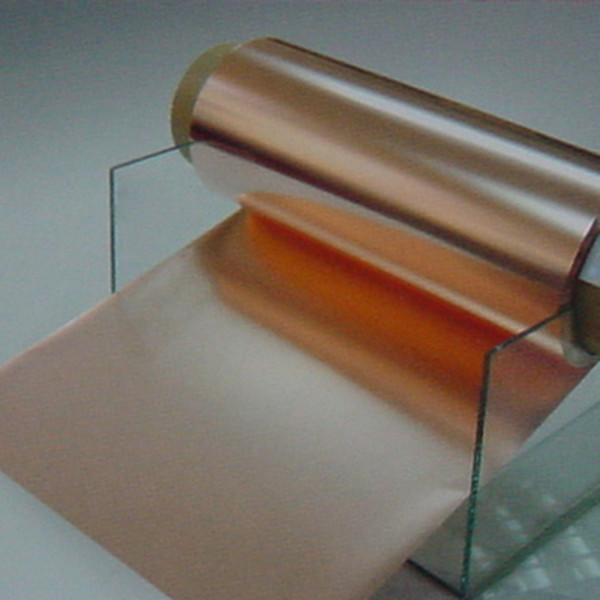

Rolled Annealed Copper Foil Roll 250mm Width 0.15mm thickness 99.9% Pure Copper
Description:
Copper foil is frequently used for shielding projects, such as MRI room and RF cage installation, as well as electrical industry such as PCB board manufacturing and electronic repair. It has high conductivity and is very durable.
There are two types of copper foil: Rolled Annealed (RA) Copper Foil and Electrodeposited (ED) Copper Foil.
They differ in the following ways:
- Appearance
- Maximum Width
- Hardness
Specification:
ED copper foil
Qualtiy Items | General Technical Terms | ||||
Normal thickness | 2oz | 3oz | 4oz | 5oz | |
0.07mm | 0.105mm | 0.14mm | 0.175mm | ||
Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | |
Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
(kg/mm2) | |||||
Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
% | |||||
Leakage points(points/m2) | No | ||||
High temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | ||||
Width Tolerance | (+2.0 ,-2.0) |
Application:
RA copper foil 600mm- basic step -Make bending edges of copper sheet +Fix sheets on wood walls
+ welding edges of 2 pcs sheets together.
Q1. Can I have a sample order?
A: Yes, we welcome sample orders for testing.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. Airline and sea shipping is also optional.
Q3. Do you have MOQ requirements?
A: MOQ is 200kg for ED copper foil 1320mm, 500kg for RA copper foil 600mm.
