3oz Thickness Rf Cage Copper Foil Shielding With High Performance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPlace Of Origin | Beijing,China | Shape | Coil |
---|---|---|---|
Alloy Or Not | Non-Alloy | Elongation (≥ %) | 5-20 |
Cu (Min) | 99.90% | Width | 3oz/0.105mm |
Application | MRI Room RF Cage | Flatness | Good Flatness Close To 100%, Without Stress Or Others That Can Influence The Production |
Highlight | 3oz thickness copper foil shielding,high performance copper foil shielding |
Why choose copper foil material for RF/MRI Room Installation?
Copper is durable, has superior electrical conductivity and is extremely corrosion resistant.
Copper is also easily formed meaning that the shape of the shield can be easily modified to
suit rooms of different shapes and sizes.
Specification
Quality Items
|
General Technical Terms
|
|||||
2oz
|
3oz
|
4oz
|
5oz
|
6oz
|
||
(70um)
|
(105um)
|
(0.14mm)
|
(175um)
|
(210um)
|
||
Area Weight g/m2
|
585±25
|
915±45
|
1220±60
|
1525±75
|
1830±90
|
|
Leakage Points
|
No
|
|||||
points/m2
|
||||||
Quality of electrical
|
≤0.162
|
|||||
resistivity
|
||||||
Ω·g /m2
|
||||||
Anti-Oxidization
|
No Oxidization
|
|||||
Performance
|
||||||
160 centigrade/30min
|
||||||
Width Tolerance
|
1290.0±1.0
|
1320.0±1.0
|
1370.0±1.0
|
|||
mm
|
Copper Feature
1. High performance, vertically-supported modular enclosure
2. Reinforced wall design
3. Lightweight
4. Installed in more MRI sites worldwide than any other shield system
5. Easily and quickly modified on site
6. Copper serves as an eddy current shield for EMI protection

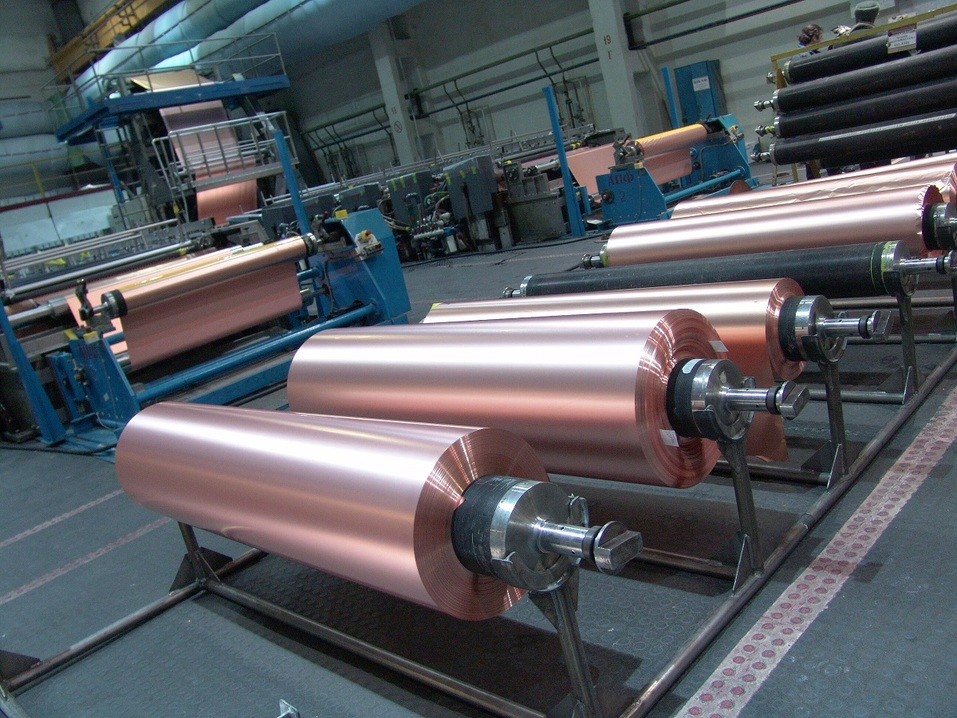

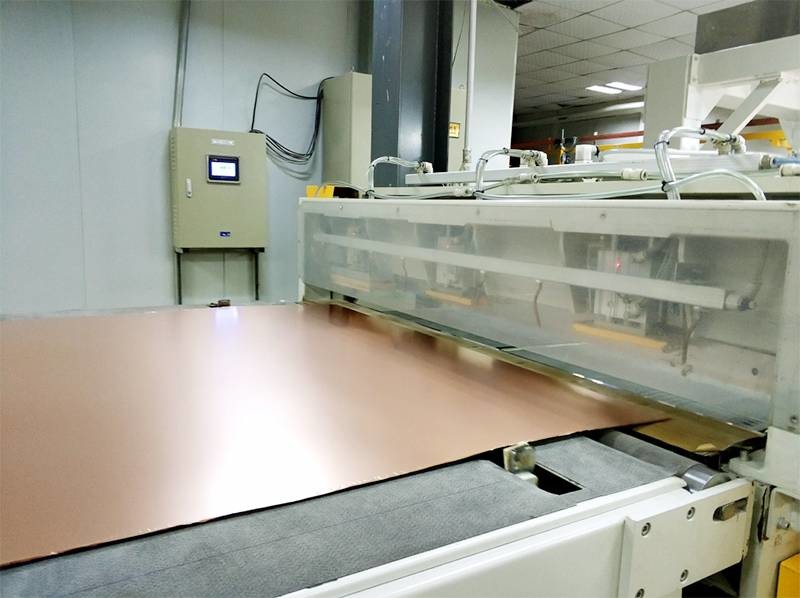

Producing Process
Product packaging
Size
|
1500mm*330mm*463mm
|
Weight
|
263kg
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
