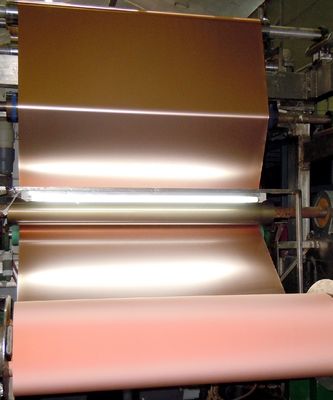

3oz Ed Copper Foil Shielding For Mri Room Rf Cage
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing,China | Shape | Coil |
|---|---|---|---|
| Alloy Or Not | Non-Alloy | Material | Copper |
| Service | 24 Hours Online | Size | Customizable |
| Usage | Industry Decoration Construction | ||
| Highlight | mri room copper foil shielding,3oz copper foil shielding,rf cage ed copper foil |
||
Product Description
Specification
|
Quality Items
|
General Technical Terms
|
|||||
|
2oz
|
3oz
|
4oz
|
5oz
|
6oz
|
||
|
(70um)
|
(105um)
|
(0.14mm)
|
(175um)
|
(210um)
|
||
|
Area Weight g/m2
|
585±25
|
915±45
|
1220±60
|
1525±75
|
1830±90
|
|
|
Leakage Points
|
No
|
|||||
|
points/m2
|
||||||
|
Quality of electrical
|
≤0.162
|
|||||
|
resistivity
|
||||||
|
Ω·g /m2
|
||||||
|
Anti-Oxidization
|
No Oxidization
|
|||||
|
Performance
|
||||||
|
160 centigrade/30min
|
||||||
|
Width Tolerance
|
1290.0±1.0
|
1320.0±1.0
|
1370.0±1.0
|
|||
| mm |
||||||
Copper Feature
1. High performance, vertically-supported modular enclosure
2. Reinforced wall design
3. Lightweight
4. Installed in more MRI sites worldwide than any other shield system
5. Easily and quickly modified on site
6. Copper serves as an eddy current shield for EMI protection
Application
ED Shielding Copper Foils with High Elongation and High Tensile Strength, can be used in many areas.
We can provide the specific single-matte, double-matte, and double-shiny ED Copper for the Li-ion Battery.
And we can also offer 2oz to 6oz ( nominal thickness 70um to 210um) Shielded ED Copper Foils used for shielding of electric products, especially as transformer, cable, mobile phone, computer, mechanical treatment, and aerospace.
Producing Process
Product packaging
|
Size
|
1500mm*330mm*463mm
|
|
Weight
|
263kg
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
