0.07mm Copper Foil Shielding Electrodeposit

  • 0.07mm Copper Foil Shielding Electrodeposit
  • 0.07mm Copper Foil Shielding Electrodeposit
  • 0.07mm Copper Foil Shielding Electrodeposit
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 200kg
Price usd17.5-18.8/kg
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 80 ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Pure Copper Width 1285mm
Thickness 0.07mm Usage MRI RF Shielding
Shielded Frequency 10MHz-130MHz>100dB Purity 99.9%
High Light

2oz 0.07mm Copper Foil Shielding

,

1285mm Copper Foil Shielding

,

130MHz copper metal sheet foil
Leave a Message
Product Description

0.07mm Stock Roll 200kg Electrodeposit Copper Foil Roll Shielding

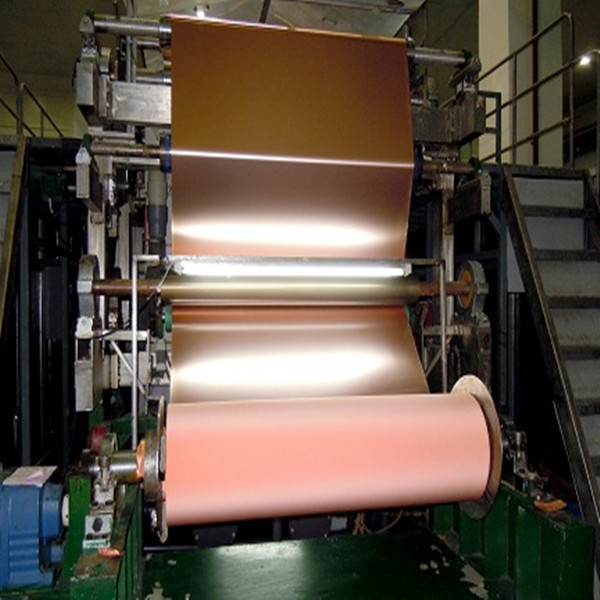

Production Process:



I: High purity copper wire

II: Soluble copper

III: Crude ED copper foil

IV: Cutting

V: Finished products

VI: Inspection

VII: packing




Specification of ED copper foil:



Qualtiy Items General Technical Terms
Normal thickness 2oz 3oz 4oz 5oz
0.07mm 0.105mm 0.14mm 0.175mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600
Tensile strength Room temperature ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room temperature ≥10 ≥10 ≥10 ≥10
%
Leakage points(points/m2) No
High temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance

(+2.0 ,-2.0)

Application:



Copper is great material of shielded signal .Widely used for rf cage /MRI room installations,building roof

to protect out of oxidizition .



 0.07mm Copper Foil Shielding Electrodeposit 0



FAQ:



Q1. Can I have a sample order for Ed Copper foil ?
A: Yes, we welcome sample order to test and check quality. Free A4 ED copper foil sample .



Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.



Q3. Do you have any MOQ limit ?
A: Low MOQ, 200kg
