0.07mm Conductive Copper Foil Shielding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Copper Foil | Width | 1295mm 1285mm 1290mm |
|---|---|---|---|
| Thickness | 0.07mm | Usage | RF Cage MRI Room Shielding Field |
| Shielded Frequency | 10MHz-130MHz >100dB | Purity | 99.9% |
| High Light | 0.07mm Copper Foil Shielding,RF cage Copper Foil Shielding,1290mm copper tape conductive adhesive |
||
Product Description

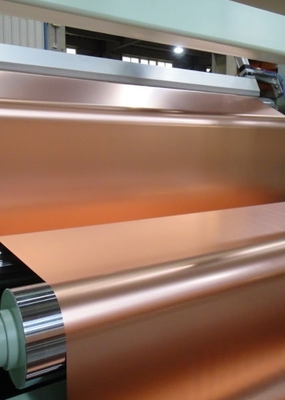

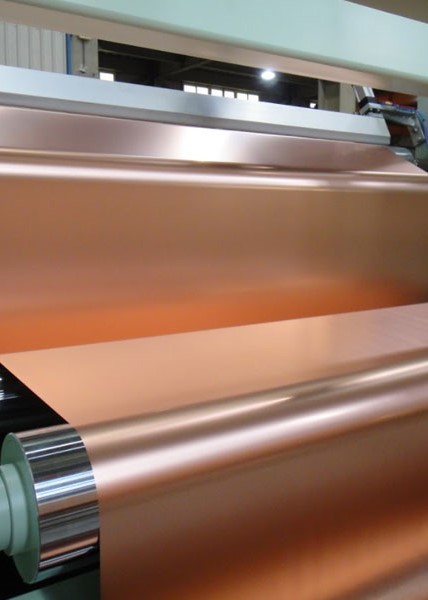

0.07mm 1285mm Conductive Electrolytic Copper Foil Shielding
Description:
Copper Foil is widely used for RF cage installation exspecially 0.105mm 1320mm .
This size is very convenient to make wooden panels then assembling six sides as a whole cage .
Copper has best shielded frequency in all metal types ,and it is essential part for shielded layers
when people install MRI cage .
Production Process:
a: High purity copper wire
b: Soluble copper
c: Crude ED copper foil
d: Cutting
e: Finished products
f: Inspection
g: packing
Application:
Copper is great material of shielded signal .Widely used for rf cage /MRI room installations,building roof
to protect out of oxidizition .

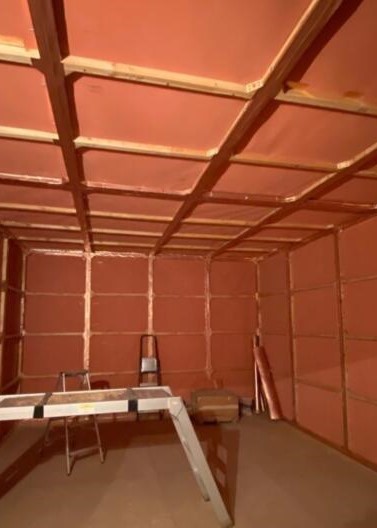

ED copper foil 1320mm -basic step- Make Wooden Panel +Put copper foil Covered wooden frame
+assemle copper foil wooden panel together.
Specification of ED copper foil:
| Qualtiy Items | General Technical Terms | ||||
| Normal thickness | 2oz | 3oz | 4oz | 5oz | |
| 0.07mm | 0.105mm | 0.14mm | 0.175mm | ||
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | |
| Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) | |||||
| Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
| % | |||||
| Leakage points(points/m2) | No | ||||
| High temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | ||||
| Width Tolerance | (+2.0 ,-2.0) | ||||
FAQ:
Q1. Can I have a sample order for Ed Copper foil ?
A: Yes, we welcome sample order to test and check quality. Free A4 ED copper foil sample .
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. Airline and sea shipping also optional.
Q3. Do you have any MOQ limit ?
A: Low MOQ, 200kg
