0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 200kg
Price usd13.1-usd21.59/kg
Packaging Details packed in wooden case 1500mm*330mm*463mm
Delivery Time 5-8working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100ton/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Mri Room Installation Material Red Copper Foil
Width For Copper Foil 1295mm - 1370mm Thickness 0.105mm
Usage RF Cage MRI Room Installation Purity 99.9%
Delivery Time 5-8working Days Sample Available
High Light

0.105mm adhesive backed copper foil

,

adhesive backed copper foil 960g/M2

,

3oz emi copper foil shielding tape

Leave a Message
Product Description

Copper Foil Shielding 0.105mm Copper Foil for Transformer Winding​



Description:

Copper is durable, has superior electrical conductivity, and is extremely corrosion resistant.

Copper is also easily formed meaning that the shapes of the shield can be easily modified

to suit rooms of different shapes and sizes.



Specification:

ED copper foil

Qualtiy Items General Technical Terms
Normal thickness 2oz 3oz 4oz 5oz
0.07mm 0.105mm 0.14mm 0.175mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600
Tensile strength Room temperature ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room temperature ≥10 ≥10 ≥10 ≥10
%
Leakage points(points/m2) No
High temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance (+2.0 ,-2.0)

0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 0

Application:

There are two main installation ways of RF cage building.

First option :

ED copper foil 1320mm -basic step- Make Wooden Panel +Put copper foil Covered

wooden frame +assemle copper foil wooden panel together.

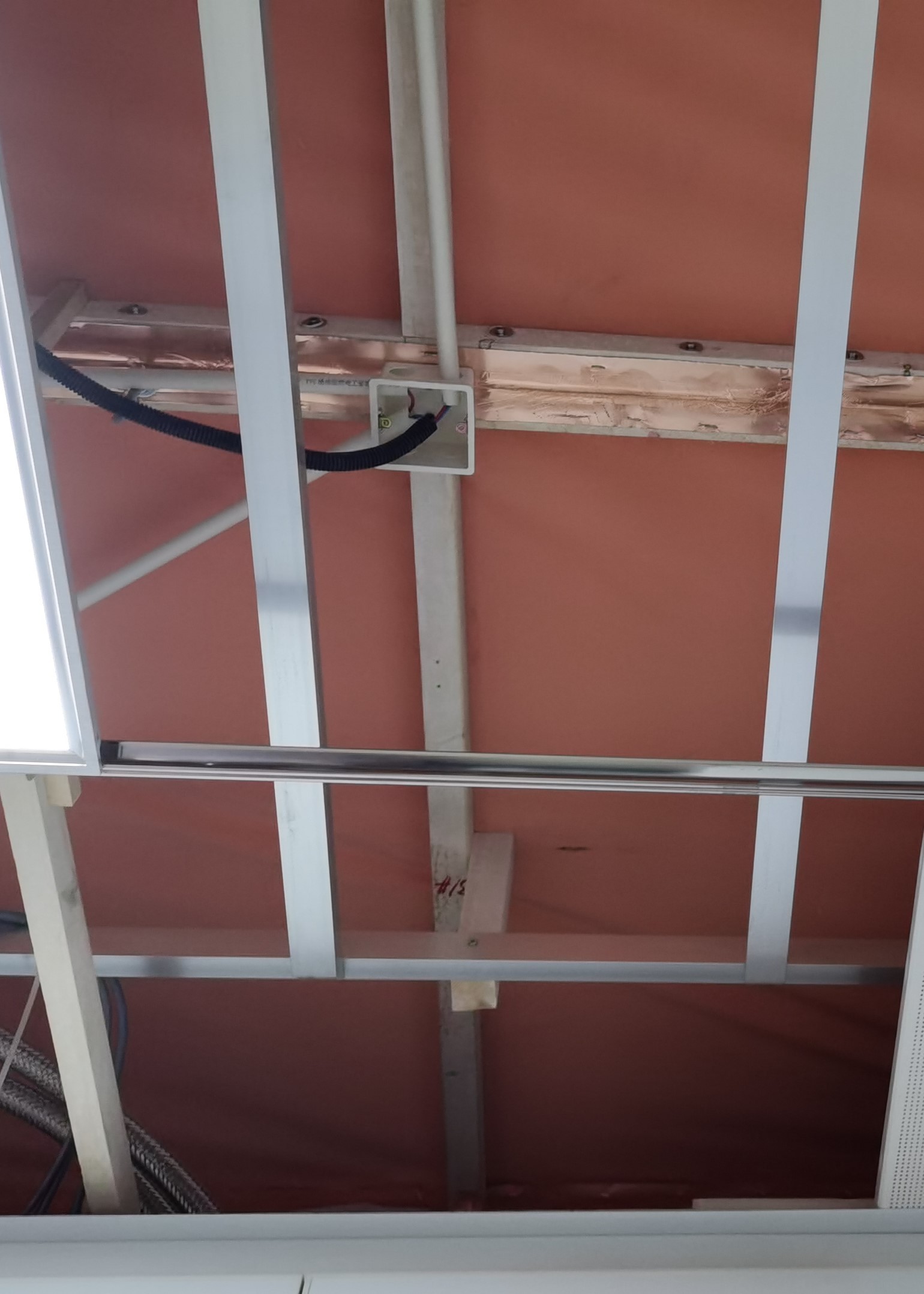

Finished RF shielded cage as below:

 0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 1 0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 2 0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 3

Second option :

RA copper foil 600mm- basic step -Make bending edges of copper sheet +Fix sheets on wood walls

+ welding edges of 2 pcs sheets together.

Finished RF shielded cage as below:

0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 4  0.105mm 3oz Emi Adhesive Backed Copper Foil Shielding Tape 960g Per M2 5





Q1. Can I have a sample order?
A: Yes, we welcome sample orders for testing.



Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. Airline and sea shipping is also optional.



Q3. Do you have MOQ requirements?
A: MOQ is 200kg for ED copper foil 1320mm, 500kg for RA copper foil 600mm.
