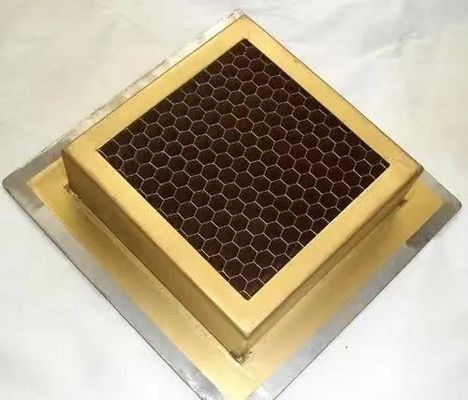

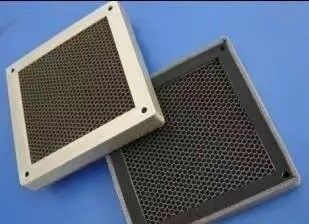

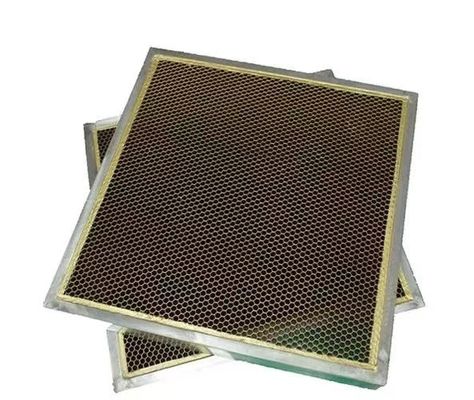

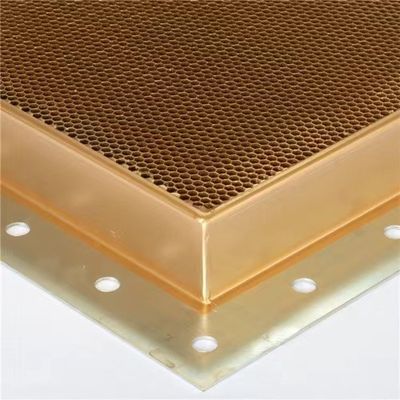

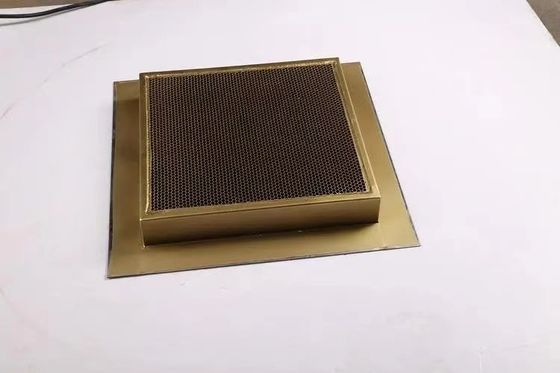

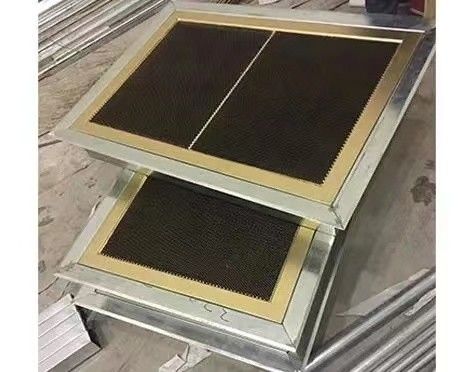

Aluminum Cellular Waveguide Vent Panels Featuring Superior Air Throughput Working Thermal Scope -40 Deg Celsius Up To 125 Celsius
Product Details
| Waterresistance | IP65 Or Higher | Material | Aluminum Or Stainless Steel |
|---|---|---|---|
| Advantage | High Quality | Mountingtype | Panel Mount |
| Compliancestandards | RoHS, REACH | Transfer Function | All Pass,Low Pass |
| Size | 300*300/300*600/600*1200mm | Operatingtemperaturerange | -40°C To 125°C |
Product Description
Product Description:
Cellular Waveguide Vent Panels serve as a creative product built to deliver outstanding air circulation rate alongside dependable EMI shielding effects. Elaborately manufactured, these ventilation components perfectly fit scenarios demanding great air exchange plus solid shielding safeguard, particularly RF shielding cabinet ventilation assemblies. Made of top-grade aluminium or stainless steel, the cellular vent boasts sturdy structure, anti-rust ability and steady long-term operation amid diverse working surroundings.
A prominent merit of Cellular Waveguide Vent Panels lies in their remarkable air ventilation capacity. The honeycomb layout maximizes air passage volume, lessens wind resistance and realizes ideal air renewal effect. This function matters greatly for RF cabinet ventilation, as proper air convection must be guaranteed without weakening shielding indexes. The framed cellular vent’s special structure streamlines air flow, boosts heat dissipation efficiency and blocks electromagnetic wave leakage thoroughly.
Standard dimensions cover 300300 mm, 300600 mm and 600*1200 mm, granting great adaptability to match various mounting demands. No matter compact vents for tiny sealed housings or oversized panels for large-scale air exhaust, Cellular Waveguide Vent Panels can be tailor-made to match your technical standards. The matched solid frame not only eases on-site fitting but also strengthens structural firmness, keeping the vent fixed steadily under varied working circumstances.
Another core advantage refers to its signal transmission features. It supports full-pass and low-pass two signal modes, satisfying differentiated electromagnetic wave filtering demands. Such flexibility widens its applicable scope, covering precision electronic device protection and communication system signal optimization. The cellular waveguide’s accurate physical features weaken stray radio frequency signals drastically while keeping unobstructed air convection.
Clients may apply for product samples for pre-order assessment. It enables technicians and designers to verify practical use performance and confirm matching degree with personalized project demands. Sample supply fully reflects the producer’s assurance on product quality and practical shielding effect.
Raw material options are premium aluminium and stainless steel, selected according to application scenes and technical demands. Aluminium features light weight, high rigidity and fine anti-corrosion property, fit for indoor and outdoor general usage. Stainless steel owns higher mechanical strength and wear resistance, more suitable for severe and corrosive working conditions. Both materials extend service life and sustain stable working performance long term.
Cellular Waveguide Vent Panels are highly recommended for RF shielding cabinet ventilation where electromagnetic isolation stands as a core requirement. The cellular structure works as cutoff waveguide barriers to stop external EMI infiltration and reserve sufficient air circulation simultaneously. This balanced performance is essential for data rooms, testing labs and industrial workshops to protect electronic devices from overheating and signal disturbance.
To conclude, Cellular Waveguide Vent Panels integrate strong air ventilation efficiency, multiple size selections and multi-mode signal filtering functions with rigid aluminium or stainless steel framework. Framed cellular design ensures mechanical stability and outstanding EMI shielding ability, becoming a preferred option for RF cabinet ventilation and other key air exhaust projects. With trial samples and diversified specifications for different usage scenarios, these vents act as a trustworthy and efficient solution for air circulation control and EMC management in rigorous industrial environments.
Features:
- Product Name: Honeycomb Waveguide Air Vents
- Feature a honeycomb core design for effective airflow and filtration
- Includes a honeycomb window with frame for enhanced durability and protection
- Provides rf cage ventilation to ensure optimal electromagnetic interference shielding
- Complies with RoHS and REACH standards for environmental safety
- High Quality construction for reliable and long-lasting performance
- Water resistance rating of IP65 or higher, suitable for harsh environments
- Sample available for testing and evaluation
- Easy panel mount installation for convenient integration
Technical Parameters:
| Width | 300mm / 600mm |
| Corrosion Resistance | High |
| Operating Temperature Range | -40°C To 125°C |
| Mounting Type | Panel Mount |
| Water Resistance | IP65 Or Higher |
| Weight | Lightweight |
| Airflow Efficiency | High |
| Transfer Function | All Pass, Low Pass |
| Sample | Available |
| Advantage | High Quality |
Applications:
Jovi Cellular Waveguide Vent Panels with part code 1-CF-4 are tailored for diverse usage settings that demand powerful air exchange paired with dependable protective performance. Produced within China and granted CE certification, these cellular ventilation units excel at steady air circulation inside RF shielded cabinets, achieving efficient EMI suppression without sacrificing smooth air convection.
A major applicable field for Jovi Cellular Waveguide Vent Panels covers housings holding precision electronic devices. Built from premium aluminium or stainless steel, the cellular framework boasts remarkable rust prevention and structural sturdiness, adapting well to outdoor mounting and tough industrial surroundings. Its IP65 or above waterproof grade blocks dust and liquid intrusion effectively, a key advantage to preserve the stability of electronic systems inside telecom signal towers, server rooms and military communication enclosures.
Standard specifications contain 300300 mm, 300600 mm and 600*1200 mm, supporting personalized modification to match diverse air exhaust demands. The built-in microwave attenuating substance carries fixed central frequency parameters to weaken microwave signals efficiently, perfectly fitting RF cabinet ventilation tasks that need strict electromagnetic noise management.
Jovi sustains a monthly output of 2000 units alongside flexible packing choices including wooden crates and bespoke packaging, serving both small orders and large engineering projects steadily. The minimum purchase quantity is a single piece with fast lead time of 5 to 8 working days. Accepted payment methods involve L/C and T/T to accommodate overseas purchasers.
These cellular vent products fit aerospace, communication, national defense and manufacturing industries that prioritize EMC compliance and stable ventilation output. Deployed on shielding enclosures, RF isolation rooms or air inlet panels, Jovi Cellular Waveguide Vent Panels deliver premium and economical service with unit prices from $130 to $380 determined by dimension and personalized adjustments.
In closing, Jovi Cellular Waveguide Vent Panels integrate premium microwave attenuation materials, strong anti-corrosion traits and waterproof capability to supply top-tier ventilation solutions for RF shielding cabins. Solid build quality and broad adaptability render them irreplaceable fittings for all sites requiring safe and efficient air flow while preserving intact electromagnetic shielding effects.
A major applicable field for Jovi Cellular Waveguide Vent Panels covers housings holding precision electronic devices. Built from premium aluminium or stainless steel, the cellular framework boasts remarkable rust prevention and structural sturdiness, adapting well to outdoor mounting and tough industrial surroundings. Its IP65 or above waterproof grade blocks dust and liquid intrusion effectively, a key advantage to preserve the stability of electronic systems inside telecom signal towers, server rooms and military communication enclosures.
Standard specifications contain 300300 mm, 300600 mm and 600*1200 mm, supporting personalized modification to match diverse air exhaust demands. The built-in microwave attenuating substance carries fixed central frequency parameters to weaken microwave signals efficiently, perfectly fitting RF cabinet ventilation tasks that need strict electromagnetic noise management.
Jovi sustains a monthly output of 2000 units alongside flexible packing choices including wooden crates and bespoke packaging, serving both small orders and large engineering projects steadily. The minimum purchase quantity is a single piece with fast lead time of 5 to 8 working days. Accepted payment methods involve L/C and T/T to accommodate overseas purchasers.
These cellular vent products fit aerospace, communication, national defense and manufacturing industries that prioritize EMC compliance and stable ventilation output. Deployed on shielding enclosures, RF isolation rooms or air inlet panels, Jovi Cellular Waveguide Vent Panels deliver premium and economical service with unit prices from $130 to $380 determined by dimension and personalized adjustments.
In closing, Jovi Cellular Waveguide Vent Panels integrate premium microwave attenuation materials, strong anti-corrosion traits and waterproof capability to supply top-tier ventilation solutions for RF shielding cabins. Solid build quality and broad adaptability render them irreplaceable fittings for all sites requiring safe and efficient air flow while preserving intact electromagnetic shielding effects.
