26mm Brass Honeycomb Carbon Air Filters Vent Rf Shielding
| Place of Origin | China |
|---|---|
| Brand Name | Jovi |
| Certification | CE |
| Model Number | 1-CF-4 |
| Minimum Order Quantity | 1 pc |
| Price | $95/pc-$617/pc |
| Packaging Details | in piece and in wooden case |
| Delivery Time | within 10-14 wroking days after receiving payment |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 2000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rf Shield Brass Honeycomb Vent With Frame For Mri Cage,Hot Sale Honeycomb Vent For MRI RF EMC Shielding,Brass Honeycomb Vent For RF Room Shielding Project | Application | Building,MRI EMC RF Room |
|---|---|---|---|
| Shielding Effectiveness | 14KHz-40GHz Meet 100dB | Type | HVAC Systems,Air Conditioning,MRI Room Shielding Installation |
| Frame | Frame Or Unframe,customized,L Type / Z Type/ Without Frame | Nominal Center Frequency | Microwave Absorbing Material |
| Cell Size | Customized,3.2-26 Mm | Size | 300mm X 300mm,Can Be Customized,300x600x25mm/customized |
| Certification | SGS,ISO,CE/SGS/ISO9001 | Transfer Function | All Pass,Low Pass |
| High Light | 26mm honeycomb carbon air filters,Brass honeycomb carbon air filters,Brass honeycomb air vent rf shielding |
||
Product Description

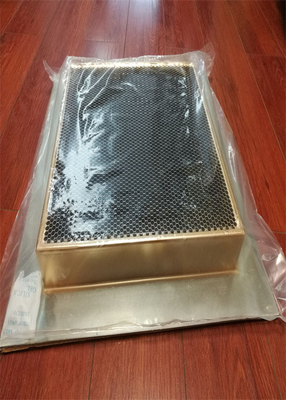

Brass Honeycomb Vent Shielding Effectiveness Honeycomb Waveguide Air Vents
Description:
Honeycomb vent is widely used for MRI room installation ,electromagnetic shielded chamber installation.
Its core cell diameter and different material decide shielded frequency when airflow exchanging between outside
and inside of shielded room.
Smaller hole cell diameter ,thicker brass material are best connection for best shielding frequency .
Brass honeycomb vent 300mm*300mm*25mm*5.2mm is most popular size for shielded room installation .
Details :
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
Application :
The honeycomb filter and Waveguide product can be well used MRI RF Room, EMC EMI Room installation.
FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
3. What is packing ?
It is packed with wooden case.
