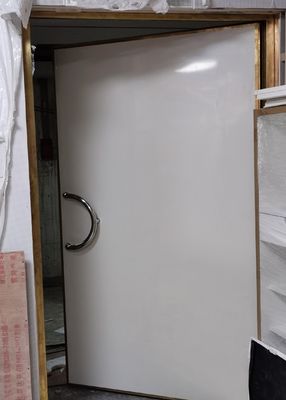

Aluminum RF Shielded Doors with Conductive Seal Sealing Type Providing EMI Protection for Industrial Electronic Applications

Product Description:

RF Shielded Doors are essential components in environments where electromagnetic interference (EMI) must be controlled and minimized. These doors are specifically engineered to deliver superior radio frequency (RF) shielding, ensuring that sensitive equipment and rooms—such as MRI suites—maintain their integrity against unwanted RF signals. In the context of securing MRI rooms, the MRI Room Door serves as a critical element, offering reliable protection and compliance with stringent shielding requirements.
A primary feature of our RF Shielded Doors is the implementation of advanced sealing mechanisms. The doors utilize either an RF Gasket or a Conductive Seal to establish an airtight and electronically continuous barrier. This sealing type is essential for preventing RF leakage, which could otherwise compromise the functionality of sensitive medical devices or laboratory instruments. The RF Gasket or Conductive Seal ensures that the door maintains a consistent and effective shield around the entire perimeter, substantially reducing electromagnetic interference.
The frame material of these doors constitutes another vital aspect contributing to their effectiveness and longevity. Our RF Shielded Doors are constructed using high-quality Steel or Aluminum frames, both of which provide robust structural support and excellent conductive properties. Steel frames offer exceptional strength and durability, making them suitable for high-traffic areas or environments that demand heavy-duty protection. Aluminum frames, conversely, present a lightweight yet sturdy alternative, ideal for applications where weight considerations are important without compromising shielding performance.
Customization represents a key advantage of our RF Shielded Doors. Recognizing that every shielding project has unique requirements, we offer tailored solutions in which the door's position and dimensions can be precisely configured to fit the specific layout of your facility. Whether the installation calls for a particular door size, hinge placement, or integration with existing architectural elements, our doors can be customized to meet those demands seamlessly. This flexibility ensures that the RF Shielded Door not only performs optimally but also integrates aesthetically and functionally within the space.
The opening type of the doors is designed for ease of use and reliability. Our RF Shielded Doors feature a Swing Door mechanism, which enables smooth and convenient access while preserving the integrity of the shielding. The swing door design is preferred in many medical and laboratory settings due to its simplicity, durability, and ability to create a tight seal when closed. This design also facilitates quick ingress and egress, which is critical in environments like MRI rooms where operational efficiency and safety are paramount.
In addition to doors, our product portfolio includes RF Shielded Windows, which complement the doors by providing visibility without compromising shielding performance. These windows are constructed with specialized materials incorporating Copper Foil Shielding, a proven method for blocking RF signals effectively. The copper foil acts as a barrier that reflects and absorbs electromagnetic waves, ensuring that the entire room remains protected from external interference. When combined with RF Shielded Doors, these windows create a fully enclosed shielded environment that is both functional and secure.
Copper Foil Shielding is an industry-standard technique used extensively in both doors and windows to achieve high levels of electromagnetic compatibility. The copper foil's excellent conductivity and shielding properties make it an ideal material for preventing RF leakage. Whether applied as part of the door's internal layers or integrated into window assemblies, copper foil contributes significantly to the overall effectiveness of the shielding solution.
In summary, our RF Shielded Doors are purpose-built for demanding applications such as MRI rooms, laboratories, and other sensitive environments requiring stringent electromagnetic shielding. Featuring RF Gasket or Conductive Seal sealing types, robust Steel or Aluminum frame materials, customizable positions, and convenient Swing Door operation, these doors offer a comprehensive solution to RF interference challenges. Paired with RF Shielded Windows enhanced with Copper Foil Shielding, they provide a complete and reliable shielded environment, ensuring the safety, accuracy, and performance of critical equipment and operations.

Features:

• Product Name: RF Shielded Doors
• Type: EMC Chamber Door, MRI Door
• Sealing Type: RF Gasket or Conductive Seal
• Door Type: Single or Double Leaf
• Material: Steel or Aluminum
• Ideal for use as MRI Room Door
• Incorporates Copper Foil Shielding for enhanced RF protection
• Compatible with RF Shielded Windows for complete shielding solutions
• Designed to ensure superior electromagnetic interference (EMI) shielding performance

Technical Parameters:

Applications:

The Jovi RF Shielded Doors, model 1-cf-7, are expertly engineered to satisfy the demanding requirements of environments where electromagnetic compatibility (EMC) and radio frequency (RF) shielding are of critical importance. Manufactured in China, these doors are constructed from high-quality steel or brass materials, ensuring durability and superior performance. Their robust build is complemented by an advanced sealing system, utilizing either RF gaskets or conductive seals, which guarantees minimal signal leakage and maximum shielding effectiveness.
These RF Shielded Doors are well-suited for a variety of applications, particularly in EMC chambers and MRI rooms. Within EMC testing chambers, the Jovi 1-cf-7 doors provide a secure barrier that prevents external RF interference from affecting sensitive equipment, while also containing emissions from within the chamber. This renders them indispensable in laboratories and testing facilities focused on compliance with international electromagnetic standards. Similarly, in medical settings, these doors function as MRI doors, ensuring that the powerful magnetic fields and RF signals generated by MRI machines do not interfere with other electronic devices or escape the controlled area.
The size of each door is customizable, with standard dimensions of 1.2m by 2.1m, allowing for flexible installation adapted to specific site requirements. The position and design can also be tailored to accommodate various architectural layouts, making them versatile for different building configurations. Additionally, the doors are packaged securely in wooden crates or customized packaging solutions to ensure safe delivery and installation.
Beyond doors, Jovi also offers complementary RF Shielded Windows, designed to integrate seamlessly with the RF Shielded Doors, providing clear visibility without compromising shielding effectiveness. Together, the RF Shielded Windows and RF Shielded Doors create a comprehensive solution for rooms requiring stringent RF isolation, including research laboratories, medical imaging facilities, government and military installations, and industrial applications.
In summary, the Jovi RF Shielded Doors (model 1-cf-7) represent a high-quality, reliable choice for any scenario demanding superior RF shielding performance. Their customizable size and positioning, combined with premium materials and advanced sealing types, make them essential components in EMC chambers, MRI rooms, and any environment where RF containment and isolation are paramount.
