Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-2
Minimum Order Quantity 1 pc
Price $2718-$6791/pc
Packaging Details in piece and in wooden case
Delivery Time 5-8 working days after reeiving payment
Payment Terms L/C, T/T, Western Union
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MRI RF Shieded Doors Wood And Brass Frame Wire Mesh Cabinet 1.2m X 2.1m Application MRI RF Room Installation
Opening Direction Customized Color White
Open Style Swing Type EMC Chamber Door,MRI Door,Entry Doors
Size Customized,According To Customer,2.1m X 1.2m,1.2x2.1M(Door Opening Size) Door Material Copper And Brass,Copper
Packing In Wooden Cases,Special Export Wooden Carton Packing Shielding Performance 10MHz~1GHz Meet 100dB
High Light

Non magnetic RF Shielded Doors

,

RF Shielded Doors nuclear magnetic resonance

,

1GHz radiation shielding doors

Leave a Message
Product Description

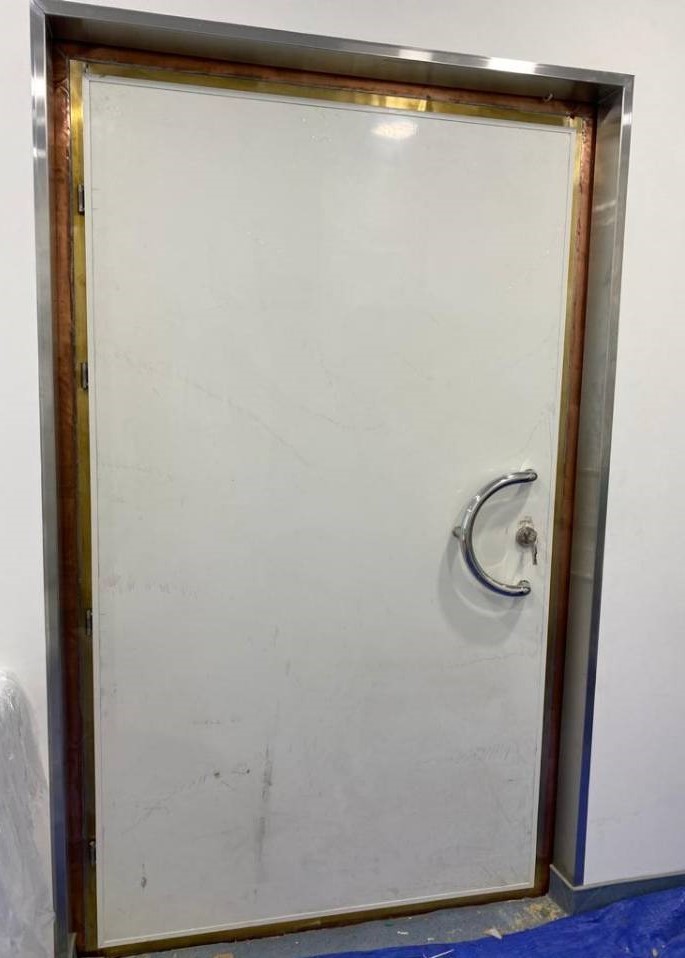

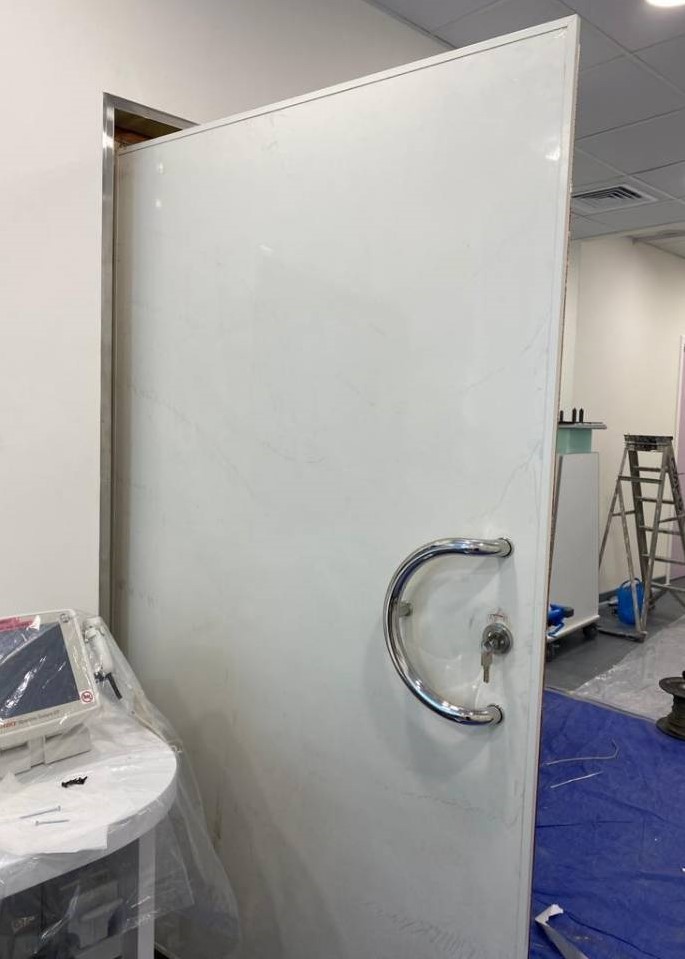

RF Shielded Doors door for hospital nuclear magnetic resonance





Description



1) Standard door entrance size is according to the hospital cart pass



2) Non-magnetic materials



3) Door threshold direction could modify during assemble



4) Easy to repair or replace spare parts High performance with reasonable price



Specification



Size Standard 1.2*2.1 meter /super size 1.4m*2.4m/double size 2m*2m
Material Brass foil covered frame + copper foil + Aluminum plated 1mm coated white+ wooden frame
accessories Frame+lock+handle
Attenuation 10MHz~130MHz meet 110dB
Noise testing 65db after closing door













Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors 0



1) The most widely used electromagnetic shielding door nowadays. Access control system can be added.



2) Using high performance Becu fingerstrips, long service life, easy and convenient to open and close.



3) Hinge rotation, single & double knife edge technology, double shielding effectiveness performance



4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure, unning smooth and light







Application





1) Nuclear magnetic resonance(NMR)



2) Shielding room



3) Communications room



4) Security room and labora



Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors 1









Package



Pack in wooden case



Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors 2



Door direction



Offer different door opening direction to our customers.



Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors 3





Testing report



Non Magnetic RF Shielded Doors Nuclear Magnetic Resonance Radiation Shielding Doors 4







Testing Item



Testing Frequency



Test Point No.

Testing Result

No Shielded Space Signal

(Unit:dBuV)

Shield Room Signal

(Unit:dBuV)

Shield Performance

(Unit:dB)





















RF door 1

Shield

Performance



10MHz

1 106 5 101
2 106 6 100
3 106 5 101
4 106 5 101
5 106 4 102
6 106 5 101
7 106 4 102
8 106 4 102





21MHz

1 108 7 101
2 108 6 102
3 108 7 101
4 108 6 102
5 108 6 102
6 108 6 102
7 108 6 102
8 108 5 103
42MHz 7 110 8 102
8 110 9 101
63MHz 7 112 11 101
8 112 10 102
130MHz 7 115 14 101
8 115 14 101



























































FAQ





Q. What is the door size?



A: We can offer customized size, and in usual 1.2m x 2.1m size is our hot-sale size



Q. What is the structure of the RF Door?



A: Brass foil-covered frame + copper foil + Aluminum plated 1mm coated white+ wooden frame



Q. What accessories can offer?



A: Frame+lock+handle
