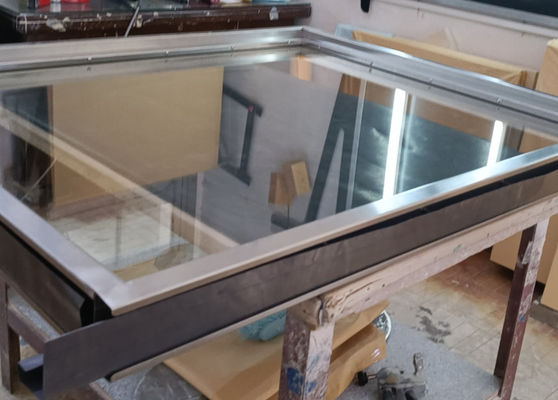

Fireproof X-Ray Shielding Lead Glass with High Shielded Frequency and Custom Size Options

Brand Name	Jovi
Certification	CE
Model Number	1-cf-15
Minimum Order Quantity	1 Pc
Price	$130/pc-$380/pc
Packaging Details	In Wooden Case Or Customized
Delivery Time	5-8 Work Days
Payment Terms	L/C,T/T
Supply Ability	2000 Pcs Per Month

Product Details

Warranty	1 Year	Packing	In Wooden Case
Fire Resistance	High	Service	Technical Support
Size	1200* 800mm	Material	Lead Glass
Power Source	Manual

Leave a Message

Product Description

Product Description:

Radiation Protection Lead Glass is a core professional shielding material specially developed for anti-radiation scenarios. It is widely applied in medical institutions, dental clinics, industrial nondestructive testing workshops and other environments with X-ray and ionizing radiation exposure risks. This precision-engineered lead glass features excellent radiation shielding performance and superior light transmittance, serving as an essential core material for radiation protection observation windows and safety shielding barriers, perfectly balancing workplace safety and operational visibility.

This lead glass panel supports two installation forms: framed and frameless, with highly flexible applicability to meet diverse on-site installation and engineering design requirements. The frameless version features a simple and neat structure, suitable for integrated and concealed installation; the optional supporting stainless steel protective frame provides reinforced structural stability. All customized frames strictly match the lead equivalent of the lead glass panel, ensuring overall consistent shielding performance and completely avoiding radiation leakage risks.

The product boasts a high visible light transmittance of ≥70%, delivering clear and unobstructed viewing vision. Even with powerful radiation shielding capabilities, it does not compromise observation clarity. It fully meets the high-precision operation and observation needs of medical diagnosis, industrial detection and laboratory experiments, effectively improving operational efficiency while ensuring personnel safety.

The mainstream conventional specification is 1200×800mm standard panel with sufficient spot stock. Meanwhile, our factory supports full-size customized production: the standard size range covers 300×400mm to 2400×1200mm. For oversized size requirements beyond the standard range, we adopt professional splicing technology for processing and production, with tight splicing and no shielding dead angle, realizing large-area integral radiation protection.

Our lead glass features ultra-wide environmental adaptability, maintaining stable structural integrity and consistent shielding performance in the temperature range of -20°C to 60°C. It will not deform, age or attenuate in shielding efficiency in low-temperature cold storage environments or high-temperature working scenes, with strong environmental resistance and long service life, adapting to various complex working conditions.

This passive shielding lead glass adopts physical protection principle with no electric power required. It works stably without relying on power supply, completely eliminating potential electrical safety hazards. It can operate normally in power outages, remote sites and other special scenarios, with zero daily power consumption and extremely low later maintenance cost, saving long-term operating expenses for customers.

As a professional manufacturer with 16 years of experience in radiation shielding industry, Jovvi was founded in 2010. Our lead glass products adopt optimized thickness specifications: 8mm-25mm conventional thickness for standard selection, extra thick customized specifications available. All products undergo strict multi-process quality inspection, comply with international safety standards, and have been successfully exported to 105 countries and regions around the world, with stable and reliable product quality.

In conclusion, our radiation protection lead glass integrates high-efficiency radiation shielding, high light transmittance, strong durability and flexible installation. With diverse size customization, matched stainless steel frame support and ultra-stable environmental adaptability, it is a high-cost-effectiveness professional shielding solution for medical, dental, industrial and scientific research radiation protection scenarios, helping all major facilities meet standardized radiation safety management requirements.

Features:

Brand: Jovvi, Model: 1-CF-15, CE certified
Thickness: Standard 8~25mm, ultra-thick customizable; 5mm & 6mm for special custom only
Multiple density options: 4.1 / 4.3 / 4.7 / 5.2 g/cm³
Visible Light Transmittance ≥70%, high-clarity type up to 85%~95%
High fire resistance, stable performance from -20℃ ~ 60℃ working environment
Matching stainless steel frame optional with same lead equivalent
1-year official product warranty
Custom size & splicing service for oversized windows
Professional technical support & installation guidance available

Technical Parameters:

Item	Specifications
Brand & Model	Jovvi 1-CF-15
Certification	CE
Available Density	4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³
Visible Light Transmittance	≥70%, high clarity:85%~95%
Standard Thickness	8mm-25mm, extra thick customizable; 5/6mm custom-only
Standard Size Range	300×400mm ~ 2400×1200mm, oversized via splicing
Lead Equivalent	Customizable, standard option:2.5mmPb
Fire Resistance	High Grade
Working Temp	-20℃~60℃
Warranty	1 Year
Package	Export solid wooden case

Applications:

Medical Healthcare: Hospital radiology, CT room, dental X-ray, fluoroscopy suite observation windows; stop X-ray leakage to protect doctors and patients.
Industrial NDT: Industrial radiographic inspection lab, non-destructive testing workshop shielding window.
Scientific & Nuclear Field: Nuclear research laboratory, radioactive material storage room viewing panel.
Security Inspection: Airport, customs cargo X-ray scanning equipment observation window.

MOQ: 1PC; Unit price: USD130~380 based on thickness, lead equivalent and dimension; Monthly production capacity: 2000PCS; Lead time: 5~8 working days; Payment: T/T, L/C acceptable.

Customization:

Custom thickness: standard 8–25mm, extra heavy thickness upon drawing; 5/6mm for special order only
Custom dimension: standard in stock 300×400~2400×1200mm, oversized finished by splicing
Optional accessory: matched stainless steel mounting frame with corresponding lead equivalent
Custom package & marking as buyer’s requirement

Support and Services:

Our professional engineering team offers full technical service: product selection suggestion, installation instruction, maintenance tips and regulatory compliance consultation. We supply SDS, inspection reports and installation documents together with goods. Any technical problems after purchase get timely reply and solution.

Packing and Shipping:

Packaging: Each lead glass wrapped with anti-scratch foam + corner protection + bubble wrap; packed into solid export wooden crate marked with Fragile/Handle with Care, desiccant inside to avoid dampness.
Shipping: Sea freight / air freight / express available as customer’s request; all cargo insured against damage & loss, tracking number provided once dispatched.

FAQ:

Q1: Brand and model?

A1: Brand Jovvi, Model No.1-CF-15 with CE certificate.

Q2: Factory background?

A2: Jovvi established in 2010, 16 years specializing in radiation shielding, products exported to 105+ countries worldwide.

Q3: What’s standard thickness?

A3: Standard starts from 8mm, regular 8–25mm, thicker customized available; 5mm/6mm only for special customized orders.

Q4: MOQ & price?

A4: MOQ 1PC, price USD130~380/pc subject to detailed specs.

Q5: Delivery & payment term?

A5: Lead time 5~8 working days; acceptable payment: T/T, L/C.

Q6: Can I buy matching stainless steel frame?

A6: Yes, we supply stainless steel frames with same lead equivalent matching your lead glass.
