10mm Radiation Protection Lead Glass X Ray Proof Glass 1000mm X 2000mm Without Frame

  • 10mm Radiation Protection Lead Glass X Ray Proof Glass 1000mm X 2000mm Without Frame
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 2 pcs lead glass
Price USD 1980-2680/pcs
Packaging Details in piece and in wooden case
Delivery Time within 7-10 days after receiving payment
Payment Terms L/C, T/T, Western Union
Supply Ability 3500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 10mm Thickness Radiation Protection Lead Glass For X Ray Room Without Frame Thickness 10mm
Size 800mm X 1000mm / 1000mmx1200mm /1000mm X 2000mm Color Transparent Color
Application Xray Room CT Room Packing In Wooden Case
Shape Square Frame Without Frame
High Light

10mm Radiation Protection Lead Glass

,

Radiation Protection Lead Glass 1000mm x 2000mm

,

x ray proof glass 2.1mm pb
Leave a Message
Product Description

10mm thickness Radiation Protection Lead Glass for X ray room without frame





Quick Detail:



· Size can be with customized

· Thickness 10mm

· Lead equivalent 2.1mm pb

· with frame and without frame both available

· Packing in wooden case

· Low MOQ

· CE Certificate



Description:



We can offer different thickness and customized size of lead glass.

It is widely and mainly used for Xray CT Installation Projects.

To provide viewing of the patient in the x-ray room while providing protection to the operator, lead glass viewing windows can be furnished in the barrier.

Lead glass can be installed in multiple layers so as to provide a lead equivalency to the lead in the wall in which it is installed.



10mm Radiation Protection Lead Glass X Ray Proof Glass 1000mm X 2000mm Without Frame 0



Specification:





                                                                        Equivalent
                                                          Standard Thickness Glass
Lead Glass(mmPb) 1.8-2.0 2.5-2.7 3.0-3.2
Thickness(mm) 9-10 11-12 14-15
X-Ray peak voltage(kv) 150 150 200



We can offer different and customized size lead glass for Xray and CT Room installation.

Surely we can also offer lead door for shielding materials.





8mm

(1.7mmpb)

10mm

(2.1mmpb)

12mm

(2.6mmpb)

15mm

(3.3 mmpb)

18mm

(3.96 mmpb)

20mm

(4.4 mmpb)

25mm

(6.71 mmpb)
200*300 200*300*8 200*300*10 200*300*12 200*300*15 200*300*18 200*300*20 -
300*400 300*400*8 300*400*10 300*400*12 300*400*15 300*400*18 300*400*20 -
400*600 400*600*8 400*600*10 400*600*12 400*600*15 400*600*18 400*600*20 -
600*800 600*800*8 600*800*10 600*800*12 600*800*15 600*800*18 600*800*20 -
600*900 600*900*8 600*900*10 600*900*12 600*900*15 600*900*18 600*900*20 -
1000*800 1000*800*8 1000*800*10 1000*800*12 1000*800*15 1000*800*18 1000*800*20 1000*800*25
1200*800 1200*800*8 1200*800*10 1200*800*12 1200*800*15 1200*800*18 1200*800*20 1200*800*25
1200*900 1200*900*8 1200*900*10 1200*900*12 1200*900*15 1200*900*18 1200*900*20 1200*900*25
1200*1000 1200*1000*8 1200*1000*10 1200*1000*12 1200*1000*15 1200*1000*18 1200*1000*20 1200*1000*25
1200*1200 - 1200*1200*10 1200*1200*12 1200*1200*15 1200*1200*18 1200*1200*20 1200*1200*25
1500*900 - 1500*900*10 1500*900*12 1500*900*15 1500*900*18 1500*900*20 1500*900*25
1500*1000 - 1500*1000*10 1500*1000*12 1500*1000*15 1500*1000*18 1500*1000*20 1500*1000*25
1500*1200 - 1500*1200*10 1500*1200*12 1500*1200*15 1500*1200*18 1500*1200*20 1500*1200*25
1600*1000 - 1600*1000*10 1600*1000*12 1600*1000*15 1600*1000*18 1600*1000*20 1600*1000*25
1600*1200 - 1600*1200*10 1600*1200*12 1600*1200*15 1600*1200*18 1600*1200*20 1600*1200*25
1800*1000 - 1800*1000*10 1800*1000*12 1800*1000*15 1800*1000*18 1800*1000*20 1800*1000*25
1800*1200 - 1800*1200*10 1800*1200*12 1800*1200*15 1800*1200*18 1800*1200*20 1800*1200*25
2000*1000 - 2000*1000*10 2000*1000*12 2000*1000*15 2000*1000*18 2000*1000*20 2000*1000*25
2000*1200 - 2000*1200*10 2000*1200*12 2000*1200*15 2000*1200*18 2000*1200*20 2000*1200*25
2400*1200 - 2400*1200*10 2400*1200*12 2400*1200*15 2400*1200*18 2400*1200*20 2400*1200*25





Notices:



1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.

2. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.

3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,

and is not easy to be installed or stored in a sour or humid environment.

4. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.



Application:



It is mainly used in the manufacturing of optical instruments, art vessels, etc.

It is also known as a medical X-ray radiation-proof lead glass plate in the medical field.

It is mainly used for diagnostic X-ray machine rooms, CT, ECT, PET, ct-pet, and other machine rooms,

as well as observation Windows on the protective screen of protective doors.

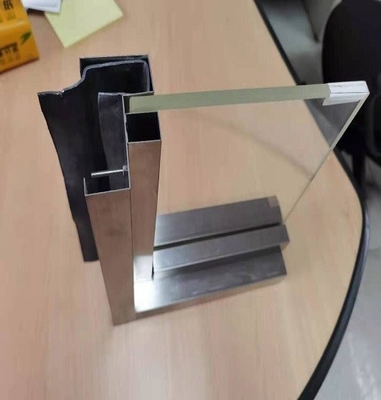

Followed picture is our customer use our big size with 1500mm size x 3000mm size for their CT Rooom installation.



10mm Radiation Protection Lead Glass X Ray Proof Glass 1000mm X 2000mm Without Frame 1





Packing Picture:



The lead glass is packed with in the piece and in wooden case.

10mm Radiation Protection Lead Glass X Ray Proof Glass 1000mm X 2000mm Without Frame 2



FAQ:



Q1. Can I have a sample order for lead glass?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Usually 5-7 working days.



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.



Q5. How to proceed an order for lead glass?

A: Firstly let us know your requirements or size, thickenss and also quantity.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: We can offer sticky label on wooden case with OEM service.
