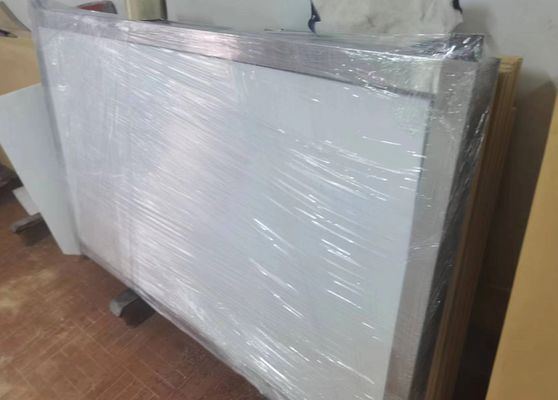

Radiation Shielding Lead Glass 8~25mm Thick 1200×800mm Panel with Custom Oversize and Matching SS Frame

Brand Name	Jovi
Certification	CE
Model Number	1-cf-15
Minimum Order Quantity	1 Pc
Price	$130/pc-$380/pc
Packaging Details	In Wooden Case Or Customized
Delivery Time	5-8 Work Days
Payment Terms	L/C,T/T
Supply Ability	2000 Pcs Per Month

Product Details

Operatingtemperaturerange	-20°C To 60°C	Key Word	High Shielded Frecuency
Size	1200* 800mm	Packing	In Wooden Case
Visiblelighttransmission	≥ 70%	Frame	Without Frame Or With Frame
Transmittance	85% - 95%	Power Source	Manual

Leave a Message

Product Description

Product Description:

Our high-performance Radiation Protection Lead Glass is a professional shielding solution tailored for X-ray and ionizing radiation environments. It is widely applicable in medical treatment, industrial nondestructive testing, and scientific research scenarios. Engineered with premium raw materials and mature production technology, this lead glass delivers stable and efficient radiation shielding performance while retaining excellent light transmittance, ensuring safe operation and clear observation in high-risk radiation working areas.

This lead glass features highly flexible installation configurations, supporting both frameless installation and framed installation. We provide customized stainless steel protective frames with matched lead equivalent, perfectly fitting the lead glass panel. It can be perfectly embedded in radiation protective windows, shielding barriers and observation panels, adapting to various on-site installation standards and engineering requirements with strong compatibility.

To meet different radiation protection grade requirements, our lead glass is available in multiple density specifications: 4.1g/cm³, 4.3g/cm³, 4.7g/cm³ and 5.2g/cm³. The graded density design realizes precise matching of shielding efficiency. Higher density options provide stronger radiation attenuation capacity, allowing customers to select the most suitable product solution according to on-site radiation intensity, balancing shielding effect, product weight and visual clarity.

With excellent environmental adaptability, the lead glass maintains stable structural performance and consistent radiation shielding efficiency in a wide working temperature range of -20°C to 60°C. It will not deform, fade or fail in shielding performance under extreme low temperature or high temperature working conditions, adapting to complex and diverse industrial and medical working environments.

Equipped with High Shielded Frequency technology, this upgraded lead glass can effectively block and attenuate multi-band ionizing radiation including low-energy and high-energy X-rays. Compared with ordinary shielding glass, it has a wider radiation protection coverage and higher shielding efficiency, thoroughly eliminating radiation leakage risks and providing all-round safety protection for on-site operators and precision equipment.

All products adopt standardized precision production and strict quality control procedures. Founded in 2010, Jovvi has 16 years of professional experience in the radiation shielding industry. Our lead glass adopts standard specifications of 8mm-25mm conventional thickness, with ultra-thick customized services available. The standard size ranges from 300×400mm to 2400×1200mm, and oversized windows can be completed by professional splicing process. All products have passed CE certification and are exported to 105 countries and regions worldwide with reliable quality.

We provide full-cycle professional technical support, including product selection guidance, installation instructions, daily maintenance tips and after-sales troubleshooting services. Professional technical teams help customers optimize product usage efficiency and extend service life, effectively reducing operation and maintenance costs. Whether for hospital radiology departments, nuclear laboratories, industrial testing workshops or security inspection sites, our lead glass is the preferred high-stability and cost-effective radiation shielding window material.

Features:

Brand: Jovvi, Model: 1-CF-15, CE certified
Thickness: Standard 8~25mm, ultra-thick customizable; 5mm & 6mm for special custom only
Multiple density options: 4.1 / 4.3 / 4.7 / 5.2 g/cm³
Visible Light Transmittance ≥70%, high-clarity type up to 85%~95%
High fire resistance, stable performance from -20℃ ~ 60℃ working environment
Matching stainless steel frame optional with same lead equivalent
1-year official product warranty
Custom size & splicing service for oversized windows
Professional technical support & installation guidance available

Technical Parameters:

Item	Specifications
Brand & Model	Jovvi 1-CF-15
Certification	CE
Available Density	4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³
Visible Light Transmittance	≥70%, high clarity:85%~95%
Standard Thickness	8mm-25mm, extra thick customizable; 5/6mm custom-only
Standard Size Range	300×400mm ~ 2400×1200mm, oversized via splicing
Lead Equivalent	Customizable, standard option:2.5mmPb
Fire Resistance	High Grade
Working Temp	-20℃~60℃
Warranty	1 Year
Package	Export solid wooden case

Applications:

Medical Healthcare: Hospital radiology, CT room, dental X-ray, fluoroscopy suite observation windows; stop X-ray leakage to protect doctors and patients.
Industrial NDT: Industrial radiographic inspection lab, non-destructive testing workshop shielding window.
Scientific & Nuclear Field: Nuclear research laboratory, radioactive material storage room viewing panel.
Security Inspection: Airport, customs cargo X-ray scanning equipment observation window.

MOQ: 1PC; Unit price: USD130~380 based on thickness, lead equivalent and dimension; Monthly production capacity: 2000PCS; Lead time: 5~8 working days; Payment: T/T, L/C acceptable.

Customization:

Custom thickness: standard 8–25mm, extra heavy thickness upon drawing; 5/6mm for special order only
Custom dimension: standard in stock 300×400~2400×1200mm, oversized finished by splicing
Optional accessory: matched stainless steel mounting frame with corresponding lead equivalent
Custom package & marking as buyer’s requirement

Support and Services:

Our professional engineering team offers full technical service: product selection suggestion, installation instruction, maintenance tips and regulatory compliance consultation. We supply SDS, inspection reports and installation documents together with goods. Any technical problems after purchase get timely reply and solution.

Packing and Shipping:

Packaging: Each lead glass wrapped with anti-scratch foam + corner protection + bubble wrap; packed into solid export wooden crate marked with Fragile/Handle with Care, desiccant inside to avoid dampness.
Shipping: Sea freight / air freight / express available as customer’s request; all cargo insured against damage & loss, tracking number provided once dispatched.

FAQ:

Q1: Brand and model?

A1: Brand Jovvi, Model No.1-CF-15 with CE certificate.

Q2: Factory background?

A2: Jovvi established in 2010, 16 years specializing in radiation shielding, products exported to 105+ countries worldwide.

Q3: What’s standard thickness?

A3: Standard starts from 8mm, regular 8–25mm, thicker customized available; 5mm/6mm only for special customized orders.

Q4: MOQ & price?

A4: MOQ 1PC, price USD130~380/pc subject to detailed specs.

Q5: Delivery & payment term?

A5: Lead time 5~8 working days; acceptable payment: T/T, L/C.

Q6: Can I buy matching stainless steel frame?

A6: Yes, we supply stainless steel frames with same lead equivalent matching your lead glass.
