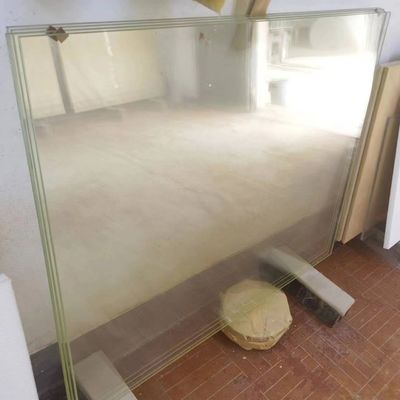

Customizable Radiation Protection Lead Glass with High Shielding Frequency and 30-40% Lead Content for X-ray Shielding
Product Details
| Function | Xray Protection | Usage | CT Xray PET Linec Room |
|---|---|---|---|
| Package | Customized Wooden Cases | Easy To Clean | Yes |
| Dimensions | Customizable | Density | 5.5 G/cm³ |
| Leadcontent | Approximately 30-40% | Frame | Without Frame Or With Frame |
Product Description
Product Description:
Radiation Protection Lead Glass is a professional safety shielding material specially developed for environments with ionizing radiation exposure. Primarily applied in medical diagnostic scenarios including X-ray rooms, CT scan suites, and PET & LINAC rooms, this high-performance lead glass delivers stable and powerful radiation shielding to effectively protect medical staff, operators and patients from radiation hazards. With a standard 2.6mmPb lead equivalent, the glass achieves excellent attenuation of harmful X-rays and gamma rays, fully meeting international medical radiation safety standards.
This lead glass features outstanding broad-spectrum radiation shielding performance, capable of blocking various common radiation frequencies generated by diagnostic imaging equipment. It maintains efficient radiation interception while retaining superior optical clarity, allowing staff to clearly observe real-time diagnostic operations through the shielding window. It perfectly balances core safety performance and practical observation needs, which is essential for professional radiology working environments.
The glass is formulated with 30%–40% high-purity lead content, the core factor supporting its excellent radiation absorption capacity. Lead raw material can effectively absorb and scatter ionizing radiation, and the optimized lead proportion enables the glass to reach a standard 2.6mmPb shielding grade. This parameter means the glass provides the same radiation protection effect as a 2.6mm thick pure lead plate, realizing efficient radiation shielding without redundant volume and excessive weight, achieving the best balance of safety performance and structural practicability.
It is widely installed as observation windows, shielding partitions and protective glass panels in high-radiation medical areas such as X-ray, CT, PET and LINAC rooms. As an indispensable visual isolation barrier, it isolates scattered radiation inside the working area, greatly reduces the cumulative radiation exposure of on-site personnel, and creates a safe and standardized medical diagnosis and operation environment.
In addition to reliable shielding performance, this radiation protection lead glass is designed for long-term medical scene application and daily maintenance. The high-precision polished smooth surface effectively resists dust, stains and dirt adhesion. It can be quickly cleaned and disinfected with conventional medical cleaning agents without damaging the glass structure, optical clarity or inherent radiation shielding performance. It permanently maintains a clear field of view and meets the high hygiene and sterility requirements of medical institutions, extending the overall service life of the product.
Integrating high-efficiency broad-spectrum shielding, scientific high-lead formula and convenient daily maintenance, our radiation protection lead glass is a high-quality shielding solution for professional medical radiation protection. It stably reduces radiation exposure risks without sacrificing observation clarity and usability, fully complying with modern radiological safety specifications.
To sum up, this radiation protection lead glass with 30%–40% lead content and 2.6mmPb standard shielding grade provides comprehensive and reliable radiation safety guarantee for medical imaging rooms. With excellent broad-spectrum anti-radiation performance, ultra-high optical clarity and easy maintenance, it is a practical, durable and cost-effective shielding material, helping medical institutions build standardized and safe radiation working environments.
Features:
-
Product Name: Radiation Protection Lead GlassModel No.: 1-CF-15 | Brand: JOVI | Origin: China | CE Certified
Core Raw Material: High-density lead glass, 30~40% lead oxide content, bulk density: 5.5g/cm³, standard lead equivalent: 2.6mmPb for reliable X-ray & low-energy γ-ray attenuationFrame Option: Frameless / Lead-lined framed optional
Light Transmittance: 85%~95% | Surface: Precision polished, distortion-free vision, easy daily cleaning
Warranty: 1 full year after delivery | MOQ: 1 Piece | Unit Price: USD130~380 (depends on customized dimension & frame selection)
Monthly Production Capacity: 2000PCS | Production Lead Time: 5~8 working days
Payment Term: T/T, L/C at sight | Packing: Custom solid plywood wooden case with foam inner cushion, anti-shock & moisture-proof packaging
Technical Parameters:
Item Parameter Core Function X-ray & ionizing radiation shielding Surface Finish High-gloss polished Lead Equivalent 2.6mmPb Lead Content 30%–40% Density 5.5g/cm³ Light Transmittance 85%~95% Frame Framed / Frameless customizable Standard Packing Custom wooden crate Valid Warranty 12 Months Application Scenarios X-ray, CT, PET, LINAC radiology room, industrial NDT lab, nuclear research lab
Applications:
- Medical Industry: Radiology X-ray room, CT scan suite, nuclear medicine PET room, interventional radiology operating room, diagnostic imaging control booth windows, isolating barrier for doctors & patients
- Industrial & Research: Non-destructive testing (NDT) radiographic workshop, nuclear power auxiliary lab, radioactive material testing laboratory, university radiation research center, industrial flaw detection station
Customization:
- JOVI supports full personalized customization for 1-CF-15 lead glass:
Size: Any customized length & width per project drawing, tolerance controlled precisely;
Configuration: Choose frameless bare glass or complete lead-lined framed assembly;
Special edge finishing & packaging available on special request.
With flexible MOQ of 1PC, competitive tiered pricing from USD130 to USD380, stable monthly output of 2000PCS and 5~8 working days fast delivery, we satisfy small bulk trial orders and large-scale hospital/engineering project orders simultaneously. Flexible T/T & L/C payment modes reduce procurement risk for global buyers.
Support and Services:
Our professional engineering team supplies full lifecycle technical service:Pre-sale: Free technical consultation on lead equivalent matching, installation scheme design, dimension confirmation according to local radiation safety code;
In-sale: Custom cutting, edge finishing and pre-installation technical guidance;
After-sale: 1-year official warranty, troubleshooting for product clarity or shielding-related questions, regular maintenance & cleaning operation guide for customers’ on-site staff.
We recommend periodic surface inspection and routine cleaning to keep glass’s transmittance and shielding performance long-term stable. Full product certification documents (CE, factory test report) can be provided for project bidding & local customs clearance.
Packing and Shipping:
Each lead glass panel is wrapped with thick anti-scratch foam firstly to avoid surface scratch and collision damage during transit. Then loaded into reinforced custom wooden crate with corner protectors and inner filling foam to fix glass tightly against shaking & impact. All crates are bound with metal strapping and marked with FRAGILE, HANDLE WITH CARE, KEEP UPRIGHT warning labels; extra moisture-proof wrapping prevents damp damage in long-distance ocean/land transport.We cooperate with experienced logistics carriers specialized in oversized fragile cargo; full tracking number will be sent once goods dispatched. Please inspect package condition upon receiving; contact our customer support promptly if any transport damage occurs for after-sales solution.
FAQ:
Q1: Brand & Model?
A1: Brand JOVI, Model: 1-CF-15 Radiation Protection Lead Glass.
Q2: Production Origin?
A2: Manufactured in China with strict factory quality inspection before shipment.
Q3: Available Certification?
A3: CE certification compliant with EU radiation protection standards, factory inspection report available upon request.
Q4: MOQ & Price Range?
A4: Minimum order quantity 1 piece, unit price USD130~380 based on customized size and framed/frameless option.
Q5: Delivery Lead Time & Packing?
A5: 5~8 working days after deposit confirmed; packed in customized solid wooden case for safe worldwide shipment.
Q6: Accepted Payment?
A6: Flexible payment: T/T Telegraphic Transfer and L/C Letter of Credit.
Q7: Monthly Production Output?
A7: Max monthly supply up to 2000 pieces to fulfill bulk order demand.
