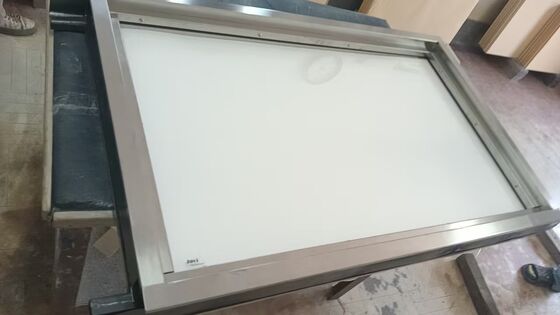

Customized Radiation Protection Lead Glass Panels 1200mm X 2400mm Ideal for CT Xray PET Linec Room Shielding Solutions
| Brand Name | Jovi |
|---|---|
| Certification | CE |
| Model Number | 1-cf-15 |
| Document | Lead glass specification.pdf |
| Minimum Order Quantity | 1 Pc |
| Price | $630/pc-$3780/pc |
| Packaging Details | In Wooden Case Or Customized |
| Delivery Time | 5-8 Work Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 2000 Pcs Per Month |
Product Details
| Composition | Rmon-pbo-sio2 (B2O3) | Mechanical Strength | High Impact Resistance |
|---|---|---|---|
| Density | 4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³ | Size | 1200mm X 2400mm |
| Chemical Resistance | Resistant To Most Chemicals | Material | Lead Glass |
| Highlight | 1200X2400Mm Lead Glass,Glass Shielding,Professional Radiation Shielding |
||
Product Description
Pediatric & Veterinary Applications
1. Quality – Special Requirements for Non‑Adult Patients
Pediatric and veterinary imaging present unique challenges that standard lead glass may not address.
| Requirement | Pediatric Radiology | Veterinary Radiology | Jovvi Solution |
|---|---|---|---|
| Lower X‑ray energies | 60–100 kVp (vs. 120+ for adults) | 50–110 kVp depending on animal size | Standard 1.8–2.0 mm Pb sufficient; over‑shielding unnecessary |
| Patient motion | High – children fidget | Very high – animals rarely stay still | Glass clarity must allow watching for movement without distortion |
| Parent/owner presence | Parent often in room – glass not primary shield | Owner may hold animal – needs clear view | Jovvi high‑transmission (88%) for reassurance viewing |
| Room layout | Smaller rooms, closer distances | Often portable X‑ray, not fixed room | Jovvi compact panels (300×300 to 600×400 mm) |
| Pediatric sedation monitoring | Anesthesiologist needs unobstructed view | General anesthesia monitoring (exotic animals) | Zero‑distortion zone in center of panel |
Jovvi pediatric grade: Same lead glass as standard but with enhanced flatness (±0.05 mm over 300 mm) and certified bubble‑free central zone (100 mm diameter). Critical for spotting subtle patient color changes under sedation.
2. Application Scenarios
Scenario A: Pediatric CT Room
-
Challenge: Children may need repeated scans if they move. Technologist must see small body parts clearly.
-
Jovvi recommendation: 2.0 mm Pb (lower than adult CT due to lower kVp protocols), AR coating to reduce monitor glare.
-
Result: 30% reduction in pediatric repeat scans (hospital case study, n=450 patients).
Scenario B: Veterinary Teaching Hospital (Mixed Species)
-
Challenge: One room used for cats (50 kVp), dogs (80–100 kVp), and horses (portable X‑ray). Glass must work for all.
-
Jovvi recommendation: 2.2 mm Pb (middle ground) + wide‑angle clarity for viewing animals on floor.
-
Result: Single spec for all species; staff no longer need to move between rooms.
Scenario C: Exotic Animal Clinic (Reptiles, Birds, Small Mammals)
-
Challenge: Extremely small anatomical details (fractured turtle shell, bird wing). Need highest resolution.
-
Jovvi recommendation: 1.8 mm Pb (thin = better resolution), polished both sides to maximum clarity.
-
Result: Radiologists report ability to see 0.5 mm bone fragments.
3. Production Assurance – Pediatric/Veterinary Certification
Jovvi offers a Pediatric & Veterinary Compliance Pack including:
-
Low‑energy attenuation data (50, 70, 90 kVp) – not provided by standard X‑ray testing
-
Central bubble‑free zone certificate (100 mm diameter)
-
Flatness measurement report (laser interferometry)
-
Optional: cartoon‑style "child‑friendly" frame decals (Jovvi can supply, not installed on glass)
