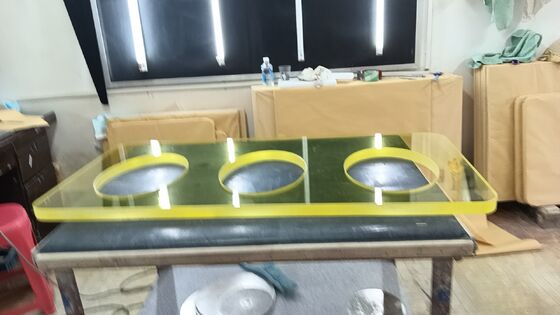

Chemical resistance Resistant To Most Chemicals Radiation Protection Lead Glass Designed for X Ray Rooms and Nuclear Medicine Environments
| Brand Name | Jovi |
|---|---|
| Certification | CE |
| Model Number | 1-cf-15 |
| Document | Lead glass specification.pdf |
| Minimum Order Quantity | 1 Pc |
| Price | $2130/pc-$6380/pc |
| Packaging Details | In Wooden Case Or Customized |
| Delivery Time | 5-8 Work Days |
| Payment Terms | T/T |
| Supply Ability | 2000 Pcs Per Month |
Product Details
| Density | 5.5 G/cm³ | Composition | Rmon-pbo-sio2 (B2O3) |
|---|---|---|---|
| Transmittance | 85% - 95% | Material | Lead Glass |
| Size | Customized/1200mm X 2400mm | Operating Temperature | 0°C To 50°C |
| Highlight | Glass X-Ray,Premium X-Ray Lead Glass,Professional Radiation Emi |
||
Product Description
Extreme Environments: High Temperature, Humidity, and Radiation Dose
1. Quality – Built for Harsh Conditions
Some radiology and nuclear medicine facilities operate in non‑standard environments: tropical climates, desert regions, high‑altitude, or high‑dose research facilities.
| Environmental Parameter | Jovvi Extreme Grade | Standard Grade |
|---|---|---|
| Operating temperature | 0°C to 50°C | 10°C to 35°C |
| Humidity tolerance | 0–95% RH (non‑condensing) | 20–80% RH |
| UV exposure | 5 years equivalent (accelerated testing) | Not tested |
| Gamma dose (cumulative) | 10⁷ mGy (no browning) | 10⁶ mGy (nuclear grade) |
| Altitude | Sea level to 4,000 m | Sea level to 2,000 m |
Jovvi Extreme Grade uses:
-
Enhanced CeO₂ (1.5 wt% – 50% more than nuclear grade)
-
Special edge sealant (silicon‑modified polyurethane, resists hydrolysis)
-
Anti‑fog coating on both sides (for high‑humidity environments)
2. Application Scenarios
Scenario A: Tropical Hospital (Southeast Asia)
-
Challenge: 90% humidity, monsoon season. Standard glass developed condensation between glass and frame.
-
Jovvi solution: Extreme Grade with desiccant‑filled frame and breather valve.
-
Result: No condensation after 2 years.
Scenario B: Desert Clinic (Middle East)
-
Challenge: 45°C ambient, dust storms. Glass surface temperature reached 60°C. Thermal stress cracked previous glass.
-
Jovvi solution: Extreme Grade with higher thermal shock tolerance (50°C differential) and dust‑sealed frame.
-
Result: 3 years without failure.
Scenario C: Research Cyclotron Facility (High‑dose Area)
-
Challenge: Glass located near 30 MeV proton beam (neutron activation concerns). Cumulative gamma dose 5× higher than clinical PET‑CT.
-
Jovvi solution: Extreme Grade + quarterly inspection service. Additional neutron shielding recommended (boron‑loaded frame).
-
Result: No browning after 18 months; still within ΔE < 2.0.
3. Production Assurance – Extreme Environment Certification
Jovvi Extreme Grade includes:
-
Thermal cycling test report (–10°C to +60°C, 50 cycles, no failure)
-
Humidity test (95% RH, 30 days, no edge degradation)
-
UV exposure test (500 hours, no yellowing)
-
High‑dose gamma test (10⁷ mGy, ΔE < 3.0)
Lead time: 45 working days (special glass composition).
