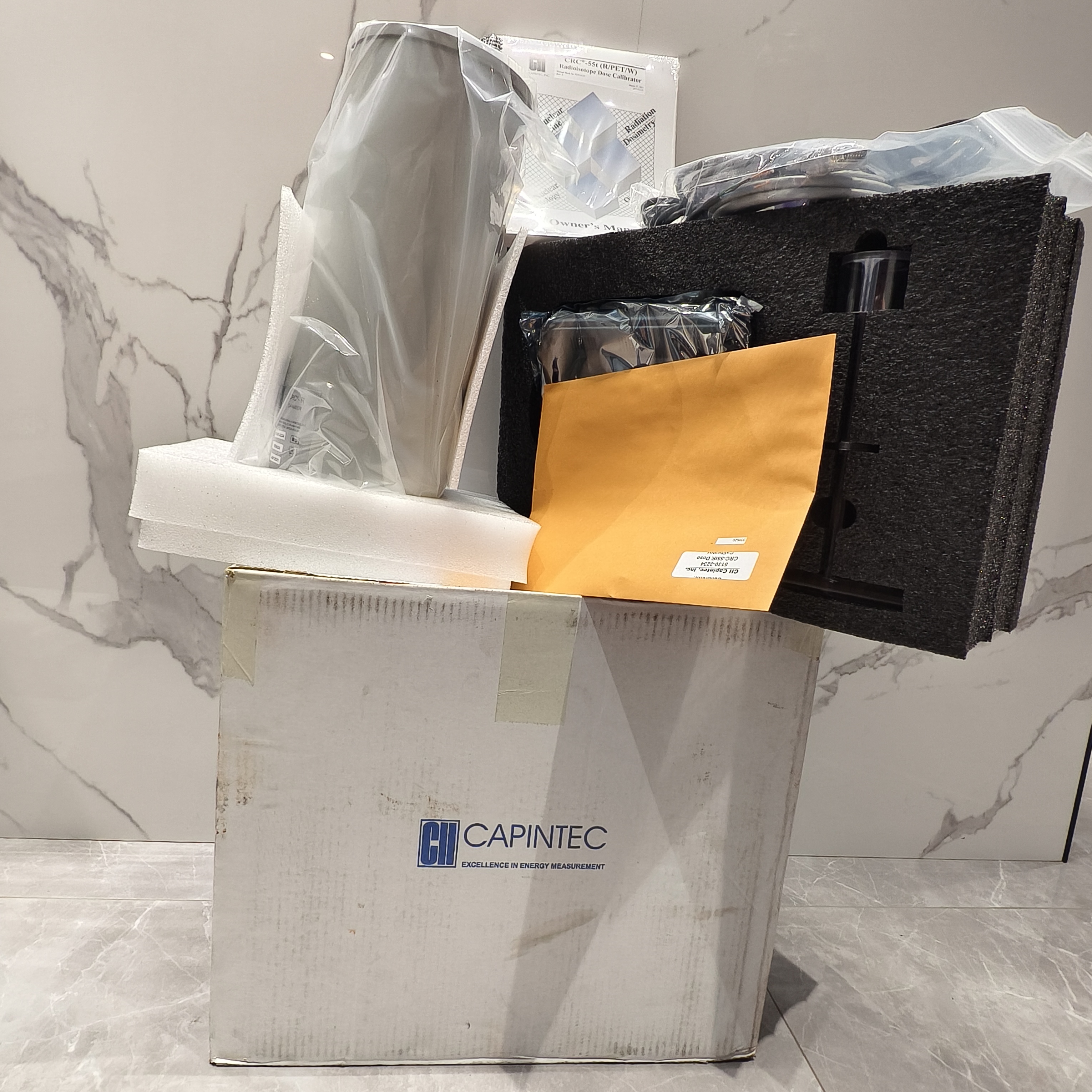

Lead-Shielded Dose Calibrator for Nuclear Medicine Hot Cell Safety

The Lead-Shielded Dose Calibrator addresses a common problem in busy hot cells: background radiation from stock vials, waste containers, and previously prepared doses can interfere with accurate measurement of new doses. Standard dose calibrators rely on the hot cell's external shielding to protect against room background, but they receive no protection from sources inside the cell. This instrument incorporates a 5 mm lead shield surrounding the ionization chamber, reducing the contribution of internal background radiation by a factor of 10 or more. The shield is integrated into the detector housing, adding only 20 mm to the overall diameter while preserving compatibility with standard hot cell ports. The result is stable, accurate measurements even when the hot cell contains multiple high-activity sources.

The Lead-Shielded Dose Calibrator is designed for nuclear medicine departments with high-activity hot cells where multiple doses are prepared simultaneously. Typical applications include centralized radiopharmacies that prepare doses for multiple hospitals, nuclear medicine departments with back-to-back patient scheduling where several doses are in the cell at once, and theranostic centers that prepare both diagnostic and therapy doses from the same stock vial. The instrument is particularly valuable for measuring low-activity samples (below 1 mCi) in hot cells that also contain high-activity sources (multiple curies). Additional applications include measuring residual activity in empty vials for waste characterization, performing wipe tests inside the hot cell, and quantifying low-activity quality control samples.

The Lead-Shielded Dose Calibrator reduces background interference by a factor of 10–20 compared to unshielded instruments. In a typical hot cell containing 5 curies of Tc-99m stock and several patient doses, the background radiation at the measurement position may be 50–100 μR/hr — enough to cause measurement errors of 10–20% for low-activity samples. The integrated lead shield reduces this background to 5–10 μR/hr, allowing accurate measurement of samples as low as 1 μCi. The shield is constructed of virgin lead with a minimum thickness of 5 mm, providing effective attenuation for gamma energies up to 300 keV (covering Tc-99m, I-123, Lu-177, and most diagnostic isotopes). For higher energies (F-18 at 511 keV, I-131 at 364 keV, Cs-137 at 662 keV), the shield provides partial attenuation that nonetheless significantly improves signal-to-background ratio. The ionization chamber is positioned at the center of the lead shield, with sample access through a shielded well that maintains continuous protection during measurement. The instrument's remote display unit shows both the raw measurement and an estimate of the background contribution, allowing the user to assess measurement confidence. For ultra-low-activity measurements (below 10 μCi), the instrument can perform a background subtraction measurement before sample insertion, storing the background value and automatically subtracting it from subsequent readings. The lead shield does not compromise the instrument's dynamic range: measurements remain accurate from 1 μCi to 10 Ci, with auto-ranging that adjusts sensitivity appropriately. The instrument includes all standard features: a nuclide library of 20+ isotopes, vial/syringe/capsule geometry selection, data logging for 500+ measurements, USB export, and optional printer output. For nuclear medicine departments, the primary benefit of the lead-shielded design is improved low-activity measurement accuracy in busy hot cells. Instead of waiting for other doses to decay or removing high-activity sources before measurement (both of which disrupt workflow), technicians can measure low-activity samples directly with confidence. The shield also protects the ionization chamber from radiation damage, extending instrument lifespan in high-activity environments. For departments performing waste characterization or contamination surveys, the ability to measure microcurie-level activities inside the hot cell simplifies compliance with regulatory release limits. The Lead-Shielded Dose Calibrator delivers accurate measurements in the challenging environment of a busy radiopharmacy.
