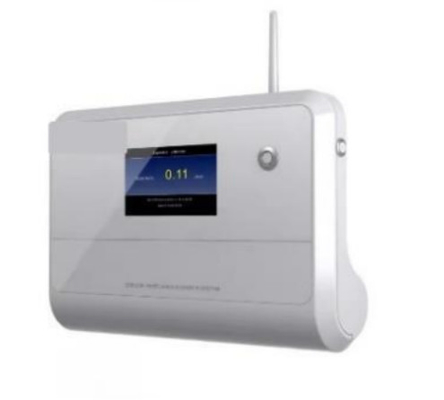

White Dose Rate Meter Uses Dual Gm Tube Detectors For Environmental Radiation Monitoring

Product Description:

The 1011 (Basic) Dose Rate Meter uses dual GM tube detectors for environmental radiation monitoring, with a wider measuring range and more stable and reliable results.

The instrument adopts large-size touch screen to realise data acquisition, processing, storage, transmission and management, the visualisation interface is beautiful, simple to operate and easy for users to learn and master. All the data can be transmitted to the central control computer system in real time. 1011 (basic type) dose rate instrument uses double GM tube detectors for environmental radiation monitoring, which has a wider measuring range and more stable and reliable results. The data can be summarised and stored for viewing by relevant personnel at any time.

Applications:

X, γ dose rate meter is mainly used for continuous monitoring of X, γ rays in the environment, can be used individually, flexible placement in the office, but also can be connected to a number of devices for radiation monitoring in a specific area of the network, real-time to provide the environmental dose information for the monitoring centre to provide a basis for the data of the management of the decision-making. It can issue sound and light alarms according to the predetermined alarm thresholds to warn the site staff and ensure personnel safety.

Customization:

Product detail:

1 Hardware Components

1.1 Detector Module

1.1.1 2 GM tubes

1.2 Display Mode

1.2.1 Liquid Crystal Display Touch Screen

1.2.2 Size 4 inches

1.2.3 Functions Real-time data display, function setting, data access, output, etc.

1.3 Alarm indication

1.3.1 Two levels of audible alarm can be preset.

1.3.2 Two levels of optical alarms can be preset.

2 Software application

2.1 Data acquisition and display

2.1.1 Real-time data acquisition

2.1.2 Real-time data display

2.1.3 Function setting

2.2 Data storage and access

2.2.1 With automatic data storage function

2.2.2 Maximum storage space 8G

2.2.3 With local access to the data function

2.2.4 Data output function

2.2.5 Online automatic data transmission function Real-time uploading of monitoring data to the central server.

3 Performance Parameters

3.1 Measuring ray types X, γ rays

3.2 Measuring range 0.1uSv/h-1Sv/h

3.3 Relative error ≤ ± 15%

3.4 Energy response 30keV~3 MeV

3.5 Response time ≤3s

3.6 Measurement mode Energy counting compensation

4Working environment and size

4.1 Temperature range -25~50°C

4.2Humidity range ≤95%.

4.3 Power supply AC220V 50Hz, ≤95%.

4.4 Dimension and weight (L*W*H kg)

5.Transmission method Wired RS-485/network cable/WIFI/4G
