xProduct Details
| Warranty | 1 Year | Feature | Magnetic Screen |
|---|---|---|---|
| Design Style | Industrial | Door Material | Aluminum Alloy,Brass,Copper And Brass |
| Shielding Performance | 14KHz-40GHz,10MHz~1GHz Meet 100dB,14KHz-40GHz With 75-120dB | Door Type 1 | Manual Door,Electric Door |
| Highlight | manual mri doors,rf shielding mri doors,faraday cage installation shielded doors |
||
Product Description

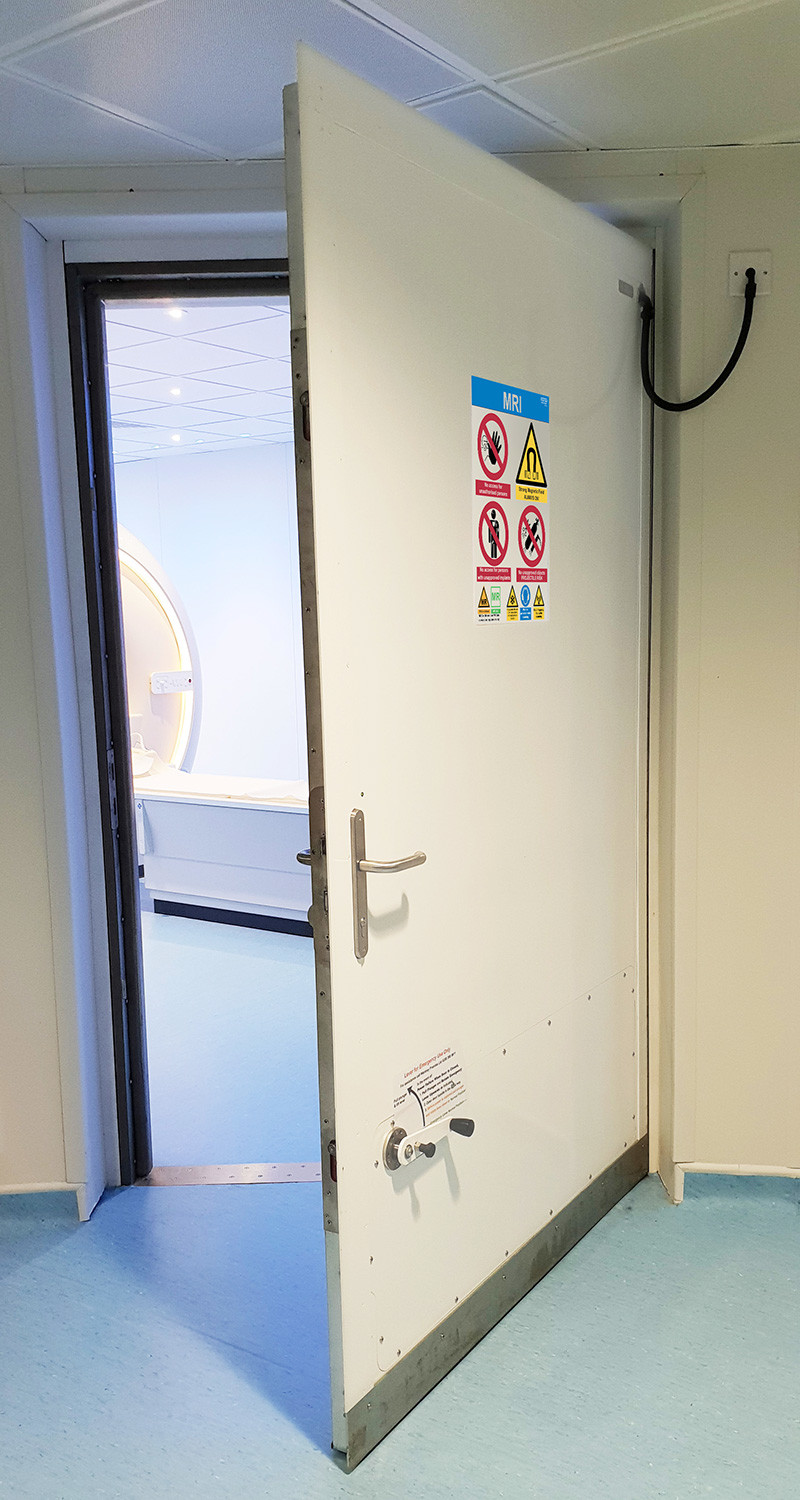

Mri Rf Shielding Rf Shielded Doors Faraday Cage Installation
The standard single leaf door size gives a clear opening 1183mm wide x 2100mm high. Doors are faced and edged with aluminium with a white powder coat finish. They contain a continuous membrane throughout the door for excellent sound attenuation.
The power operated self-latching system has a multi-layer stainless-steel link mesh wrapped around a flexible acoustic seal fitted to the jambs and head of frame. An operation light indicates if the door is locked or unlocked. A manual override handle is included in the event of a power failure.
| Door Name | Frame Size | Door Entrance Size | Notes |
| Manual Shielding Door | 2400*1400 | 2000*1000 | |
| 2400*1600 | 2000*1200 | ||
| 2400*1900 | 2000*1500 | ||
| Pneumatic Shielding Door | 2400*1400 | 2000*1000 | |
| Auto Shielding Door | 2400*1400 | 2000*1000 | Button Control Open and IC Card Reader Control Open can be accepted |
