7ft X 4ft 200kg Rf Shielded Doors For Mri Room Shielding Room Rf Cage

  • 7ft X 4ft 200kg Rf Shielded Doors For Mri Room Shielding Room Rf Cage
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-2
Minimum Order Quantity 1 pc
Price $2668-$2800/pc
Packaging Details in piece and in wooden case
Delivery Time 5-8 working days after reeiving payment
Payment Terms L/C, T/T
Supply Ability 2000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 7ft X 4ft 200kg RF Shielded Doors For MRI Room Shielding Room RF Cage Size Customized
Shielding Performance 10MHz~1GHz Meet 100dB Type MRI Door
Packing Wooden Case Open Style Swing
Application RF Cage MRI Room NMR Room Material Copper, Brass, According To Customer
High Light

7ft x 4ft rf shielded doors

,

swing open rf shielded doors

,

radio frequency cage shielded doors
Leave a Message
Product Description

7ft x 4ft 200kg RF Shielded Doors For MRI Room Shielding Room RF Cage​ ​





Description:





1) Using high performance Becu fingerstrips, long service life, easy and convenient to open and close.



2) Hinge rotation, single & double knife edge technology, double shielding effectiveness performance









RF-shielded doors are widely used for MRI room installation and also RF Cage construction.



They are essential part for the whole shielding frequency of MRI room.



You can install quickly and conveniently!





Specification:





Size

Standard 1.2m*2.1m 4feets*7feets /Super size 1.4m*2.4m

/Double leaves MRI door 2m*2m
Material 0.1mm Brass foil covered door frame +copper foil covered whole door leaf inside +1mm Aluminum plated coated white +fingers and noise foam in four sides of door edges
Accessoreis Frame +lock + handle
Attenuation

shielded frequency 110dB in band 10MHz-130MHz for 1.5T/3T MRI machine(philips+united imaging)

65dB noise after closing MRI door in 3T MRI rioom





Application:





1) MRI room



2) Shielding room



3) Communications room

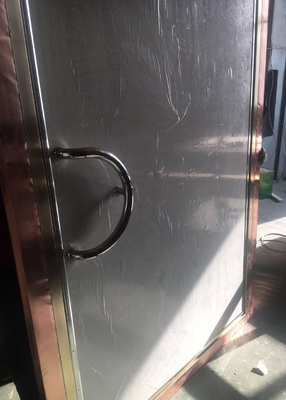

7ft X 4ft 200kg Rf Shielded Doors For Mri Room Shielding Room Rf Cage 0









7ft X 4ft 200kg Rf Shielded Doors For Mri Room Shielding Room Rf Cage 1



We can offer different door opening direction to our customers.



7ft X 4ft 200kg Rf Shielded Doors For Mri Room Shielding Room Rf Cage 2



D: Testing Report









Testing Item



Testing Frequency



Test Point No.

 Testing Result

No Shielded Space Signal

(Unit:dBuV)

Shield Room Signal

(Unit:dBuV)

Shield Performance

(Unit:dB)





















RF door 1

Shield

Performance



10MHz

 1 106 5 101
2 106 6 100
3 106 5 101
4 106 5 101
5 106 4 102
6 106 5 101
7 106 4 102
8 106 4 102





21MHz

 1 108 7 101
2 108 6 102
3 108 7 101
4 108 6 102
5 108 6 102
6 108 6 102
7 108 6 102
8 108 5 103
42MHz 7 110 8 102
8 110 9 101
63MHz 7 112 11 101
8 112 10 102
130MHz 7 115 14 101
8 115 14 101















































































































FAQ



Q. What is the Door delivery time?



A: After 10-12 working days after receiving your full payment.



Q. What is the door size?



A: We can offer customized size, and in usual 1.2m x 2.1m size is our hot-sale size



Q. What is the structure of the RF Door?



A: Brass foil-covered frame + copper foil + Aluminum plated 1mm coated white+ wooden frame
