10MHz 4ft X 8ft Rf Shielded Doors Brass Mesh Cabinet Installation Pneumatic Copper Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Brass Frame + Copper Foil + White Fireproof Board + Threshold | Product Name | MRI Door |
|---|---|---|---|
| Material | Copper | Size | 1.2*2.1m |
| Application | MRI RF Room | Opening Direction | Customized |
| Package | Wooden Case | Shielding Performance | 10MHz~130MHz |
| Delivery Time | 15 Working Days | ||
| High Light | 4ft x 8ft rf shielded doors,10mhz rf shielded doors |
||
Product Description

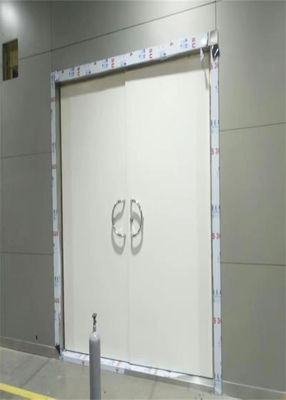

RF Shielded Doors Installation Door Inside Shielding Copper Metal
1. The most widely used electromagnetic shielding door nowadays.
Access control system can be added.
2. Using high performance Becu fingerstrips, long service life, easy
and convenient to open and close.
3. Hinge rotation, single & double knife edge technology, double shielding effectiveness performance
4.Two-point latching mechanism for tight, locking seat frame with roller
bearings structure, running smooth and light
Specification
|
Size
|
Standard 1.2*2.1 meter
|
|
Material
|
Brass frame + copper foil + white fireproof board + threshold
|
|
Flange
|
With a copper flange for shielding
|
|
Attenuation
|
10MHz~1GHz meet 100dB
|
|
Packing
|
Wooden packing or customized
|
|
Shipping
|
By sea or customized
|
2. Product features
1) The most widely used electromagnetic shielding door nowadays. The access control system
can be added.
2) Using high- performance Becu finger strips, long service life, easy and convenient to open
and close.
3) Hinge rotation, single & double knife-edge technology, double shielding
effectiveness performance.
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure,
running smooth and light.
We can offer a complete door with the leaf, frame, metal handle, locks and keys.
You can start your construction directly after receiving the goods.
3. Advantages
1) Standard door entrance size is according to the hospital cart pass
2) Non- magnetic materials
3) Door threshold direction could modify during assemble
4) Easy to repair or replace spare parts
5) High performance with reasonable price
4. Shielding performance of brass material MRI shield door
|
Magnetic Field
|
15MHz
|
100dB
|
|
Electric Field
|
10MHz
|
100dB
|
|
30MHz
|
100dB
|
|
|
Plane Wave
|
30MHz
|
100dB
|
|
100MHz
|
100dB
|
|
|
130MHz
|
100dB
|
FAQ:
Q1. How do I pay for my purchase order?
A: We can accept the following payment methods: T/ T, L/ C, D/ A, D/ P, and we also can accept Westernunion
If you want another payment please contact us.
Q2. Is there a tracking number for my item?
A: Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with the online track,
you can view the shipment status on the website.
Q3. How does your factory do related quality control?
A: Quality is a top priority. We attach great importance to quality control from the very beginning of manufacturing.
