Ventilation Panels Honeycomb Aluminium Sheet Core For Faraday Cages
Place of Origin | China |
---|---|
Brand Name | Jovi |
Certification | CE |
Model Number | 1-CF-4 |
Minimum Order Quantity | 1 pc |
Price | $95/pc-$617/pc |
Packaging Details | in piece and in wooden case |
Delivery Time | within 10-14 wroking days after receiving payment |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 2000 pcs per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Ventilation Panels Aluminum Honeycomb Core Faraday Cages | Type | HVAC Systems,Air Conditioning,MRI Room Shielding Installation |
---|---|---|---|
Frame | Frame Or Unframe,customized,L Type / Z Type/ Without Frame | Nominal Center Frequency | Microwave Absorbing Material |
Cell Size | Customized,3.2-26 Mm | Size | 300mm X 300mm,Can Be Customized,300x600x25mm/customized |
Usage | Outdoor,HVAC System | Input Impedance | Microwave Absorbing Material |
Highlight | ventilation honeycomb aluminium sheet,faraday cages honeycomb aluminium sheet |

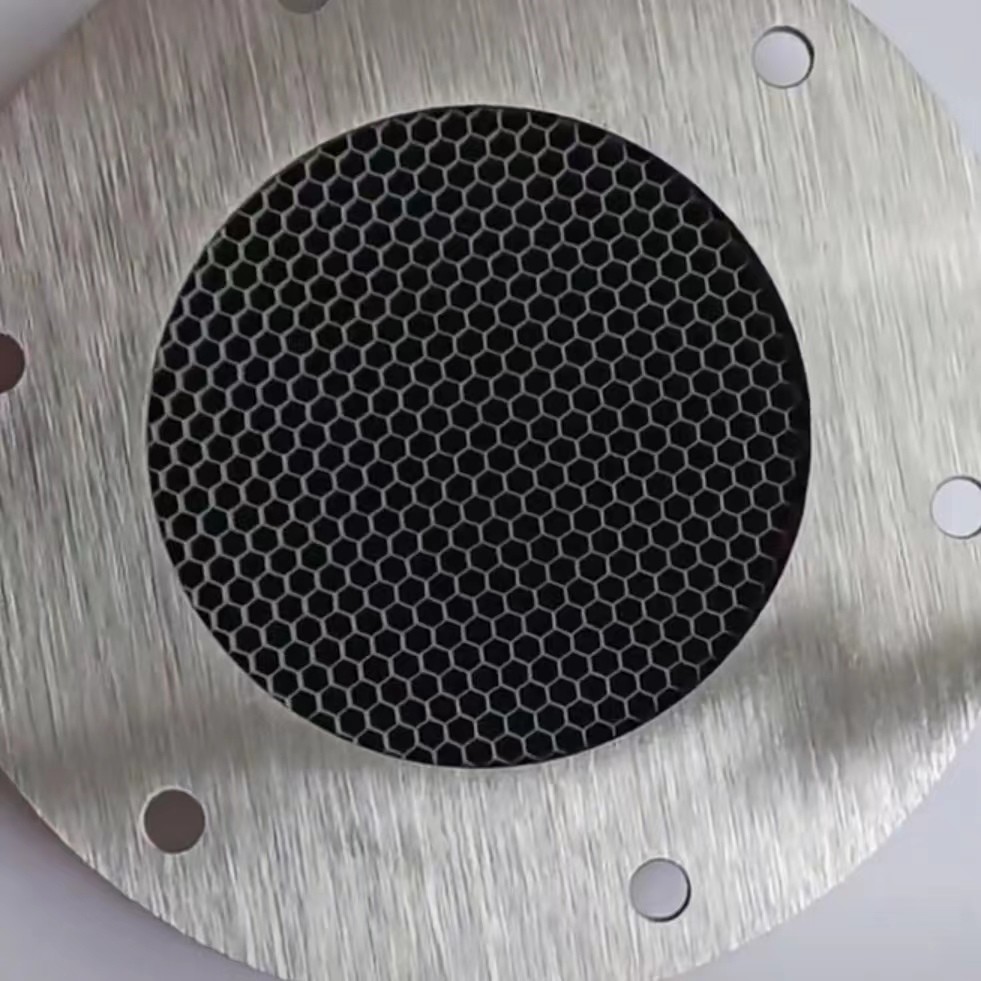

Ventilation Panels Aluminum Honeycomb Core Faraday Cages
1.Specification:
A range of low-cost EMC vents for use with standard fan size fans.
The aluminium honeycomb fan shield series is designed to provide EMI shielding
and maximum airflow without degrading the fan output.
These vents provide a low-cost option to perforated metal when airflow rates are critical.
An aluminium frame is fitted with one layer of 6.35, 12.7 or 25.3 mm thick honeycomb material
and an optional Amucor conductive gasket to ground the honeycomb to the metalwork.
Holland Shielding Systems B.V. stocks aluminium Honeycomb Fan Shield in almost all sizes corresponding
to industry-standard fans with standard 4-hole mounting (See table below for the standard sizes).
2. Details :
material | brass /Tin plated steel | ||
core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
3.Shielding performance
Shielding performance is achieved from 1/8 cell aluminium honeycomb panels with compressed edges
mounted in a square-shaped flat Mu-ferro plate with a circular cut-out on the inside.
The contact with the housing is made with an amucor shielding gasket cut into the correct shape of the Honeycomb fan shield.
Performance below has been measured with honeycomb specifications 1/8 Cell size, 1/4 Thick.
4.FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
3. What is packing ?
It is packed with wooden case.
