X Ray 8mmpb Shielding Radiation Protection Lead Glass 1000*800

Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 1 PC
Price USD200-2167/PC
Packaging Details Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case.
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 3000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name PET-CT Rooms 8mmPb Radiation Protection Lead Glass Shielding 1000*800 Function CT PET Xray Protection
Destiny 4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³ Frame With Frame Or Without Frame
Lead Equivalent 2mmPb-8mmPb Size 1000mm*800mm*10mm 12mm 15mm
High Light

shielding xray radiation protection lead glass

,

1000*800 radiation protection lead glass

,

1000*800 radiation shielding glass

Leave a Message
Product Description

X-Ray Lead Glass Radiation 8mmpb Shielding 1000*800



Description:

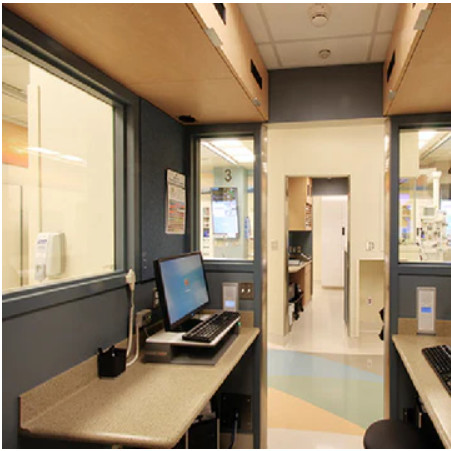

Radiation shielding lead glass is installed in x-ray room windows to help protect against radiation exposure while allowing optimal visibility into the room while procedures are being performed.

This is vital to ensure that medical personnel are kept safe from harmful radiation. Lead glass is also used in other applications where radiation is present, such as in nuclear medicine. In these cases, lead glass is used to shield against gamma rays, which are even more penetrating than x-rays. Lead lined frames are also an essential component of radiation shielding, as they help to ensure that the lead glass is firmly mounted in place and that no radiation is passing through the frame.



X-RAY GLASS IS:

  • Available in 1.6mm, 2.0mm, 2.4mm, 3.2mm and 3.7mm lead shielding equivalences and higher ratings are available upon request.
  • The highest density x-ray lead glass available for the most efficient medical radiation shielding quality, and yet also allowing approx. 88% spectral light transmission.
  • Uniformly dense and is a composition of high quality materials providing a dependable shielding value.
  • Utilized for medical x-ray, gamma, alpha and beta photon shielding only.
  • Not for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing types of radiation.




  8mm 10mm 12mm 15mm 18mm 20mm 25mm
( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20 2400* 1200* 25


X Ray 8mmpb Shielding Radiation Protection Lead Glass 1000*800 0



Application



We supply the radiation-proof lead glass sheets,lead screens,Lead sheets are mainly used to the radial protection and shielding protection.

and our sale lines also including :lead glass doors,lead glass windows,lead glass pipes,lead wires,and barium sulfates ,etc.The radiation protection lead glass sheet is one of high-teach ionizing radiation protection products. The Pb equivalent of the lead glass sheets are including 2Pb,3Pb,4Pb,5Pb,6Pb,8Pb and so on.and the sizes of the lead glass sheets are according to the customers requires .

The product features excellent radiation protection performance.as well as perfect match between visual effect and high-quality medical equipment.so,it is really an ideal quality product applicable to radiology rooms for such equipment as linear accelerators,gamma knifes,post-loading equipment, PET-CT, CT, DR, DSA, and X-ray machines in modern high-grade hospital.





FAQ:



WHY PROTECTION FROM RADIATION IS IMPORTANT?


Of course, we all know that too much exposure to radiation can be dangerous. But what many people don’t realize is that even small amounts of radiation exposure can add up over time and lead to health problems. That’s why it’s so important to make sure that you are protected from radiation with lead glass and lead lined frames whenever you are in a situation where there is a potential for exposure. X-rays produce ionizing radiation, which can damage cells in your body and lead to a wide range of serious health problems.



HOW DO LEAD WINDOWS PROTECT AGAINST RADIATION?


Lead glass is an excellent material for radiation shielding because it is dense and absorbs a high percentage of radiation that passes through it. The lead in the glass helps to block x-rays and other types of ionizing radiation. The electrons in lead atoms are very tightly bound, which makes it difficult for x-rays to penetrate the material. When x-rays do pass through lead glass, they are scattered and absorbed, which reduces the amount of radiation that is able to reach you.



HOW IS LEAD GLASS FOR AN X-RAY WINDOW MADE?


Lead glass is made by adding lead oxide to molten glass, which gives it its characteristic heavy weight and high density. This makes it an ideal material for radiation shielding, as it is able to block a large amount of radiation. Lead glass x-ray windows are typically much thicker than regular glass windows, as they need to be able to block a higher level of radiation.
