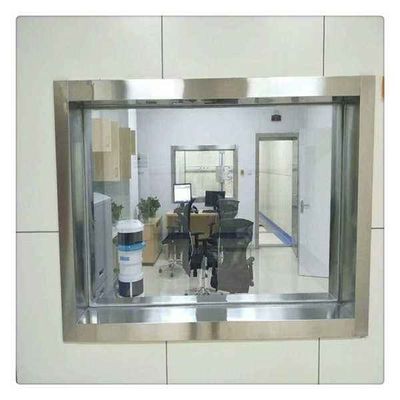

Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame

  • Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame
  • Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 1 piece
Price USD 200-2000 piece
Packaging Details Wrapped in kraft paper, then packed in wooden case.
Delivery Time 7-14days
Payment Terms T/T, L/C, D/A
Supply Ability 2000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Shielding Xray Leaded Glasses Size Customized/1200mm X 2400mm
Thickness 8/10/12/15/18/20/23/25mm Lead Equivalent 1.7/2.1/2.6/3.3/3.96/4.4/6.71mmpb
Color Transparent Service Technical Support
MOQ 1 Pc Shape Circle ,Square,Customized
Highlight

8mm radiation protection lead glass

,

alloy frame radiation protection lead glass

,

alloy frame radiation shielding glass
Leave a Message
Product Description

Xray CT Room Installation Material Lead Glass



Lead glass, when compared to ordinary glass (also referred to as soda-glass or soda-lime silica-glass), is a dense and heavy material as lead is more than five times as heavy as calcium. So lead glass has a density of 2.4 g/cm3 and lead glass has a density of 3.1 - 5.9 g/cm3.

Lead glass also has higher electrical resistance, higher refractive index (up to 1.8 compared to 1.5 for lead-free glass), lower working temperature and lower viscosity.



X-RAY GLASS IS:



  • Available in 8mm-25mm thickness lead shielding equivalences and higher ratings are available upon request.
  • The highest density x-ray lead glass available for the most efficient medical radiation shielding quality, and yet also allowing approx. 88% spectral light transmission.
  • Uniformly dense and is a composition of high quality materials providing a dependable shielding value.
  • Utilized for medical x-ray, gamma, alpha and beta photon shielding only.
  • Not for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing types of radiation.



Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame 0



Specification



 8mm

10mm

12mm

15mm

18mm

20mm

25mm


( 1.7mmpb)

( 2.1mmpb)

( 2.6mmpb)

( 3.3 mmpb)

( 3.96 mmpb)

( 4.4 mmpb)

( 6.71 mmpb)

200* 300

200* 300* 8

200* 300* 10

200* 300* 12

200* 300* 15

200* 300* 18

200* 300* 20

-

300* 400

300* 400* 8

300* 400* 10

300* 400* 12

300* 400* 15

300* 400* 18

300* 400* 20

-

400* 600

400* 600* 8

400* 600* 10

400* 600* 12

400* 600* 15

400* 600* 18

400* 600* 20

-

600* 800

600* 800* 8

600* 800* 10

600* 800* 12

600* 800* 15

600* 800* 18

600* 800* 20

-

600* 900

600* 900* 8

600* 900* 10

600* 900* 12

600* 900* 15

600* 900* 18

600* 900* 20

-

1000* 800

1000* 800* 8

1000* 800* 10

1000* 800* 12

1000* 800* 15

1000* 800* 18

1000* 800* 20

1000* 800* 25

1200* 800

1200* 800* 8

1200* 800* 10

1200* 800* 12

1200* 800* 15

1200* 800* 18

1200* 800* 20

1200* 800* 25

1200* 900

1200* 900* 8

1200* 900* 10

1200* 900* 12

1200* 900* 15

1200* 900* 18

1200* 900* 20

1200* 900* 25

1200* 1000

1200* 1000* 8

1200* 1000* 10

1200* 1000* 12

1200* 1000* 15

1200* 1000* 18

1200* 1000* 20

1200* 1000* 25

1200* 1200

-

1200* 1200* 10

1200* 1200* 12

1200* 1200* 15

1200* 1200* 18

1200* 1200* 20

1200* 1200* 25

1500* 900

-

1500* 900* 10

1500* 900* 12

1500* 900* 15

1500* 900* 18

1500* 900* 20

1500* 900* 25

1500* 1000

-

1500* 1000* 10

1500* 1000* 12

1500* 1000* 15

1500* 1000* 18

1500* 1000* 20

1500* 1000* 25

1500* 1200

-

1500* 1200* 10

1500* 1200* 12

1500* 1200* 15

1500* 1200* 18

1500* 1200* 20

1500* 1200* 25

1600* 1000

-

1600* 1000* 10

1600* 1000* 12

1600* 1000* 15

1600* 1000* 18

1600* 1000* 20

1600* 1000* 25

1600* 1200

-

1600* 1200* 10

1600* 1200* 12

1600* 1200* 15

1600* 1200* 18

1600* 1200* 20

1600* 1200* 25

1800* 1000

-

1800* 1000* 10

1800* 1000* 12

1800* 1000* 15

1800* 1000* 18

1800* 1000* 20

1800* 1000* 25

1800* 1200

-

1800* 1200* 10

1800* 1200* 12

1800* 1200* 15

1800* 1200* 18

1800* 1200* 20

1800* 1200* 25

2000* 1000

-

2000* 1000* 10

2000* 1000* 12

2000* 1000* 15

2000* 1000* 18

2000* 1000* 20

2000* 1000* 25

2000* 1200

-

2000* 1200* 10

2000* 1200* 12

2000* 1200* 15

2000* 1200* 18

2000* 1200* 20

2000* 1200* 25

2400* 1200

-

2400* 1200* 10

2400* 1200* 12

2400* 1200* 15

2400* 1200* 18

2400* 1200* 20

2400* 1200* 25





We will also customize the size according to customer requirements, the largest size we have customized is as follows

1500mm size x 3000mm size for their CT Rooom installation.

Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame 1





Packing & Delivery



Ct X Ray Room Window 8mm Radiation Protection Lead Glass With Alloy Frame 2



Attention:

1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.

2. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.

3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,

and is not easy to be installed or stored in a sour or humid environment.





After-Service:



1. Delivery within 10 days after receiving payments.

2. Offer Different Shipping Ways to our customers.

3. Track the order until you get the products

4. In usual, sea port we used is in Tianjin, Shenzhen...

5. Shaped in sheet, and packed in wooden case.
