Circle Lead Glass Radiation Protection 15mm Thickness

  • Circle Lead Glass Radiation Protection 15mm Thickness
  • Circle Lead Glass Radiation Protection 15mm Thickness
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 1 piece
Price USD 200-2000 piece
Packaging Details Wrapped in kraft paper, then packed in wooden case.
Delivery Time 7-14days
Payment Terms T/T, L/C, D/A
Supply Ability 2000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Shielded Lead Glass For CT/X-ray Room Installation Size Customized
Thickness 8/10/12/15/18/20/23/25mm Lead Equivalent 1.7/2.1/2.6/3.3/3.96/4.4/6.71mmpb
Color Transparent Service Technical Support
MOQ 1 Pc Shape Circle ,Square,Customized
Highlight

circle lead glass radiation

,

15mm thickness lead glass radiation

,

15mm thickness radiation protection lead glass
Leave a Message
Product Description

Lead Glass Quick Detail:

X-Ray Lead Glass is annealed glass that contains lead oxide and other heavy metals. It offers protection

against radiation by absorbing the energy of the radiation. Lead glass is used in many medical environments,

from dentist offices to hospitals, laboratories where x-rays and other radiation therapy is tested, and even

industrial applications like x-ray imaging of welds on airplanes and pipelines.




The product features excellent radiation protection performance.as well as perfect match between visual effect and

high-quality medical equipment.so,it is really an ideal quality product applicable to radiology rooms for such equipment

as linear accelerators,gamma knifes,post-loading equipment, PET-CT, CT, DR, DSA, MRI , NDT , and X-ray machines in modern high-grade hospital.the lead glass sheets have specific gravity,it should be taken carefully during the course of movement.

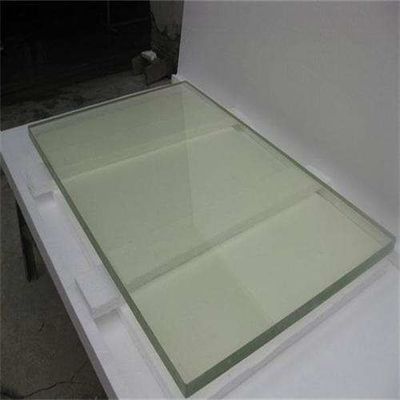

Circle Lead Glass Radiation Protection 15mm Thickness 0



Application

Lead glass almost used in the manufacturing of optical instruments, art vessels, etc.

And known as medical X- ray radiation-proof lead glass plate in the medical field.



Additionally, there are other uses for lead glass that extend beyond the medical field. These are a few common uses and applications that are not strictly medical:


  • Airport security x-ray stations
  • Industrial x-ray imaging of welds
  • Electron Beam shielding
  • Non-Destructive Testing (NDT)
  • Farnsworth–Hirsch Fusor shielding



We will also customize the size according to customer requirements, the largest size we have customized is as follows

1500mm size x 3000mm size for their CT Rooom installation.

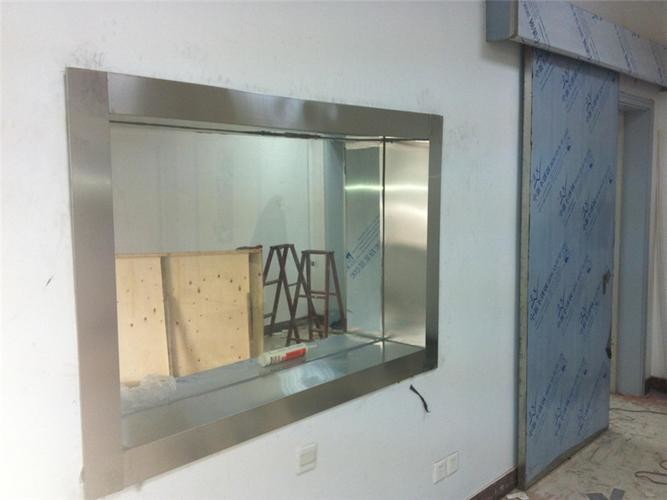

Circle Lead Glass Radiation Protection 15mm Thickness 1



Lead Glass Specification

  8mm 10mm 12mm 15mm 18mm 20mm 25mm
  ( 1.7mmpb) ( 2.1mmpb) ( 2.6mmpb) ( 3.3 mmpb) ( 3.96 mmpb) ( 4.4 mmpb) ( 6.71 mmpb)
200* 300 200* 300* 8 200* 300* 10 200* 300* 12 200* 300* 15 200* 300* 18 200* 300* 20 -
300* 400 300* 400* 8 300* 400* 10 300* 400* 12 300* 400* 15 300* 400* 18 300* 400* 20 -
400* 600 400* 600* 8 400* 600* 10 400* 600* 12 400* 600* 15 400* 600* 18 400* 600* 20 -
600* 800 600* 800* 8 600* 800* 10 600* 800* 12 600* 800* 15 600* 800* 18 600* 800* 20 -
600* 900 600* 900* 8 600* 900* 10 600* 900* 12 600* 900* 15 600* 900* 18 600* 900* 20 -
1000* 800 1000* 800* 8 1000* 800* 10 1000* 800* 12 1000* 800* 15 1000* 800* 18 1000* 800* 20 1000* 800* 25
1200* 800 1200* 800* 8 1200* 800* 10 1200* 800* 12 1200* 800* 15 1200* 800* 18 1200* 800* 20 1200* 800* 25
1200* 900 1200* 900* 8 1200* 900* 10 1200* 900* 12 1200* 900* 15 1200* 900* 18 1200* 900* 20 1200* 900* 25
1200* 1000 1200* 1000* 8 1200* 1000* 10 1200* 1000* 12 1200* 1000* 15 1200* 1000* 18 1200* 1000* 20 1200* 1000* 25
1200* 1200 - 1200* 1200* 10 1200* 1200* 12 1200* 1200* 15 1200* 1200* 18 1200* 1200* 20 1200* 1200* 25
1500* 900 - 1500* 900* 10 1500* 900* 12 1500* 900* 15 1500* 900* 18 1500* 900* 20 1500* 900* 25
1500* 1000 - 1500* 1000* 10 1500* 1000* 12 1500* 1000* 15 1500* 1000* 18 1500* 1000* 20 1500* 1000* 25
1500* 1200 - 1500* 1200* 10 1500* 1200* 12 1500* 1200* 15 1500* 1200* 18 1500* 1200* 20 1500* 1200* 25
1600* 1000 - 1600* 1000* 10 1600* 1000* 12 1600* 1000* 15 1600* 1000* 18 1600* 1000* 20 1600* 1000* 25
1600* 1200 - 1600* 1200* 10 1600* 1200* 12 1600* 1200* 15 1600* 1200* 18 1600* 1200* 20 1600* 1200* 25
1800* 1000 - 1800* 1000* 10 1800* 1000* 12 1800* 1000* 15 1800* 1000* 18 1800* 1000* 20 1800* 1000* 25
1800* 1200 - 1800* 1200* 10 1800* 1200* 12 1800* 1200* 15 1800* 1200* 18 1800* 1200* 20 1800* 1200* 25
2000* 1000 - 2000* 1000* 10 2000* 1000* 12 2000* 1000* 15 2000* 1000* 18 2000* 1000* 20 2000* 1000* 25
2000* 1200 - 2000* 1200* 10 2000* 1200* 12 2000* 1200* 15 2000* 1200* 18 2000* 1200* 20 2000* 1200* 25
2400* 1200 - 2400* 1200* 10 2400* 1200* 12 2400* 1200* 15 2400* 1200* 18 2400* 1200* 20

2400* 1200* 25







Information about lead shielded



  • Lead Glass Pro offers the highest density x-ray lead glass available for the most efficient medical radiation shielding quality, which also allows approximately 85% spectral light transmission.
  • Lead Glass Pro ensures that its materials are uniformly dense and have a high-quality composition, which provides a dependable shielding value.
  • Lead Glass Pro’s X-Ray Lead Glass is approved for the medical x-ray, gamma, alpha, and beta photon shielding only.
  • X-Ray Lead glass is NOT for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing types of radiation.



Packing & Delivery



Circle Lead Glass Radiation Protection 15mm Thickness 2
