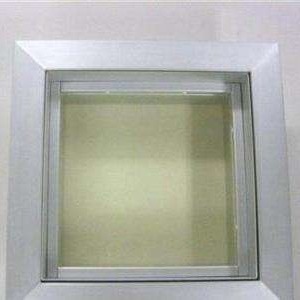

4 Lead Equivalence Square Radiation Protection Glass Shielding X Ray Room

Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 2 pcs lead glass
Price USD 1980-2680/pcs
Packaging Details in piece and in wooden case
Delivery Time within 7-10 days after receiving payment
Payment Terms L/C, T/T, Western Union
Supply Ability 3500 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 4 Lead Equivalence Lead Glass Radiation Shielding X-Ray Lead Glass Lead Equivalent 4mmPb
Size 800mm X 1000mm / 1000mmx1200mm /1000mm X 2000mm Color Transparent Glass Color
Application Xray Room CT Room Shape Square
High Light

square radiation protection glass

,

4 lead equivalence radiation protection glass

,

lead glass for x ray room

Leave a Message
Product Description

4 Lead Equivalence Lead Glass Radiation Shielding X-Ray Lead Glass



Quick Detail:



· Over 50 standard sizes up to 96" x 48"

· Many x-ray protective shielding levels available

· Lead equivalent 2.1mm Pb

· Available with lead lined telescoping frames for walls or lead lined vision frames doors

· with frame and without frame both available

· 3 day standard fabrication

· Safety rated impact resistant or laminated available upon request







Description:



We can offer different thicknesses and customized sizes of lead glass.

It is widely and mainly used for X-ray CT Installation Projects.

To provide viewing of the patient in the x-ray room while providing protection to the operator,

lead glass viewing windows can be furnished in the barrier.

We provide lead glass for your project-specific requirements.

Select from standard sizes or request a quote for custom sizes or lead thicknesses.

Standard X-Ray lead glass does not meet impact resistant requirements to be used in doors or within 24" of doors.
Our x-ray protective lead glass meets Federal Specification DD-G-451 and

ASTM C1036 requirements and all applicable current NCRP and ICRP

lead glass criteria and standards in physical quality descriptions.
Our Lead Glass also meets or exceeds National Council of Radiation Protection (NCRP)

Report No. 49 and No.147, and also ICRP lead glass criteria and standards in physical quality descriptions and required densities.



Specification:





                                                                        Equivalent
                                                          Standard Thickness Glass
Lead Glass(mmPb) 1.8-2.0 2.5-2.7 3.0-3.2
Thickness(mm) 9-10 11-12 14-15
X-Ray peak voltage(kv) 150 150 200

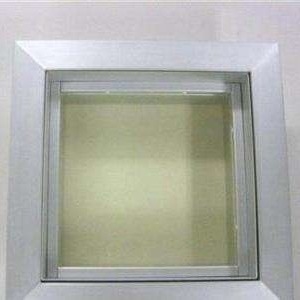

4 Lead Equivalence Square Radiation Protection Glass Shielding X Ray Room 0

We can offer different and customized sizes of lead glass for X-ray and CT Room installation.

Surely we can also offer a lead door for shielding materials.



8mm

(1.7mmpb)

10mm

(2.1mmpb)

12mm

(2.6mmpb)

15mm

(3.3 mmpb)

18mm

(3.96 mmpb)

20mm

(4.4 mmpb)

25mm

(6.71 mmpb)

200*300 200*300*8 200*300*10 200*300*12 200*300*15 200*300*18 200*300*20 -
300*400 300*400*8 300*400*10 300*400*12 300*400*15 300*400*18 300*400*20 -
400*600 400*600*8 400*600*10 400*600*12 400*600*15 400*600*18 400*600*20 -
600*800 600*800*8 600*800*10 600*800*12 600*800*15 600*800*18 600*800*20 -
600*900 600*900*8 600*900*10 600*900*12 600*900*15 600*900*18 600*900*20 -
1000*800 1000*800*8 1000*800*10 1000*800*12 1000*800*15 1000*800*18 1000*800*20 1000*800*25
1200*800 1200*800*8 1200*800*10 1200*800*12 1200*800*15 1200*800*18 1200*800*20 1200*800*25
1200*900 1200*900*8 1200*900*10 1200*900*12 1200*900*15 1200*900*18 1200*900*20 1200*900*25
1200*1000 1200*1000*8 1200*1000*10 1200*1000*12 1200*1000*15 1200*1000*18 1200*1000*20 1200*1000*25
1200*1200 - 1200*1200*10 1200*1200*12 1200*1200*15 1200*1200*18 1200*1200*20 1200*1200*25
1500*900 - 1500*900*10 1500*900*12 1500*900*15 1500*900*18 1500*900*20 1500*900*25
1500*1000 - 1500*1000*10 1500*1000*12 1500*1000*15 1500*1000*18 1500*1000*20 1500*1000*25
1500*1200 - 1500*1200*10 1500*1200*12 1500*1200*15 1500*1200*18 1500*1200*20 1500*1200*25
1600*1000 - 1600*1000*10 1600*1000*12 1600*1000*15 1600*1000*18 1600*1000*20 1600*1000*25
1600*1200 - 1600*1200*10 1600*1200*12 1600*1200*15 1600*1200*18 1600*1200*20 1600*1200*25
1800*1000 - 1800*1000*10 1800*1000*12 1800*1000*15 1800*1000*18 1800*1000*20 1800*1000*25
1800*1200 - 1800*1200*10 1800*1200*12 1800*1200*15 1800*1200*18 1800*1200*20 1800*1200*25
2000*1000 - 2000*1000*10 2000*1000*12 2000*1000*15 2000*1000*18 2000*1000*20 2000*1000*25
2000*1200 - 2000*1200*10 2000*1200*12 2000*1200*15 2000*1200*18 2000*1200*20 2000*1200*25
2400*1200 - 2400*1200*10 2400*1200*12 2400*1200*15 2400*1200*18 2400*1200*20 2400*1200*25





Notices:



1. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.

2. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,

and is not easy to be installed or stored in a sour or humid environment.

3. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.

4. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.



Application:

It is mainly used for diagnostic X-ray machine rooms, CT, ECT, PET, ct-pet, and other machine rooms,

as well as observation of Windows on the protective screen of protective doors.

It is mainly used in the manufacturing of optical instruments, art vessels, etc.

It is also known as a medical X-ray radiation-proof lead glass plate in the medical field.



FAQ:



Q1. Can I have a sample order for lead glass?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Usually 5-7 working days.



Q3. Do you have any MOQ limit for led light orders?

A: Low MOQ, 1pc is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.



Q5. How to proceed with an order for lead glass?

A: Firstly let us know your requirements or size, thickness and also quantity.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: We can offer a sticky label on a wooden case with OEM service.
