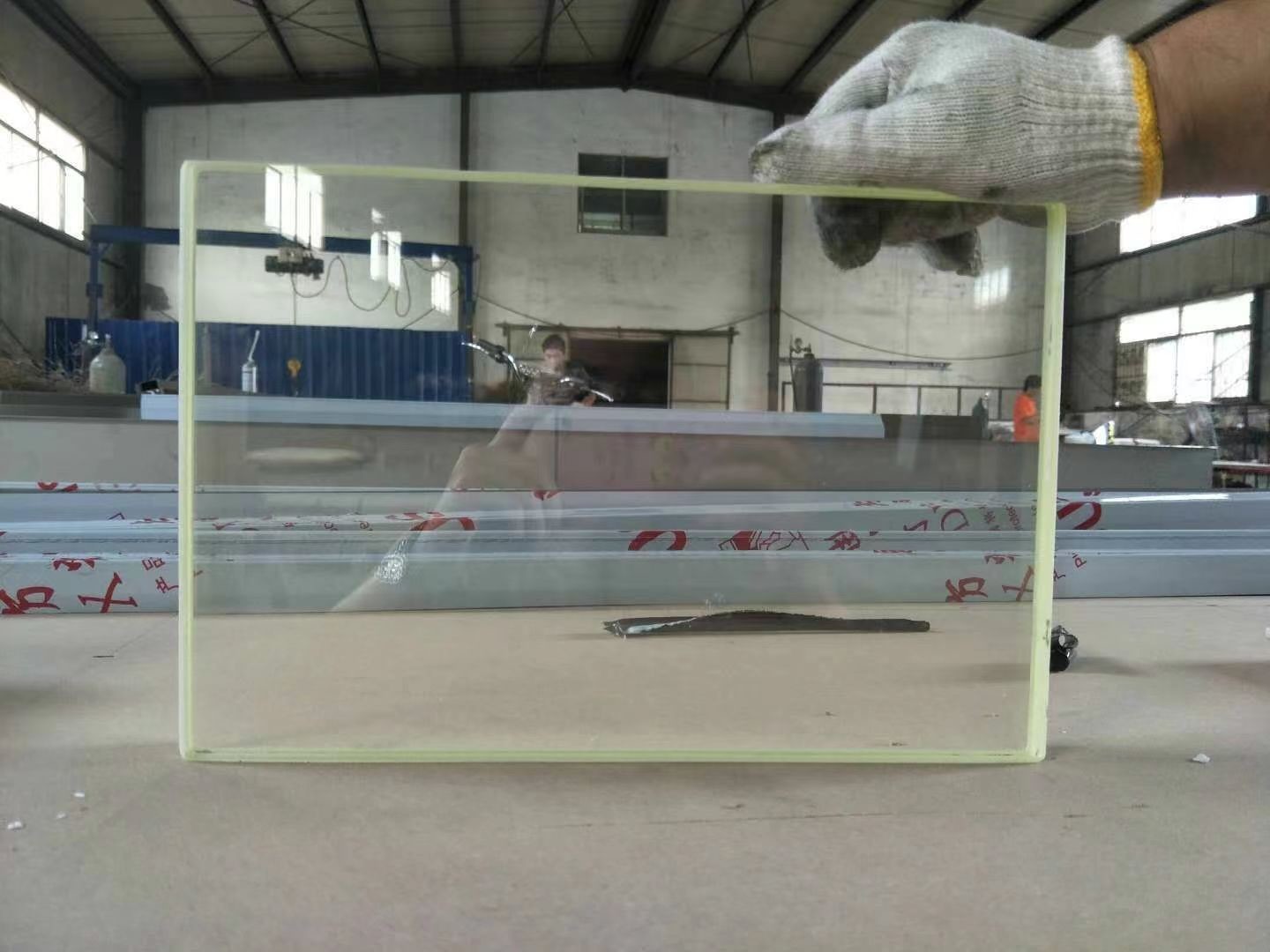

1000*800mm Xray Room Lead Radiation Resistant Glass 3.3mmpb

Place of Origin China
Brand Name Jovi
Model Number 1-cf-15
Minimum Order Quantity 1 piece
Price USD500-USD2000
Packaging Details In wooden cases
Delivery Time 7-15 works day
Supply Ability 3000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MOQ 1 Pcs Warranty 1 Year
Pb (Min) 99.9% Material Metal Lead
Power Source Manual Instrument Classification Class I
High Light

3.3mmpb radiation resistant glass

,

1000*800mm radiation resistant glass

,

xray room radiation resistant glass

Leave a Message
Product Description

Production Description



The main component of medical lead glass is lead oxide, which has the function of blocking radiation.Lead glass shall be used as diagnostic X-ray room, CT, ECT, PET, CT-PET and other room, as well as X-ray photographic protection room, observation window on protective screen of protective door, and operational protective screen for nuclear medicine.

In the medical field, leaded glass is also called medical X-ray radiation-proof leaded glass plate.

Lead glass is the most important component in X-ray/CT room installation and is often used in Windows.We can provide lead glass of different thickness, normal thickness from 12mm to 25mm, or provide customized size service.

The most common sizes are 200*300mm to 2400*1200mm.

Customization is used not only for cutting, but also for thinning.





Specification



Thickness 8mm, 10mm, 12mm, 15mm, 18mm, 20mm, 23mm, 25mm
Size From 200*300mm, to 1200mm*2400mm. Customized cutting is accepted.
Shape Square and Circle
Packing In Wooden Case
Shipping By sea, air or also express. The most economical is by sea.



ZF 3 standard ZF 6 standard ZF 7 standard
W*L(m)/

8mm

(2PB)

10mm

(2.2PB)

12mm

(2.6PB)

15mm

(3.3PB)

18mm

(3.96PB)

20mm

(4.4PB)

25mm

(6.71PB)

20mm

(5.4Pb)

40mm

(10.8mm)

20mm

(5.8Pb)

40mm

(11.6mm)

0.2*0.3 0.2*0.3*8 0.2*0.3*10 0.2*0.3*12 0.2*0.3*15 0.2*0.3*18 0.2*0.3*20 0.2*0.3*25 0.2*0.3*20 0.2*0.3*40 0.2*0.3*20 0.2*0.3*40
0.3*0.4 0.3*0.4*8 0.3*0.4*10 0.3*0.4*12 0.3*0.4*15 0.3*0.4*18 0.3*0.4*20 0.3*0.4*25 0.3*0.4*20 0.3*0.4*40 0.3*0.4*20 0.3*0.4*40
0.4*0.6 0.4*0.6*8 0.4*0.6*10 0.4*0.6*12 0.4*0.6*15 0.4*0.6*18 0.4*0.6*20 0.4*0.6*25 0.4*0.6*20 0.4*0.6*40 0.4*0.6*20 0.4*0.6*40
0.6*0.8 0.6*0.8*8 0.6*0.8*10 0.6*0.8*12 0.6*0.8*15 0.6*0.8*18 0.6*0.8*20 0.6*0.8*25 0.6*0.8*20 0.6*0.8*40 0.6*0.8*20 0.6*0.8*40
0.6*0.9 0.6*0.9*8 0.6*0.9*10 0.6*0.9*12 0.6*0.9*15 0.6*0.9*18 0.6*0.9*20 0.6*0.9*25 0.6*0.9*20 0.6*0.9*40 0.6*0.9*20 0.6*0.9*40
1*0.8 1*0.8*8 1*0.8*10 1*0.8*12 1*0.8*15 1*0.8*18 1*0.8*20 1*0.8*25 1*0.8*20 1*0.8*40 1*0.8*20 1*0.8*40
1.2*0.8 1.2*0.8*8 1.2*0.8*10 1.2*0.8*12 1.2*0.8*15 1.2*0.8*18 1.2*0.8*20 1.2*0.8*25 1.2*0.8*20 1.2*0.8*40 1.2*0.8*20 1.2*0.8*40
1.2*0.9 1.2*0.9*8 1.2*0.9*10 1.2*0.9*12 1.2*0.9*15 1.2*0.9*18 1.2*0.9*20 1.2*0.9*25 1.2*0.9*20 1.2*0.9*40 1.2*0.9*20 1.2*0.9*40
1.2*1 1.2*1*8 1.2*1*10 1.2*1*12 1.2*1*15 1.2*1*1.8 1.2*1*20 1.2*1*25 1.2*1*20 1.2*1*40 1.2*1*20 1.2*1*40
1.2*1.2   1.2*1.2*10 1.2*1.2*12 1.2*1.2*15 1.2*1.2*18 1.2*1.2*20 1.2*1.2*25 1.2*1.2*20 1.2*1.2*40 1.2*1.2*20 1.2*1.2*40
1.5*0.9   1.5*0.9*10 1.5*0.9*12 1.5*0.9*15 1.5*0.9*18 1.5*0.9*20 1.5*0.9*25 1.5*0.9*20 1.5*0.9*40 1.5*0.9*20 1.5*0.9*40
1.5*1   1.5*1*10 1.5*1*12 1.5*1*15 1.5*1*18 1.5*1*20 1.5*1*25 1.5*1*20 1.5*1*40 1.5*1*20 1.5*1*40
1.5*1.2   1.5*1.2*10 1.5*1.2*12 1.5*1.2*15 1.5*1.2*18 1.5*1.2*20 1.5*1.2*25 1.5*1.2*20 1.5*1.2*40 1.5*1.2*20 1.5*1.2*40
1.6*1   1.6*1*10 1.6*1*12 1.6*1*15 1.6*1*18 1.6*1*20 1.6*1*25 1.6*1*20 1.6*1*40 1.6*1*20 1.6*1*40
1.6*1.2   1.6*1.2*10 1.6*1.2*12 1.6*1.2*15 1.6*1.2*18 1.6*1.2*20 1.6*1.2*25 1.6*1.2*20 1.6*1.2*40 1.6*1.2*20 1.6*1.2*40
1.8*1   1.8*1*10 1.8*1*12 1.8*1*15 1.8*1*18 1.8*1*20 1.8*1*25 1.8*1*20 1.8*1*40 1.8*1*20 1.8*1*40
1.8*1.2   1.8*1.2*10 1.8*1.2*12 1.8*1.2*15 1.8*1.2*18 1.8*1.2*20 1.8*1.2*25 1.8*1.2*20 1.8*1.2*40 1.8*1.2*20 1.8*1.2*40
2*1   2*1*10 2*1*12 2*1*15 2*1*18 2*1*20 2*1*25 2*1*20 2*1*40 2*1*20 2*1*40
2*1.2   2*1.2*10 2*1.2*12 2*1.2*15 2*1.2*18 2*1.2*20 2*1.2*25 2*1.2*20 2*1.2*40 2*1.2*20 2*1.2*40
2.4*1.2   2.4*1.2*10 2.4*1.2*12 2.4*1.2*15 2.4*1.2*18 2.4*1.2*20 2.4*1.2*25 2.4*1.2*20 2.4*1.2*40 2.4*1.2*20 2.4*1.2*40
