Customized Size 15mm X Ray Leaded Glass Shielding Radiation Protection
Place of Origin | China |
---|---|
Brand Name | Jovi |
Certification | CE |
Model Number | 1-CF-15 |
Minimum Order Quantity | 1 PC |
Price | USD200-2167/PC |
Packaging Details | Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case. |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 3000PCS per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xThickness | 8/10/12/15/18/20/23/25mm | Lead Equivalent | 1.7/2.1/2.6/3.3/3.96/4.4/6.71mmpb |
---|---|---|---|
Size | Customized | Color | Transparent |
Packing | Wooden Case | Function | Xray Room Basic Material |
Highlight | 15mm x ray leaded glass,customized x ray leaded glass,15mm x ray proof glass |

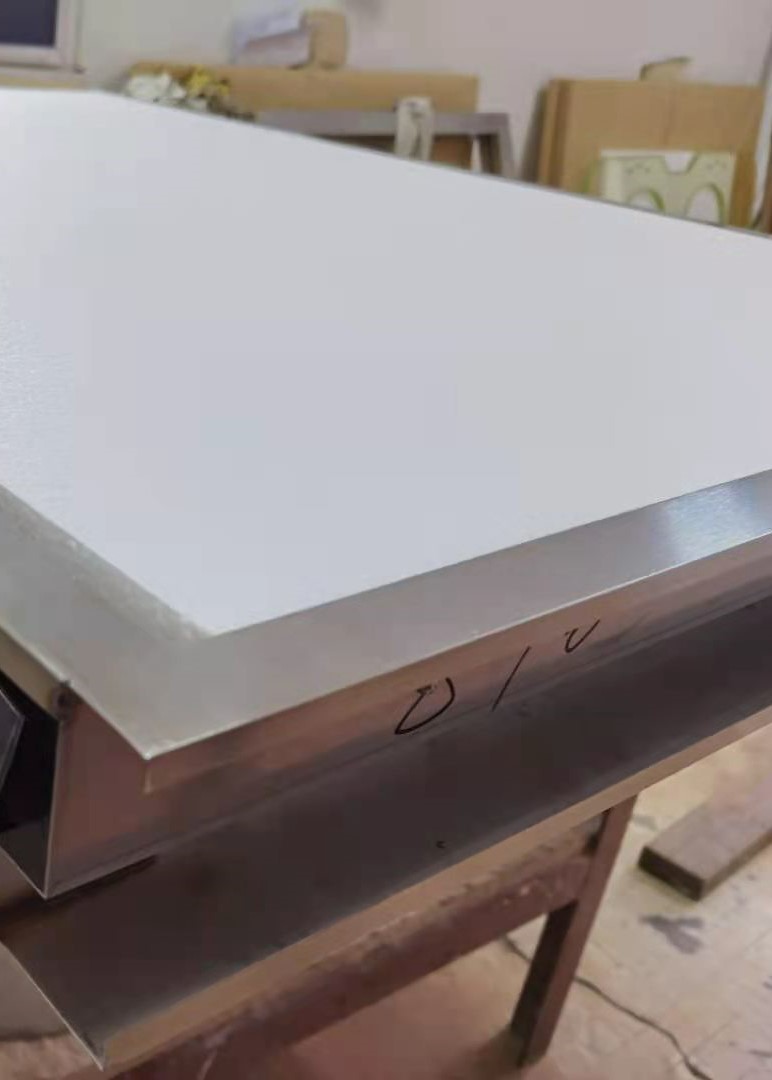

Customized Size X Ray Shielding Radiation Protection Lead Glass
Quick Detail:
· Customized Size and Shape
· Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm
· Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb
· Stainless Steel frame available
· CE Certificate
Description:
We can offer different thicknesses and customized sizes of lead glass. It is widely and mainly used for
Xray CT Installation Projects.
To provide viewing of the patient in the x- ray room while providing protection to the operator, lead glass
viewing windows can be furnished in the barrier.
Lead glass can be installed in multiple layers so as to provide a lead equivalency to the lead in the wall
in which it is installed.
Specification:
8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm | |
( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) | |
200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |
Notices:
1. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.
2. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.
3. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,
and is not easy to be installed or stored in a sour or humid environment.
4. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.
Application:
Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc.
Lead glass is also known as medical X- ray radiation-proof lead glass plate in the medical field.
Lead glass is mainly used for diagnostic X- ray machine rooms, CT, ECT, PET, ct- pet, and other machine rooms,
as well as observation Windows on the protective screen of protective doors.
FAQ:
8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm Thickness Xray CT Room Installation Material Lead Glass
Q1. Can I have a sample order for lead glass?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Usually 5-7 working days.
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea.
Q4. How to proceed with an order for lead glass?
A: Firstly, let us know your requirements or size, thickness, and quantity.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
