Shielded Enclosure Waveguide Pipe Honeycomb Brass Steel Optic Fiber
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brass Honeycomb Waveguide Air Vents Waveguide Filter Cable Shielding | Material | 304,316 Stainless Steel,Brass,Steel |
|---|---|---|---|
| Frame | Frame Or Unframe | Cell Size | 0.56-28 Mm |
| Application | MRI EMC RF Room,Electrical | Shielding Effectiveness | 14KHz-40GHz Meet 100dB |
| Type | Ventilation,HVAC Systems,Air Conditioning,MRI Room Shielding Installation | Size | Customized Inter Diameter 63mm |
| Function | Ventilation | Color | Brass,Silver Or Customized,Red Copper,yellow |
| Highlight | shielded enclosure waveguide pipe,honeycomb brass steel waveguide pipe,shielded enclosure pipe waveguide |
||
Product Description
Shielded Enclosure Honeycomb Brass Steel Wave Guide Tube Optic Fiber
Description

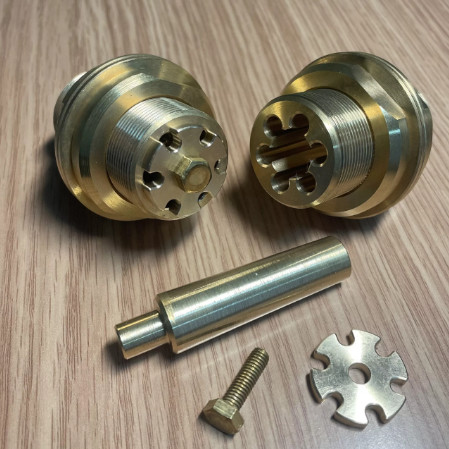

The filber optic waveguide tube accepts up to six pre-terminated fiber optic cables with attached connectors.
It is designed to provide a means of bringing fiber optic cables into a shielded enclosure
while maintaining the enclosure’s radio frequency isolation integrity. The filter has a removable center plug,
which is surrounded by six waveguide bores. When the center plug is removed,
connectorized fiber optic cables can be inserted into the peripheral cable sized slots.
Details
| Shielded brass waveguide filter standard size | |
| Size | Inside size 63mm outside size 74.5mm length 300mm/other size can be provided too such as optic fiber wave guide |
| material | brass |
Application :
The honeycomb filter and Waveguide product can be well used MRI RF Room, EMC EMI Room installation.
FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. What is delivery time?
Within 5-8 working days after payment.
3. What is packing ?
It is packed with wooden case.
