Tinplate / Brass Frame Honeycomb Waveguide Air Vents For Emc Testing Room Faraday Cage

Place of Origin China
Brand Name Jovi
Model Number 1-CF-4
Minimum Order Quantity 1 piece
Price USD 170 piece
Packaging Details In wooden case
Delivery Time 7-14days
Payment Terms T/T, L/C, D/A
Supply Ability 200pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Beijing, China Material Stainless Steel
Function Ventilaion Packing Wooden Case
Size 300mm X 300mm/Customizable Application Hospital
High Light

brass frame honeycomb waveguide air vents

,

faraday cage honeycomb waveguide air vents

,

tinplate frame honeycomb vent

Leave a Message
Product Description

Honeycomb Vent



In order to maintain the air flow inside the machine room, windows need to be opened on the shielding

shell, but the waveguide window must be installed to meet the response standard. The function of the

waveguide window is to ensure the air flow and prevent the leakage of electromagnetic signal. The ventilation

guide window is the main channel for shielding indoor air to exchange with the outside world, which can effectively

cut off the passage of electromagnetic wave.





Honeycomb Vent is a special but indispensable part of a MRI/ RF shielding room

and shieded cabinet. It is usually using for air pass. Its shielding range is ≤20GHz.



In common, we distinguish it from its material, thickness, cell hole size, outer size,
with or without frame.

We have Stainless Steel, Tin plate, Brass, even Aluminum materials.

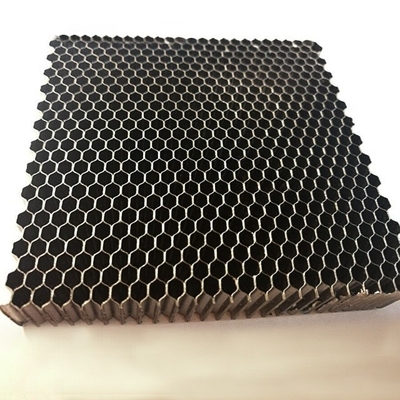

Tinplate / Brass Frame Honeycomb Waveguide Air Vents For Emc Testing Room Faraday Cage 0


Product Specification

Material
Thickness
Cell Hole Size
Outer Size
Frame
Stainless Steel
25mm, 50mm, Customized.
3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm
300*300, 300*600, 600*600, Customized
H type, C type, without frame.
Tin Plate
Brass
Aluminum


Ventilation guide window air inlet 300 * 300mm and equipped with air exchange device
(1) The shielding ventilation window is in the form of cut-off waveguide, and its insertion attenuation should be

consistent with that of the shielding chamber. The waveguide window is composed of many waveguides, and

the cross section of the small waveguide is hexagonal;
(2) The waveguide piece is made up of a new low temperature brazing process.

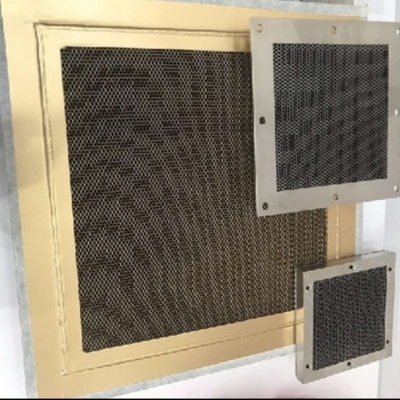

Tinplate / Brass Frame Honeycomb Waveguide Air Vents For Emc Testing Room Faraday Cage 1

Tinplate / Brass Frame Honeycomb Waveguide Air Vents For Emc Testing Room Faraday Cage 2



Packaging and Delivery

Tinplate / Brass Frame Honeycomb Waveguide Air Vents For Emc Testing Room Faraday Cage 3
