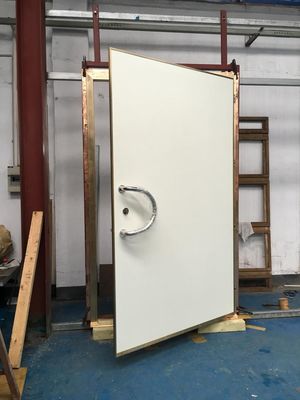

Manual Single Door Leaf Rf Shielded Doors With Own Lock System
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | MRI Room, RF Room | Features Of MRI Door | Brass Frame + Copper Foil + White Fireproof Board + Threshold |
|---|---|---|---|
| Material | Brass Copper | Color | White |
| Size Of Door | 1.2*2.1m And Customized | Transportation Package | Wooden Carton |
| Open Style | Manual | Addition | With Lock Systems And Keys, Doors Handle |
| Highlight | manual rf shielded doors,single door leaf rf shielded doors,own lock system rf shielded door |
||
Product Description
RF Shielded Doors Installation Door Inside Shielding Copper Metal
RF Shielding Door is the most important part during RF shielding room installation,
Which is usually made by cold-roll steel sheets.
The door can be designed and produced according to customers’ requirements,
Such as manual, electric, pneumatic, sliding track operation, single door, double door, and so on.
1. Specification
|
Size
|
Standard 1.2*2.1 meter
|
|
Material
|
Brass frame + copper foil + white fireproof board + threshold
|
|
Flange
|
With a copper flange for shielding
|
|
Attenuation
|
10MHz~1GHz meet 100dB
|
|
Packing
|
Wooden packing or customized
|
|
Shipping
|
By sea or customized
|
2. Product features
1) The most widely used electromagnetic shielding door nowadays. The access control system
can be added.
2) Using high- performance Becu finger strips, long service life, easy and convenient to open
and close.
3) Hinge rotation, single & double knife-edge technology, double shielding
effectiveness performance.
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure,
running smooth and light.
3. Advantages
1) Standard door entrance size is according to the hospital cart pass
2) Non- magnetic materials
3) Door threshold direction could modify during assemble
4) Easy to repair or replace spare parts
5) High performance with reasonable price
4. Shielding performance of brass material MRI shield door
|
Magnetic Field
|
15MHz
|
100dB
|
|
Electric Field
|
10MHz
|
100dB
|
|
30MHz
|
100dB
|
|
|
Plane Wave
|
30MHz
|
100dB
|
|
100MHz
|
100dB
|
|
|
130MHz
|
100dB
|
