300mm Stainless Steel Honeycomb Waveguide Air Vents Panel Ceiling Filter For RF Room

Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-4
Minimum Order Quantity 1 pc
Price $130/pc-$380/pc
Packaging Details in piece and in wooden case
Delivery Time within 10-14 wroking days after receiving payment
Payment Terms L/C, T/T, Western Union
Supply Ability 2000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Honeycomb Filter Core Vent Panel Ceiling For MRI Room Material Brass Stainless Steel
Standard Size Of Honeycomb 300mm*300mm*25mm*5.2mm And Customized Size Usage MRI RF Room Shielded Room
MOQ 1 Pcs Sample Available
Packing Wooden Case Standard Size Of Waveguide Inter Diameter 63mm Outer Diameter 75mm Length300mm
High Light

300mm Honeycomb Waveguide Air Vents

,

Stainless Steel Honeycomb Waveguide Air Vents

,

wave guide filter for RF Room

Leave a Message
Product Description

Stainless Steel Honeycomb Filter Core Vent Panel Ceiling for MRI Room



Quick Detail :



1. Brass Honeycomb with/without frame



2. Stainless Steel Honeycomb Filter



3. Airflow System Honeycomb Vent



4. Stainless Steel waveguide tube



5. Brass Waveguide tube







Description:



Tin Plated Steel / Brass Honeycomb Filter Vent Picture:

The largest vent size honeycomb vent we can provide is 600mm*900mm,if you need bigger size than it,

it must be jointing bu two or more pieces vent.For 12.5mm thickness model,the largest size is 600mm*600mm,

for 3.2mm cell diameter model,the largest size is 600mm*600mm.





Technical Parameter
Cell Diameter : 4.80mm
Core Thickness : 25.00mm
Frequency Band Attenuation
100KHz >100dB
1MHz-10MHz >100dB
10MHz-30MHz >100dB
3MHz-1G Hz >100dB
1GHz-10GHz >100dB
Available Thickness
12.5mm 25mm 50mm
Available Material
Steel Brass Copper
Available Size
The largest vent size is 600mm*900mm

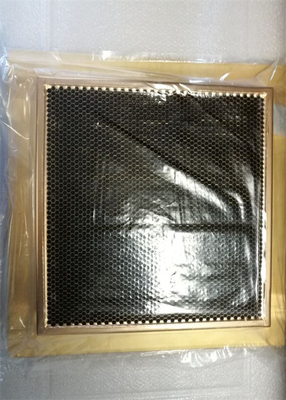

300mm Stainless Steel Honeycomb Waveguide Air Vents Panel Ceiling Filter For RF Room 0

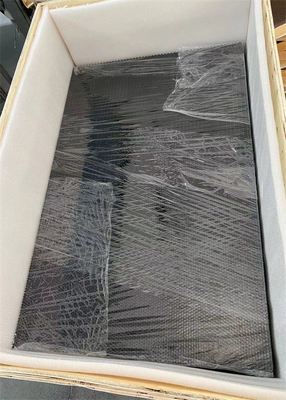

300mm Stainless Steel Honeycomb Waveguide Air Vents Panel Ceiling Filter For RF Room 1








FAQ:



1. Can we get a product sample?



Yes, we can offer sample to you.



2. As for the honeycomb, what materials can you offer ?



We can offer brass / stainless steel/ tin plated steel materials....



3. What is packing ?



It is packed with wooden case.



4. What is delivery time?



Within 7-10 working days after payment.
