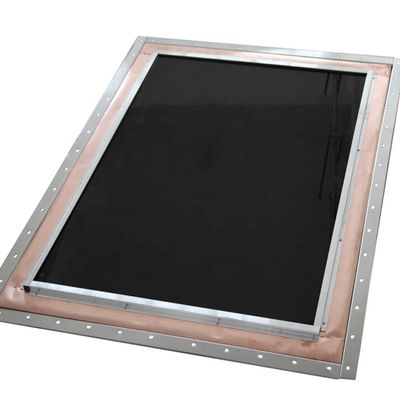

Tin-plated RF shielded windows with wood/Al alloy frames and custom opening for signal protection.

Product Description:

RF Shielded Windows are purpose-engineered to deliver superior protection against electromagnetic interference (EMI), ensuring that sensitive electronic environments stay secure and fully functional. These EMI-resistant windows serve as essential components in facilities where controlling electromagnetic radiation is paramount, including medical imaging suites, secure communications centers, and research laboratories. By effectively attenuating unwanted RF signals, the RF shielded insulated window helps preserve electronic equipment integrity and prevents data corruption or signal degradation.
A notable highlight of our RF Shielded Windows is their extensive customization capability. They are offered in a diverse array of sizes and shapes to precisely accommodate the specific demands of various installations. Whether you require a compact, unobtrusive window for a control room or a larger observation panel for an industrial facility, these windows can be tailored accordingly. The standard door size option measures 1.5 meters by 1.2 meters, providing generous viewing area while maintaining peak shielding performance. This adaptability ensures you receive a product that fulfills your EMI shielding requirements while integrating smoothly into your facility's existing design.
Durability and dependability are paramount in RF shielding solutions. These RF shielded insulated windows are constructed to perform reliably across a wide temperature spectrum, ranging from -40°C to 85°C. This extensive operating temperature range renders them suitable for diverse environments, from extreme outdoor conditions to climate-controlled indoor spaces. Whether installed in a cold storage facility or a high-heat industrial plant, the window consistently delivers effective EMI blocking performance without compromising its shielding integrity.
Installation flexibility represents another significant advantage of our RF Shielded Windows. They can be mounted using either flush mount or surface mount methods, depending on your facility's architectural constraints and aesthetic preferences. Flush mount installation enables the window to sit seamlessly within the wall, offering a clean, unobtrusive finish. Conversely, the surface mount option provides a simpler installation process and proves ideal for retrofitting existing structures where wall modifications are limited. This adaptability ensures efficient and effective deployment across a broad range of construction scenarios.
Our EMI blocking window is fabricated using advanced materials and technology that maximize RF signal attenuation while preserving clear visibility and structural robustness. The design incorporates specialized conductive layers that reflect and absorb electromagnetic waves, preventing their passage through the window. This makes the RF Shielded Window an indispensable element in environments demanding stringent electromagnetic compatibility (EMC) control.
In summary, the RF Shielded Windows combine robust EMI resistance with customizable sizing, durable performance across an extensive temperature range, and versatile installation options. Whether you need a small viewing port or a large shielded panel, our product offers a reliable solution to protect your electronic systems from disruptive RF interference. By selecting our RF shielded insulated window, you ensure enhanced protection, operational reliability, and adherence to industry standards in electromagnetic shielding.

Features:

• Product Name: RF Shielded Windows
• Surface Finish: Tin Plating
• Shielding Effectiveness: Up To 100 dB
• Installation Type: Flush Mount or Surface Mount
• Frame Material: Aluminum
• Door Size: 1.5m x 1.2m
• Electromagnetic interference resistant window design
• High-performance RF shielded glass window
• EMI blocking window for superior protection against electromagnetic interference

Technical Parameters:

Applications:

The Jovi RF Shielded Windows, model 1-cf-7, are purpose-engineered to deliver outstanding electromagnetic interference (EMI) protection across a range of critical environments. Produced in China with rigorous quality control, these windows incorporate a shielded glass unit that effectively rejects unwanted radio frequency (RF) signals, ensuring a secure and disturbance-free space. The RF proof pane is essential for preserving the functionality of sensitive electronic equipment, making it an ideal solution for hospital equipment rooms and other medical facilities where dependable EMI shielding is indispensable.
These EMI blocking windows feature a robust frame construction, available in either wood or aluminum alloy, both finished with a durable tin-plated surface. This design not only boosts shielding effectiveness but also ensures sustained durability and visual appeal. With an operating temperature range spanning -40°C to 85°C, the Jovi RF Shielded Windows perform reliably across diverse climates, from cold storage environments to high-temperature industrial settings, without any degradation in performance.
The applications for the Jovi RF Shielded Windows are wide-ranging. In hospitals, these windows are vital for protecting diagnostic and monitoring equipment from external EMI, guaranteeing accurate readings and consistent operation. They are also extensively employed in research laboratories, electronic testing facilities, and communication hubs, where RF shielding is necessary to prevent data corruption and signal attenuation.
Furthermore, packaging options such as wooden crates or customized solutions ensure safe transport and facilitate straightforward installation, accommodating various project specifications. These windows are ideally suited for environments demanding rigorous EMI control, including military installations, data centers, and broadcasting studios. Their advanced shielded glass unit and distinctive features position them as an essential component in any setting requiring protection against electromagnetic disturbances.
In summary, Jovi's RF Shielded Windows model 1-cf-7 present a reliable and efficient EMI blocking solution, combining state-of-the-art shielded glass with versatile frame materials and rugged construction. Whether deployed in hospital equipment rooms, specialized laboratories, or high-security communication centers, these RF proof panes provide peace of mind by safeguarding sensitive environments from electromagnetic interference.
