Customizable Sizes and Shapes RF Shielding Window with 98.5% Transparency and Double Glass for Secure Communication

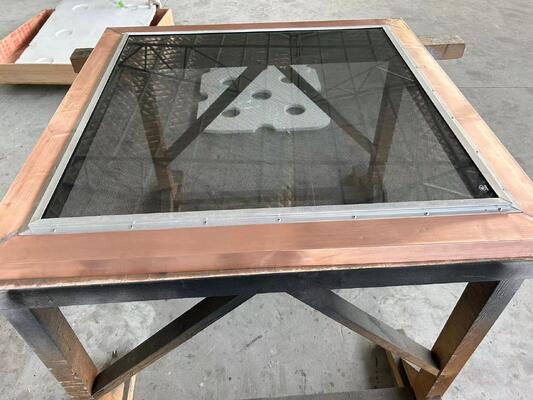

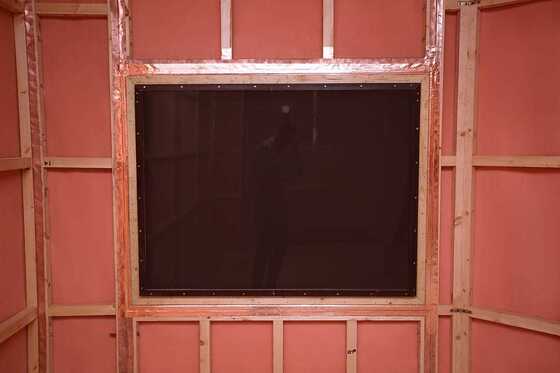

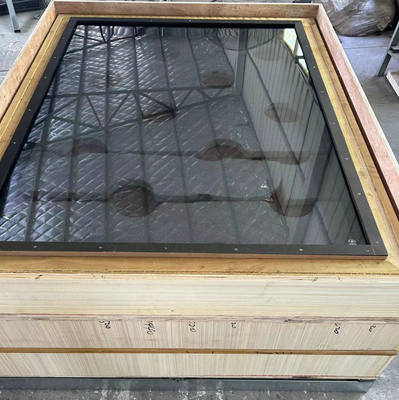

The JOVVI 98.5% Transparency MRI Window delivers exceptional optical clarity through its glass-mesh-glass construction, providing excellent patient observation with minimal visual obstruction. The high transparency is achieved through careful selection of glass materials and optimization of the mesh pattern to balance RF shielding and visual clarity.

The window maintains 100–110 dB RF attenuation across the 10 MHz to 130 MHz frequency band through the brass mesh shielding layer. The mesh uses 36 or 60 mesh per inch construction with black coating to reduce glare. The 5mm tempered glass and 8mm insulating hollow glass provide structural strength and acoustic insulation.

The 98.5% transparency is particularly valuable for patient monitoring during scanning, enabling technologists to observe patient position, motion, and comfort throughout the imaging procedure. The clear observation capability is especially important for pediatric, elderly, or anxious patients.

JOVVI's window manufacturing processes are optimized to maximize transparency while maintaining shielding performance. The factory's quality control includes visual inspection of glass quality and verification of mesh alignment to ensure optical clarity.

The factory's experience with MRI window applications includes optimization of mesh density and pattern for both shielding performance and transparency. JOVVI's engineering team can provide guidance on window placement for optimal visibility.
