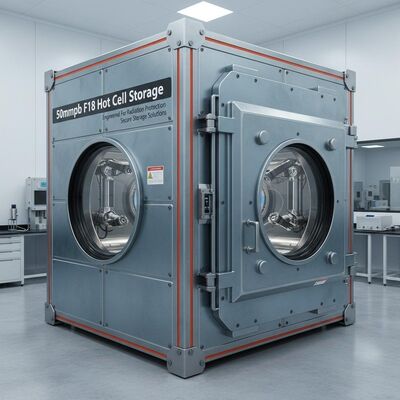

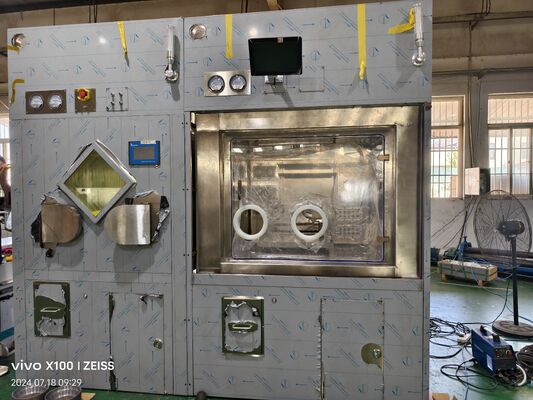

50mmpb F18 Hot Cell Storage Engineered For Radiation Protection Secure Storage Solutions

Product Description:

1 Fit for Bio-clean cGMP compliant work area

1.1 One-piece stainless steel work area with vertical laminar negative-pressure ventilation system

1.2 Fully externally ventilated air cleaning system

1.3 Cleanliness level: Class A (ISO 100)

1.4 Air supply: Vertical laminar flow

1.5 Laminar air velocity: 0.35 - 0.56 m/sec

1.6 Required airflow: 800 m³/h 1.7 Sealing: Isolated clean rounded corner stainless steel inner chamber 1.8 Air supply filtration: Fully efficient HEPA 99.995% @ 0.5µm (H13) 1.7 Sealing method: Isolated clean rounded angle stainless steel inner chamber

1.8 Air supply filtration: Fully efficient HEPA 99.995% @ 0.5µm (H13)

1.9 Exhaust filtration: Radioactive gas filter adsorption

2 Lead shielding in accordance with ICRP Radiation Environment Safety Standard

2.1 Front, side and handhole doors, shielding of 50mmPb

3 Ergonomic design of operating control panel 3.1 Front door opening for easy internal cleaning

3.2 Control: HMI for control and feedback of all information

3.3 Visible leaded glass window: 320 mm (w) * 220 mm (h)

3.4 Dose monitoring display: integrated in HMI

4 Dimensions and weight

4.1 External dimensions: Width 1180 mm Depth 760 mm Height 2200 mm

4.2 Internal dimensions: Internal dimensions: 856(w) * 760 mm Height 2200 mm Dimensions: 856(w)*476.5(d)*568(h)

4.3 Accessories: lighting, ozone sterilizer, UV sterilizer, power socket, etc.

4.4 Power supply: single-phase 220 V / 50 Hz, 10 KVA

4.5 Weight: 2800kg

5 RADIOACTIVE ARTICLES SHIELDING TRANSMITTING ASSEMBLY

5.1 Functions: Transmit radioactive substances or F18 lead canisters into the workplace in low level without opening the shielding door of the hot room. The radioactive materials or F18 lead canisters can be transported into (or out of) the working area without opening the shielding door of the hot room, which reduces the intensity of manual operation and unnecessary radiation, and improves the efficiency of dispensing operation.

5.2 Shielded tray: made of stainless steel 304, ¢ 115 mm, 50 mm pb

5.3 Transmission mode: linear drive, speed 32 mm/S, thrust 3500 N

5.4 Protection level: IP 51, IP65 or IP66 5.5 Power supply drive: 12 / 24 V DC

6 Shielding of the activator ionization chamber

6.1 Lifting and adjusting platform at the bottom of the measuring well for fixed adjustment of the height of the activator ionization chamber

Measuring well shielding: 50 mm Pb

6.2 Real-time dose monitoring and radiation safety interlock

6.3 Functions: Real-time display of the radiation level inside the hot cell and provision of radiation warnings. Dose thresholds can also be pre-set and the hot chamber shielding door chain control to prevent misuse of unnecessary radiation on personnel and the environment

Built-in 1 semiconductor detector

6.4 Energy range: 50 KeV --- 1.5 MeV

6.5 Dose range: 0 uSv/h --- 9999 uSv/h

6.6 Threshold setting: Arbitrarily set the chain thresholds

Applications:

The JOVI Nuclear Radiation Protection product, model number 1-CF-20, is meticulously designed to provide superior safety and shielding in environments where radioactive materials are handled. Originating from China and certified by ISO9001, this high-quality equipment is ideal for applications involving I131 Hot Cell and F18 Hot Cell operations. These hot cells are critical in the pharmaceutical and medical isotope production industries, where containment and protection against radiation are paramount.

Primarily constructed from galvanized steel and lead sheet, the JOVI 1-CF-20 ensures maximum radiation attenuation, making it suitable for nuclear medicine facilities, research laboratories, and industrial settings where radioactive isotopes like I131 and F18 are used. Its robust build combined with safety features powered by a 50HZ/10A/220V power supply with integrated safety protection guarantees reliable and continuous operation.

The product can be installed using fixed panels or as wearable gear, providing flexibility depending on the operational needs and space constraints of the facility. This adaptability is especially useful in scenarios requiring both stationary protection and mobile shielding, such as during maintenance, isotope handling, or emergency response situations. The wooden case packaging ensures safe transport, while the storage requirement of a dry and ventilated place helps maintain the integrity and longevity of the product.

Disinfection is efficiently handled through ultraviolet and ozone methods, ensuring that the environment within and around the hot cells remains sterile and free from contamination. This feature is particularly important in pharmaceutical production settings where purity and safety standards are stringent.

Customization:

Brand Name: JOVI

Packaging Details: Wooden Case

Delivery Time: 45 Working Days

Payment Terms: TT In Advance

Certifications: Meets International Safety Standards

Product Type: Galvanized Steel & Lead Sheet

Storage Condition: Dry And Ventilated Place

Model: Jovvi-HC-50mmpb

Installation Method: Fixed Panels, Wearable Gear

Our Nuclear Radiation Protection products, including the Nuclear Radiation Hot Cell and F18 Hot Cell, are designed to ensure maximum safety and durability. The Nuclear Radiation Hot Cell features galvanized steel and lead sheet construction, certified to meet international safety standards, and is available with flexible installation methods such as fixed panels and wearable gear for versatile protection solutions.

Support and Services:

Our Nuclear Radiation Protection product is backed by comprehensive technical support and services to ensure optimal performance and safety. We provide expert guidance on installation, calibration, and maintenance to help you achieve accurate radiation monitoring and protection.

Our support team is available to assist with troubleshooting, product updates, and customization to meet your specific requirements. We offer training sessions and detailed documentation to empower your staff with the knowledge needed for effective operation.

Regular maintenance services and calibration checks are recommended to maintain the reliability and precision of your radiation protection equipment. We also provide software updates and hardware upgrades to keep your systems up-to-date with the latest technological advancements.

For any technical inquiries or service requests, our dedicated support specialists are ready to provide timely and professional assistance, ensuring your nuclear radiation protection solutions operate safely and efficiently.

Packing and Shipping:

Our Nuclear Radiation Protection product is carefully packaged using high-quality, durable materials to ensure maximum safety and integrity during transit. Each unit is securely enclosed in a protective casing, cushioned with shock-absorbent foam to prevent any damage from impacts or vibrations.

The packaging is designed to be tamper-evident and moisture-resistant, providing an additional layer of protection against environmental factors. Clear labeling with handling instructions and safety warnings are prominently displayed to ensure proper care throughout the shipping process.

We partner with reliable shipping carriers that specialize in handling sensitive and hazardous materials, guaranteeing timely and secure delivery. Tracking information is provided to keep customers informed from dispatch to arrival.

Upon receipt, customers are advised to inspect the package for any signs of damage and report any issues immediately to our support team to ensure prompt resolution.
