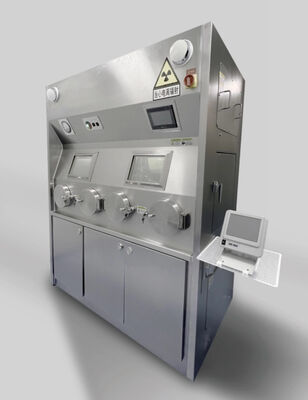

I131 Hot Cell Featuring 50HZ10A220V Power Supply Safety Protection Providing Solution for Radioactive

Product Description:

1 Fit for Bio-clean cGMP compliant work area

1.1 One-piece stainless steel work area with vertical laminar negative-pressure ventilation system

1.2 Fully externally ventilated air cleaning system

1.3 Cleanliness level: Class A (ISO 100)

1.4 Air supply: Vertical laminar flow

1.5 Laminar air velocity: 0.35 - 0.56 m/sec

1.6 Required airflow: 800 m³/h 1.7 Sealing: Isolated clean rounded corner stainless steel inner chamber 1.8 Air supply filtration: Fully efficient HEPA 99.995% @ 0.5µm (H13) 1.7 Sealing method: Isolated clean rounded angle stainless steel inner chamber

1.8 Air supply filtration: Fully efficient HEPA 99.995% @ 0.5µm (H13)

1.9 Exhaust filtration: Radioactive gas filter adsorption

2 Lead shielding in accordance with ICRP Radiation Environment Safety Standard

2.1 Front, side and handhole doors, shielding of 50mmPb

3 Ergonomic design of operating control panel 3.1 Front door opening for easy internal cleaning

3.2 Control: HMI for control and feedback of all information

3.3 Visible leaded glass window: 320 mm (w) * 220 mm (h)

3.4 Dose monitoring display: integrated in HMI

4 Dimensions and weight

4.1 External dimensions: Width 1180 mm Depth 760 mm Height 2200 mm

4.2 Internal dimensions: Internal dimensions: 856(w) * 760 mm Height 2200 mm Dimensions: 856(w)*476.5(d)*568(h)

4.3 Accessories: lighting, ozone sterilizer, UV sterilizer, power socket, etc.

4.4 Power supply: single-phase 220 V / 50 Hz, 10 KVA

4.5 Weight: 2800kg

5 RADIOACTIVE ARTICLES SHIELDING TRANSMITTING ASSEMBLY

5.1 Functions: Transmit radioactive substances or F18 lead canisters into the workplace in low level without opening the shielding door of the hot room. The radioactive materials or F18 lead canisters can be transported into (or out of) the working area without opening the shielding door of the hot room, which reduces the intensity of manual operation and unnecessary radiation, and improves the efficiency of dispensing operation.

5.2 Shielded tray: made of stainless steel 304, ¢ 115 mm, 50 mm pb

5.3 Transmission mode: linear drive, speed 32 mm/S, thrust 3500 N

5.4 Protection level: IP 51, IP65 or IP66 5.5 Power supply drive: 12 / 24 V DC

6 Shielding of the activator ionization chamber

6.1 Lifting and adjusting platform at the bottom of the measuring well for fixed adjustment of the height of the activator ionization chamber

Measuring well shielding: 50 mm Pb

6.2 Real-time dose monitoring and radiation safety interlock

6.3 Functions: Real-time display of the radiation level inside the hot cell and provision of radiation warnings. Dose thresholds can also be pre-set and the hot chamber shielding door chain control to prevent misuse of unnecessary radiation on personnel and the environment

Built-in 1 semiconductor detector

6.4 Energy range: 50 KeV --- 1.5 MeV

6.5 Dose range: 0 uSv/h --- 9999 uSv/h

6.6 Threshold setting: Arbitrarily set the chain thresholds

In summary, the Jovvi-HC-50mmpb Nuclear Radiation Protection product is an exceptional choice for safeguarding personnel and environments exposed to nuclear radiation. Its adaptable installation methods, secure closure system, ease of cleaning, and compliance with international safety standards make it a comprehensive solution for Nuclear Radiation Hot Cell and F18 Hot Cell applications. By choosing the Jovvi-HC-50mmpb, users invest in a product that combines advanced protective technology with practical usability, ensuring a safer working environment in the challenging field of nuclear radiation handling.

Applications:

The JOVI Nuclear Radiation Protection product, model number 1-CF-20, is expertly designed to provide superior shielding against harmful gamma and X-ray radiation. Manufactured in China and certified with ISO9001, this Class A grade protective equipment ensures the highest standards of safety and reliability for various radiation-intensive environments. Its construction from galvanized steel and lead sheet offers robust protection, making it an ideal choice for critical applications in nuclear medicine and research facilities.

This product is particularly suited for use in F18 Hot Cell and I131 Hot Cell environments, where radiation exposure levels are significantly high. In these specialized hot cells, precise shielding is essential to protect operators and sensitive equipment from the intense radiation emitted during the handling and processing of radioactive isotopes.

Customization:

JOVI offers customized Nuclear Radiation Protection solutions with our model 1-CF-20, designed specifically for applications such as I131 Hot Cell and Nuclear Medical Radiation environments. Manufactured in China and certified to ISO9001 standards, our Radiation Protection Lead Cans meet international safety standards to ensure maximum protection.

Our product features galvanized steel and lead sheet construction, providing durable and reliable shielding. The adjustable straps allow for a secure fit, enhancing safety and comfort during use. Additionally, the design is easy to clean and maintain, ensuring long-term usability in demanding radiation protection settings.

We provide packaging in sturdy wooden cases to guarantee safe delivery.

Choose JOVI for reliable, certified, and fully customizable Radiation Protection Lead Cans tailored to your nuclear medical radiation needs.

Support and Services:

Our Nuclear Radiation Protection product is designed to ensure maximum safety and reliability in environments exposed to nuclear radiation. For technical support, our team of experts is available to assist with installation, calibration, troubleshooting, and maintenance to guarantee optimal performance.

We provide comprehensive services including system diagnostics, firmware updates, and user training to help you effectively operate and maintain your radiation protection equipment. Our support ensures compliance with the latest safety standards and regulatory requirements.

In addition, we offer customized solutions tailored to your specific operational needs, ensuring that your nuclear radiation protection system integrates seamlessly with your existing infrastructure.

For ongoing service, we recommend regular inspections and preventive maintenance programs to extend the lifespan and accuracy of your equipment. Our commitment is to provide timely and efficient support to minimize downtime and enhance safety in your facility.

Packing and Shipping:

Product Packaging and Shipping

Our Nuclear Radiation Protection products are carefully packaged to ensure maximum safety and integrity during transit. Each item is securely sealed in anti-static, radiation-resistant materials and cushioned with impact-absorbing foam to prevent any damage.

Packaging is clearly labeled with handling instructions and radiation safety warnings to comply with regulatory standards. We use durable outer cartons designed to withstand rough handling and environmental factors.

Shipping is carried out through trusted carriers with expertise in handling sensitive and hazardous materials. Tracking information is provided to customers for full shipment visibility.

We prioritize timely delivery and adhere to all international shipping regulations to guarantee that your Nuclear Radiation Protection products arrive safely and on schedule.
