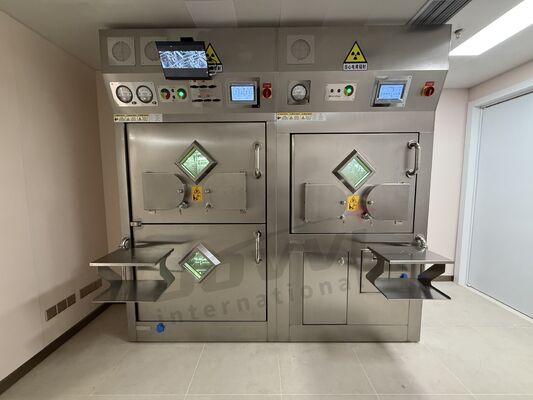

50mmpb Nuclear Radiation Hot Cell Certified Under International Safety Standards Providing Safe and Radiation Material

Product Description:

Work area conforming to cGMP biological cleanliness level

Integrated stainless steel work area with vertical laminar negative pressure ventilation system

Cleanliness level: Class A (ISO 100)

Air supply mode: vertical laminar flow

Laminar wind speed: 0.35-0.56m /sec

Air volume demand: 800 m³/h

Sealing mode: isolated clean arc Angle stainless steel inner cavity

Air filtration: fully efficient HEPA 99.995% @ 0.5µm (H13)

Exhaust air filtration: radioactive gas filter adsorption

Lifting system: double lifting platform F18-FDG, Tc 99m one each

Lead shielding conforming to ICRP radiation environmental safety standards

Model ○ Front shield 50mmPb ○ bottom side shield 50mmPb ○ Side, top, back shield 40mmPb

Waste barrel: 20mmPb

Ionization chamber shielding of the activity meter

At the bottom of the measuring well, there is a lifting adjustment platform for fixed adjustment of the height of the ionization chamber of the activity meter

Measurement well shielding: 50mm pb

Measuring well size: 300 * 300 * 600 mm (w * l * h)

Real-time dose monitoring and radiation safety interlock device

Function: Real-time display of thermal room radiation level, provide radiation warning. In addition, the dose threshold can be preset and the shielding door of the thermal chamber can be interlocked to prevent unnecessary radiation to the personnel and the environment caused by incorrect operation

Built-in 1 semiconductor detector

Energy range: 50 KeV-- 1.5 MeV

The dose range was from 0 uSv/h to 9999 uSv/h

Threshold setting: Arbitrarily set the linkage threshold

Ergonomically designed operation control panel

Control: The human-machine interaction interface controls and feeds back all information

Visible lead glass window: 320 mm (w) * 220 mm (h)

Dose monitoring display: integrated and human-computer interaction interface

Dimensions

Accessories: Accessories: lamp, ozone emitter sterilization facility, power

socket,Power supply: single-phase 220 V / 50 Hz, 3kw

External dimensions: 1175*1151*2400mm

Operating space size: 850*590*680mm

Applications:

The JOVI Nuclear Radiation Protection product, model number 1-CF-20, is a high-grade solution designed for effective radiation shielding in various critical applications. Manufactured in China and certified under ISO9001, this product meets international safety standards, ensuring reliable protection in environments exposed to nuclear radiation. Constructed from galvanized steel and lead sheets, it offers Class A grade durability and superior shielding performance, making it ideal for demanding radiation protection needs.

This product finds extensive use in radiation protection lead cans, which are essential for safely storing and transporting radioactive materials. These lead cans provide robust containment that minimizes radiation leakage, protecting personnel and the environment. The JOVI lead cans are easy to clean and maintain, thanks to their high-quality materials and thoughtful design, ensuring long-term usability and hygiene.

In nuclear radiation hot cell applications, the JOVI 1-CF-20 model excels by providing a secure and shielded environment for handling highly radioactive substances. The hot cells are critical for the safe manipulation, examination, and processing of radioactive materials, and the JOVI product’s galvanized steel and lead construction ensures maximum protection against radiation exposure. The product’s packaging in wooden cases guarantees safe delivery, with a typical lead time of 45 working days from order placement.

Specifically designed for I131 hot cell scenarios, this radiation protection solution offers precise shielding necessary for handling iodine-131 isotopes commonly used in medical and industrial fields. Its ability to maintain safety standards in such specialized environments underscores its versatility and reliability.

Customization:

JOVI offers customized Nuclear Radiation Protection products designed to meet your specific needs. Our model 1-CF-20 Radiation Protection Lead Cans are manufactured using high-quality galvanized steel and lead sheets, ensuring superior durability and safety. Originating from China and certified with ISO9001, these products meet international safety standards, providing reliable protection in environments such as I131 Hot Cell and Nuclear Radiation Hot Cell applications.

Trust JOVI for top-quality Nuclear Radiation Protection Lead Cans designed specifically for I131 Hot Cell and Nuclear Radiation Hot Cell environments.

Support and Services:

Our Nuclear Radiation Protection product is designed to offer reliable and accurate monitoring to ensure safety in environments exposed to nuclear radiation. For technical support, we provide comprehensive assistance including installation guidance, calibration services, and troubleshooting to optimize product performance.

Our support team is equipped with extensive expertise in radiation detection technology and can assist with software updates, hardware maintenance, and compliance with regulatory standards. We also offer training sessions and detailed user manuals to help users maximize the benefits of the product.

In addition, we provide regular maintenance services and warranty options to ensure long-term reliability. Customized service packages are available to meet the specific needs of different operational environments.

For further information on technical support and service plans, please refer to the product documentation or visit our official website.

Packing and Shipping:

Product Packaging:

The Nuclear Radiation Protection product is carefully packaged using high-quality, durable materials to ensure maximum safety during transportation. Each unit is securely wrapped in anti-static and shock-absorbing foam to prevent any damage from impacts or vibrations. The product is then placed inside a sturdy, sealed box with clear labeling indicating its contents and handling instructions. Additional protective measures include moisture-resistant liners and tamper-evident seals to maintain product integrity.

Shipping:

We ship the Nuclear Radiation Protection product using reliable carriers with experience in handling sensitive and specialized equipment. All shipments are tracked and insured to guarantee safe delivery. Depending on the destination, shipping options include expedited, standard, or freight services to meet customer needs. We also comply with all regulatory requirements for transporting radiation-related products, ensuring safe and legal delivery to your location.
