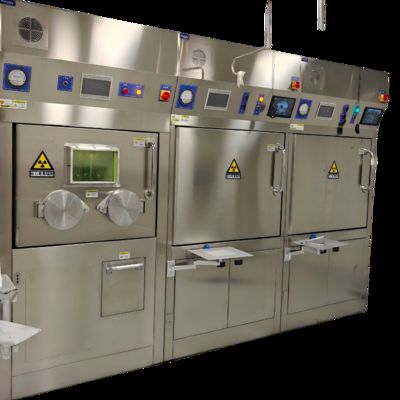

GMP Standard Synthesis Hot Cell for Radiopharmaceutical Production Line with Class A B C Cleanliness and 10mmpb 20mmpb 50mmPb 100mmPb Lead Equivalent

  • GMP Standard Synthesis Hot Cell for Radiopharmaceutical Production Line with Class A B C Cleanliness and 10mmpb 20mmpb 50mmPb 100mmPb Lead Equivalent
  • GMP Standard Synthesis Hot Cell for Radiopharmaceutical Production Line with Class A B C Cleanliness and 10mmpb 20mmpb 50mmPb 100mmPb Lead Equivalent
Place of Origin China
Brand Name Jovi
Model Number JVVMED-HC
Minimum Order Quantity 1 Set
Price $35000~$95623
Packaging Details In Wooden Case
Delivery Time 25 Working Days After Receiving Your Payment
Payment Terms T/T In Advance
Supply Ability 100sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cleanliness Class A B C Lead Equivalent 10mmpb 20mmpb 50mmPb 100mmPb
Material Stainless Steel Structure,Lead Bricks Operation System Artificial Intelligence Control
Purification Method Active Carbon Filter,Hepa Filtration, Disinfection Method Ultraviolet Light And Ozone
Alternative Options Manual Dispenser,Automatic Dispenser Product Name Synthesis Hot Cell For Radiopharmaceutical Production Line GMP Standard
Highlight

GMP Standard Synthesis Hot Cell

,

Real Time Dose Monitoring Hot Cell

,

HEPA Filtration Radiopharmaceutical Production Hot Cell
Leave a Message
Product Description
Synthesis Hot Cell For Radiopharmaceutical Production Line GMP Standard With In Real Time Dose Monitoring With Hepa Filtration Active Carbon Filter Negative Pressure
Key Characteristics of Radiopharmaceutical Synthesis Hot Cells
The synthesis hot cell (also known as a synthesis shielding box or hot cell) serves as the core equipment in radiopharmaceutical production processes. Its design ensures operator safety, environmental protection, and product integrity with these essential features:
1. Radiation Shielding
The most critical safety feature, providing effective shielding against high-energy gamma rays or neutrons emitted by radionuclides.
  • Materials: High-density lead (Pb) bricks/plates as primary shielding, complemented by lead glass (viewing windows) and steel (structural support)
  • Thickness: Precisely calculated based on radionuclide type (F-18, Ga-68, Lu-177) and activity levels, ranging from centimeters to tens of centimeters to maintain external radiation below 2.5 μSv/h
2. Containment, Negative Pressure & HEPA Filtration
  • Containment: Hermetically sealed system prevents radioactive aerosol/volatile substance leakage
  • Negative Pressure System: Maintains lower internal pressure than surrounding environment, ensuring inward airflow to contain contaminants
  • HEPA Filtration: Multi-stage High-Efficiency Particulate Air filters capture radioactive particles, with activated carbon filters for volatile radionuclides (e.g., I-131)
3. Remote Manipulation & Automation
Advanced systems eliminate direct operator contact with radioactive materials:
  • Manipulators: Master-slave systems or electric-powered units controlled via joysticks/touchscreens
  • Full Automation: Computer-controlled synthesizers and Chemical Process Modules (CPM) execute complete synthesis processes (heating, cooling, liquid transfer, purification) with minimal human intervention
4. Product Protection & Aseptic Environment
Ensures radiopharmaceuticals meet sterile, pyrogen-free injection standards:
  • Clean Environment: ISO Class 7 or 5 (Grade C/A) cleanliness standards
  • Transfer Systems: Dedicated pass-through boxes with interlocking mechanisms and UV decontamination
  • Surface Materials: Seamless, cleanable stainless steel resistant to frequent disinfection
5. Shielding Viewing Window
Multi-layered lead glass windows provide visibility while maintaining equivalent radiation shielding to surrounding walls.
6. Utilities Integration
Comprehensive support systems for production processes:
Utility Function
Electrical Powers instruments, manipulators, lighting, and sockets
Pneumatic Supplies compressed air/inert gases for valves and drying
Vacuum Enables filtration and liquid transfer
Cooling/Ventilation Maintains stable temperature via cold traps and circulation fans
7. Monitoring & Safety Systems
  • Radiation Monitoring: Continuous internal radiation level detection
  • Pressure Monitoring: Real-time negative pressure status with alarm triggers
  • Temperature/Smoke Sensors: Prevents overheating and fire incidents
  • Safety Interlocks: Prevents unauthorized access to doors/pass-through boxes
Summary
Modern radiopharmaceutical synthesis hot cells represent sophisticated engineering systems integrating radiation shielding, containment, automation, and sterile control. Designed to meet strict GMP standards, they enable safe, efficient production while protecting personnel and the environment. Current development trends emphasize higher integration, automation, and modularization to reduce operational complexity and radiation exposure risks.
