Dual Sythesis Hot Cell 100mmPb For FDG Production Line Of Nuclear Medical Department

  • Dual Sythesis Hot Cell 100mmPb For FDG Production Line Of Nuclear Medical Department
Place of Origin China
Brand Name Jovi
Model Number 1-CF-56
Minimum Order Quantity 1 set
Price USD35000/piece
Packaging Details in wooden case
Delivery Time 25 working days after receiving your payment
Payment Terms T/T in advance
Supply Ability 1000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Equivalent Cusztomized Design Protection Level 10Pbmm 20mmPB 50Pb 100Pb
Ventilation Filter Method Active Carbon Application Nuclear Medicine Field/ Radiation Shielding/ Gamma
Material Galvanized Steel Panel Material Usage Radiation Shielding Products
Accessory Tungsten Radiation Shielding Color Stainless Steel Color
Product Name Dual Sythesis Hot Cell 100mmPb For FDG Production Line Of Nuclear Medical Department Disinfection Method UV And Ozone
Highlight

100mmPb hot cell for FDG production

,

nuclear medical department radiation shield

,

dual synthesis hot cell with lead shielding
Leave a Message
Product Description
Dual Synthesis Hot Cell 100mmPb for FDG Production Line
Product Specifications
Attribute Value
Lead equivalent Customized Design
Protection level 10Pbmm 20mmPB 50Pb 100Pb
Ventilation filter method Active Carbon
Application Nuclear Medicine Field/Radiation Shielding/Gamma
Material Galvanized Steel Panel Material
Usage Radiation Shielding Products
Accessory Tungsten Radiation Shielding
Color Stainless Steel Color
Disinfection Method UV and Ozone
Product Overview

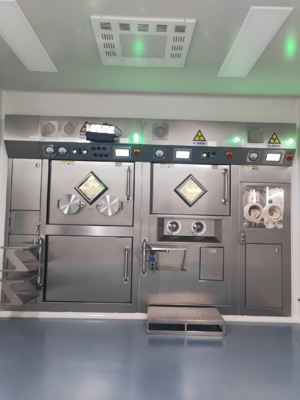

The JVVMED-DUHCS75-RFM features complete isolation protection with a clean arc stainless steel inner cavity, specifically designed for positron radiopharmaceutical synthesis. This system meets stringent lead shielding requirements while maintaining cGMP clean pharmaceutical standards during synthesis operations.
Hot Chamber Components
  • Control Area: Located at the top with independent ventilation, control unit, gas valve, and radiation monitoring for operational safety
  • Working Area: Middle section with front shield door access, designed to accommodate various market-available synthesizers
  • Auxiliary Area: Bottom section providing essential support functions for hot chamber operations
Technical Parameters
cGMP Biological Cleanliness Level Working Area:
  • Dual synthetic lead chamber with seamless stainless steel welding
  • Cleanliness: Class C
  • Negative pressure: -50Pa to -200Pa
  • Demand air volume: 300 m³/h
  • Sealing: Second Level Standard Sealing
  • Air supply: High efficiency filter
  • Exhaust: Activated carbon filter
Lead Shielding (ICRP Radiation Safety Standards):
  • Front side: 75mmPB
  • Left/right side: 60mmPB
  • Target line shielding: 50mmPB
  • Surface radiation dose: < 5μSv/h @3Ci-F18
  • 30cm radiation dose: < 1μSv/h @3Ci-F18
Dimensions:
  • Internal: 850mm (W) × 619mm (D) × 700mm (H)
  • External: 1185mm (W) × 1117mm (D) × 2400mm (H)
  • Accessories: Lamp, UV lamp, ozone sterilization device, power socket
Applications
This premium nuclear radiation protection product is essential for nuclear medicine facilities, hot cells, and laboratories handling radioactive materials. Its galvanized steel construction and lead-lined design provide durable protection against gamma radiation while meeting strict nuclear safety standards.
Ideal for creating shielded environments, storing radioactive materials securely, or transporting radiation protection containers. The hot cell design makes it particularly suitable for specialized applications requiring high-level radiation shielding.
