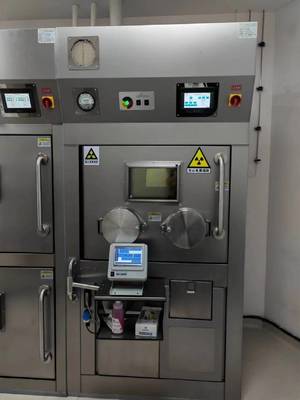

Dual Synthesis Hot Cell with Galvanized Steel Panel and UV Ozone Disinfection for FDG Production

  • Dual Synthesis Hot Cell with Galvanized Steel Panel and UV Ozone Disinfection for FDG Production
  • Dual Synthesis Hot Cell with Galvanized Steel Panel and UV Ozone Disinfection for FDG Production
Place of Origin China
Brand Name Jovi
Model Number 1-CF-56
Minimum Order Quantity 1 set
Price USD35000/piece
Packaging Details in wooden case
Delivery Time 25 working days after receiving your payment
Payment Terms T/T in advance
Supply Ability 1000pcs

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Equivalent Cusztomized Design Protection Level 10Pbmm 20mmPB 50Pb 100Pb
Ventilation Filter Method Active Carbon Application Nuclear Medicine Field/ Radiation Shielding/ Gamma
Material Galvanized Steel Panel Material Usage Radiation Shielding Products
Accessory Tungsten Radiation Shielding Color Stainless Steel Color
Product Name Dual Sythesis Hot Cell 100mmPb For FDG Production Line Of Nuclear Medical Department Disinfection Method UV And Ozone
Highlight

100mmPb hot cell for FDG production

,

nuclear medical department radiation shield

,

dual synthesis hot cell with lead shielding
Leave a Message
Product Description
Dual Synthesis Hot Cell 100mmPb For FDG Production Line
Model: JVVMED-DUHCS75-RFM
This nuclear radiation protection system features complete isolation protection with a clean arc stainless steel inner cavity, specifically designed for positron radiopharmaceutical synthesis. It meets stringent requirements for lead shielding and biological cleanliness, complying with both radiation safety standards and cGMP pharmaceutical environment requirements.
Hot Chamber Components
  • Control Area: Top section with independent ventilation, control unit, gas valve, and radiation monitoring system
  • Working Area: Middle section with spacious interior for synthesizer installation, accessible via front shield door
  • Auxiliary Area: Bottom section providing support functions for hot chamber operations
Key Features
  • Application: Nuclear Medicine/Radiation Shielding/Gamma Protection
  • Material: Galvanized Steel Panel Construction
  • Lead Equivalent: Customized Design Options
  • Accessory: Tungsten Radiation Shielding
  • Nuclear Safety Certified
Technical Specifications
Parameter Specification
Cleanliness Level Class C (cGMP standard)
Negative Pressure -50Pa to -200Pa
Air Volume 300 m³/h
Sealing Standard Second Level Sealing
Air Supply High Efficiency Filter
Exhaust System Activated Carbon Filter
Lead Shielding (Front) 75mmPb
Lead Shielding (Sides) 60mmPb
Target Line Shielding 50mmPb
Surface Radiation Dose < 5μSv/h @3Ci-F18
30cm Radiation Dose < 1μSv/h @3Ci-F18
Dimensions
Measurement Internal External
Width 850 mm 1185 mm
Depth 619 mm 1117 mm
Height 700 mm 2400 mm
Standard Accessories
  • Lighting System
  • UV Lamp
  • Ozone Sterilization Device
  • Power Sockets
Applications
This high-performance radiation shielding system is essential for nuclear medicine facilities, laboratories, and any environment requiring protection from gamma radiation. Its durable galvanized steel construction and lead-lined design provide reliable protection for handling radioactive materials, with applications including:
  • Positron radiopharmaceutical synthesis
  • Radioactive material storage
  • Radiation shielded work environments
  • Nuclear medicine research facilities
