Effective Nuclear Radiation Protection for Optimal Radiation Control

  • Effective Nuclear Radiation Protection for Optimal Radiation Control
  • Effective Nuclear Radiation Protection for Optimal Radiation Control
Brand Name Jovi
Model Number JVVMED-HC
Minimum Order Quantity 1 Set
Packaging Details In Wooden Case
Delivery Time 25 Working Days After Receiving Your Payment
Payment Terms T/T In Advance

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Lead Equivalent Cusztomized Design Protection Level 10mmpb 20mmpb 50mmPb
Cleaniness Class A Flexibility Flexible For Ease Of Movement
Effectiveness Effectively Blocks And Absorbs Radiation Density High
Closure Secure Closure System Adjustability Adjustable For A Secure Fit
Leave a Message
Product Description
Effective Nuclear Radiation Protection for Optimal Radiation Control
Product Specifications
Attribute Value
Lead Equivalent Customized Design
Protection Level 10mmpb, 20mmpb, 50mmPb
Cleanliness Class A
Flexibility Flexible For Ease Of Movement
Effectiveness Effectively Blocks And Absorbs Radiation
Density High
Closure Secure Closure System
Adjustability Adjustable For A Secure Fit
Product Description
JVVMEG-HCD75-MP-RFM

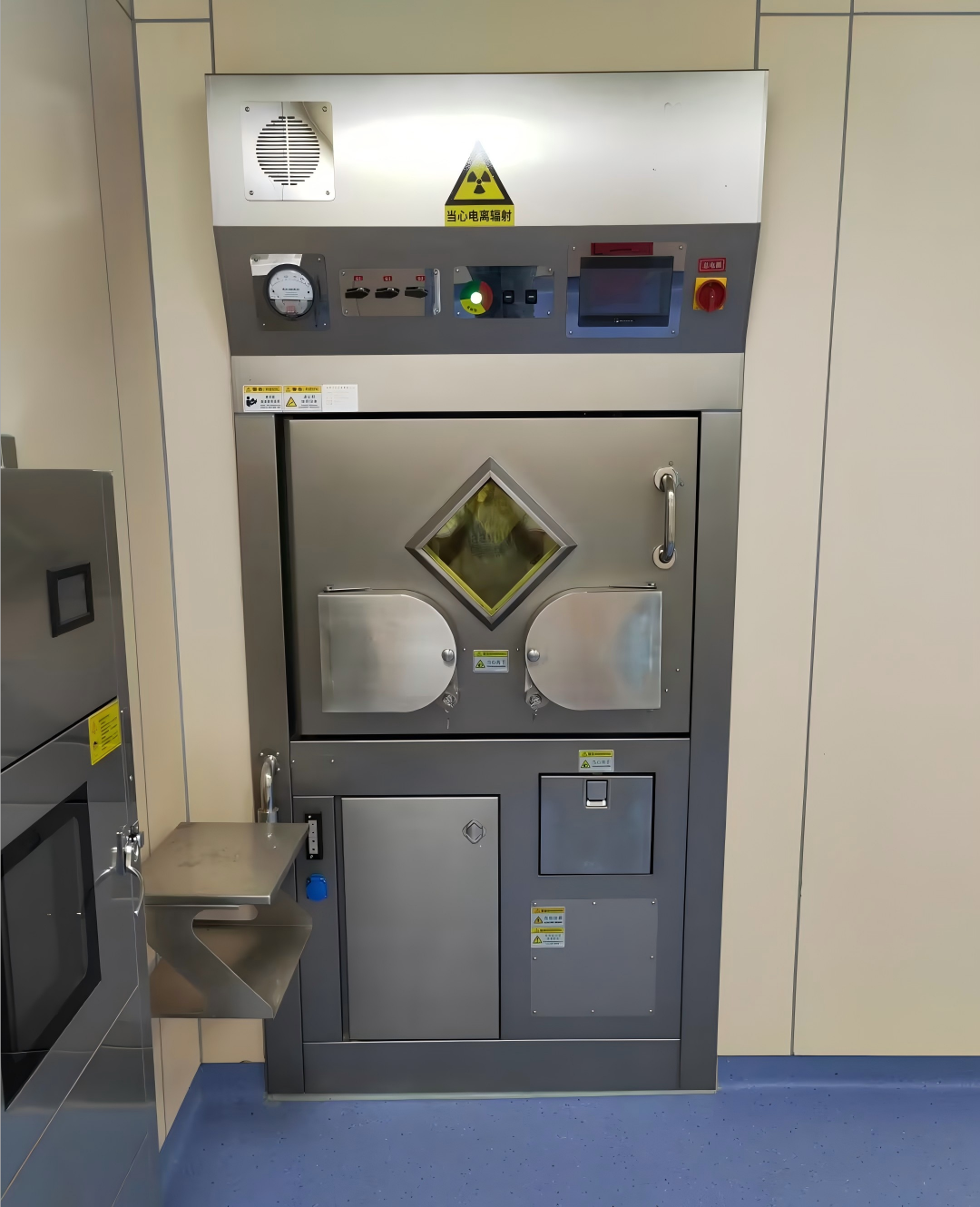

This radiation shielding system is equipped with an air cleaning system featuring negative pressure exhaust air. It is specifically designed for radiation shielding in the repacking process of radioactive drugs.

System Configuration
  • Three-part heating chamber structure with control, working, and auxiliary areas
  • Control panel designed for easy operation and observation
  • Lead glass windows and handling hand holes for safe access
  • Shielding well for activity meter and ionization chamber
Main Technical Parameters
cGMP biological cleanliness level working area:
  • Vertical laminar negative pressure ventilation system with SS314 material
  • Class A grade cleanliness (ISO100)
  • Vertical laminar flow air supply model
  • Laminar wind speed: 0.35-0.56m/s
  • Demand air volume: 500 m³/h
  • Air inflating sealing system
  • HEPA99.995% @0.5μm (H14) exhaust air filtration
  • Radioactive gas filter adsorption
Lead shielding (ICRP radiation safety standards):
  • Front side: 75mmPB
  • Left/right side: 70mmPB
  • Target line shielding: 60mmPB
Ergonomic operation control panel:
  • Human-machine interaction interface for complete control and feedback
  • Visible lead glass windows (320mm × 220mm)
  • Integrated dose monitoring display
Dimensions:
  • Internal: 850mm (w) × 590mm (d) × 680mm (h)
  • External: 1125mm (w) × 1078mm (d) × 2400mm (h)
  • Includes lamp, UV lamp, ozone sterilization device, power socket
Cutting-edge Technology Features
Protection Delivery Device of Radioactive Medicine:
  • Enables transfer of materials without opening hot cell doors
  • Reduces manual operation intensity and unnecessary radiation exposure
  • Stainless steel 304 shield tray (Dia115mm, 60mm pb)
  • Pneumatic/linear transmission mode
Radiation Protection of Ionization Chamber:
  • Lifting adjustment platform for height fixation
  • 70mmpb radioactive protective well
Real-time Dose Monitoring:
  • Displays thermal room radiation levels with warning capability
  • Presettable dose threshold with shielding door interlock
  • Built-in semiconductor detector (50 KeV - 1.5 MeV energy range)
  • Dose range: 0 μSv/h to 9999 μSv/h
Manipulator Parameters:

The joint manipulator features 7 independent movement degrees of freedom (X, Y, Z directions, azimuth rotation, clamp pitch, clamp rotation, clamp opening/closing). Operation is light and flexible with a balance device that meets operation load requirements.
