GE Shielding Mri Equipment Room With Copper Foil Panel RF Cage Installation

Place of Origin China
Brand Name JOVI
Model Number 1-CF-15
Minimum Order Quantity 1 set
Price $26000-$29000/set
Packaging Details in piece and in wooden case
Delivery Time 10 working days after confirming drawing
Payment Terms L/C, T/T
Supply Ability 10 -15 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name GE Shielding Mri Equipment Room With Copper Foil Panel RF Cage Installation Product Items Copper Panel, MRI Door, MRI Window, Filters, Honeycombs, And Others
Packing In Piece And In Wooden Case Packed Service Room Drawing Available
Size Customized Size Decoration Can Also Be Offered Different Decoration Style
High Light

GE Shielding Mri Equipment Room


Copper Foil Panel Mri Equipment Room


RF Cage Mri Room Shielding Material

Leave a Message
Product Description

GE MRI Machine Shielding Room with Copper Foil Panel RF Cage Installation


Product information:

1: Fast and easily installation MRI Room

2. Copper foils panel, MRI door, MRI Window, EMI Filter, Honeycomb, Quench Pipe, Decoration shielding materials according to drawing designed

3. Online Guidance

4. Quench pipe design and producing according to customer drawing

5. wooden case packing and anti-damaged and fast shipment

6. One-stop solution of MRI RF Cage installation



All parts of the shielded system must feature the appropriate conductive materials, and when bonded together, these parts achieve a six-sided box (i.e., walls, ceiling, floor), also known as a "Faraday Cage."

In order to create a practical and cost-effective RF shield, some important considerations for the enclosure design should include:

  • RF Shield Walls/Partitions — RF shields often require three partitions, including the parent wall, the RF shield wall, and the interior finishing wall.
  • RF Flooring — Floors in MRI exam rooms often require a structural subfloor, RF shielding, a protective layer, and other finish materials.
  • RF Door — Common types of RF door systems include single swing, double swing, sliding, double sliding, acoustic, non-acoustic, automatic, and manual.
  • RF Ceiling — An RF shield ceiling is often suspended from the structural deck overhead. Any services that must pass above the MRI scanner room (power, piping, cabling, and ductwork, for example) should do so in the plenum above the RF shield ceiling.
  • RF Windows — The window between the magnet room and control or console room usually requires RF shielding, which is often two layers of copper screens or perforated sheets.
  • RF Filters and Waveguides — Items that penetrate into the RF shield enclosure will require special fittings and materials to maintain shield integrity. RF filters and waveguides are common materials used at the shielding feed-through points.


Product picture:

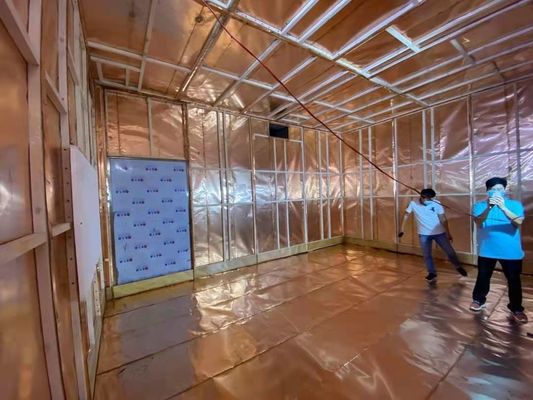

GE Shielding Mri Equipment Room With Copper Foil Panel RF Cage Installation 0


GE Shielding Mri Equipment Room With Copper Foil Panel RF Cage Installation 1



MRI Machine Brand Room Installation:


We can offer different MRI brand room installation, such as Philip, GE, Siemens, UIN, Canon, Hitachi... After we receiving your room drawing, we can design each panel size and comply with our customer's requirement.



MRI Room Materials Packing Pictures:


GE Shielding Mri Equipment Room With Copper Foil Panel RF Cage Installation 2


It is with wooden case and steel to supporting packing. So do not worry about its can be damaged when shipment.





1: Its production time is within 15-20 working days after confirming drawing .


2: About shipment, in usual, it is shipped by sea, it will be more economical. Surely it can also be shipped by railway shipment.


3: If you have any other questions during installation, we can offer online technical guidance.


4. We can offer professional drawing to let our customer's confirmation.
