Antistatic Conductive Copper Tape For Shielded Room
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Heat-Resistant, Waterproof, Antistatic | Material | Copper Foil |
|---|---|---|---|
| Adhesive Side | Single Sided | Use | Shielded |
| Thickness | 0.6mm/0.1mm/customized | Color | Golden,Copper Color |
| Width | 25mm/50mm/customized | Length | 50m/roll |
| Sample | Available | Application | RF Cage/room |
| Product Name | Copper Tape | Carrier | Express |
| Packing | In Carton Box | Keywords | Copper Foil Tape, EMI Tape |
| High Light | antistatic conductive copper tape,shielded room conductive copper tape,antistatic copper foil tape |
||
Product Description

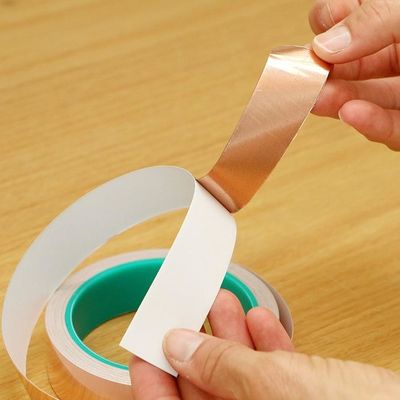

Conductive Adhesive Copper Tape
Product description
Our copper foil tape has strong adhesive force, good electrical conductivity, strong sealing performance, easy to fit,
anti- aging, tortuous use, can be customized according to customers.
This copper foil tape with conductive adhesive Shielding electric guitar to avoid interference, shield the pickup and
control cavities of a guitar. Prevent radiating and interfering, making it an ideal guitar shielding tape option.
Perfect for any guitar builder/ luthier.
| Specifications: | |||||
| Item | Unit | Specification | Texting Standard | Texting Method | Others |
| Copper Thickness | um | 25 | 25+ 3 | ||
| Basis Weight | g/ m2 | 160 | 160+ 10 | ||
| Width | mm | 25 | ± 0. 2mm | ||
| Copper Foil | % | 99. 99 | 99. 99 | ||
| Glue Thickness | um | 25 | 25+ 3 | ASTM- 1000 | |
| Composition | - | ||||
| Total thickness | um | 50 | 50+ 5 | ||
| Steel Adhesion | kg/ 1" | 0. 8 | 0. 8 | ASTM- 1000 | Initial adhesion tester |
| Initial Adhesion | kg/ 1" | 1 | 1 | J. DOW | Electronic Stripping Tester |
| Rentention(cohesion) | kg/ h | 48 | 48 | PSPC- 7 | Viscosity Tester |
| Weather Resistance | ℃ | minus10- 120℃ | minus10- 120℃ | ||
| Inventory Condition | - | - | temperature: 25℃ | ||
| RH: 65% | |||||
| Insulation Resistance | - | 0. 01- 0. 06 | 0. 01- 0. 06 | Low dc resistance tester | |
| Inventory Validity | six month | ||||
- Strong Adhesive - Jovi copper tape, The copper foil tape conductive adhesive is super sticky and is protected with an easy peel backing which make it can be used on most surfaces & is able to withstand all weather conditions.
- Highly Conductive - Our copper foil uses a highly conductive material with low resistance, has dual conductivity so current will flow through both sides and the adhesive. No need to worry that the copper tape conductive adhesive will reduce the effectiveness between components, making our emi shielding foil a excellent option for electrical projects, repairs and even paper circuits. Excellent alternative to conductive paints.
Features:
Highly Conductive
Low Resistance
Indoor & Outdoor Use
Water Resistant
Strong Conductive Adhesive
Good-quality copper tape!
Packing
Copper foils tapes product can be packed with the roll and in carton case .
