Customized Shielded Conductive Foil 0.06mm Thickness

  • Customized Shielded Conductive Foil 0.06mm Thickness
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-7
Minimum Order Quantity 1 roll
Price USD 10-39 per roll
Packaging Details Paper carton/ wooden case
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000/roll per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Conductive Copper Foil Tape With Conductive Adhesive For Shielded Material Red Copper Purity 99.99%
Color Copper Color Thickness 0.06mm, 0.1mm
Width 25mm, 50mm Or Customized Length 25m/roll, 50m/roll Or Customized
Application MRI Room, RF Shielding Room, Stained Glass, Guitar Specificaton Customized Acceptable
Adhesive Type Conductive Adhesive Or Normal Adhesive
High Light

customized conductive foil

,

shielded conductive foil

,

0.06mm thickness copper foil tape
Leave a Message
Product Description

Conductive Copper Foil Tape With Conductive Adhesive For Shielded

1. Product description

The copper adhesive tape has double conductivity and low resistance
Copper foil tape can be used transformers, mobile phones, computers
Different double side copper tape sizes
The conductive copper foil tape has high quality copper, with excellent flexibility which can be twisted
Major Function:These double-sided copper ribbons are conductive copper. It has a variety of functions to meet your daily needs.


2. Specification of 0.06mm thickness copper tape


Specification(0.06mm thickness)
ItemUnitSpecificationTexting StandardTexting MethodOthers
Copper Thicknessu2525±3　　
Basis Weightg/m2420380+10　　
Copper Foil%99.9599.95　　
Glue Thicknessu4040+3ASTM-1000　
Composition-----Acrylic glueAcrylic glue　　
Total thicknessu100100+5　　
Steel Adhesionkg/1"0.80.8ASTM-1000Initial adhesion tester
Initial Adhesionkg/1"11J.DOWElectronic Stripping Tester
Rentention(cohesion)kg/h4848PSPC-7Viscosity Tester
Weather Resistance℃minus10-120℃minus10-120℃　　
Inventory Condition----------temperature:25℃　　
　　　RH:65%　　
Insulation ResistanceΩ0.01-0.060.01-0.06　　
Inventory Validity　　6 month　　




3. Application

Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,
and other electronic products where domestic electromagnetic shielding.
The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding and magnetic signals of shielded two kinds,
Electrical shielding mainly relies on conductive properties of copper itself, which is excellent, But magnetic shielding foil relies on conductive substance "Nickel ",
which is on the surface of acrylic adhesive, to achieve magnetic shielding effect. Copper foil tape is widely used in mobile phones, notebook computers,

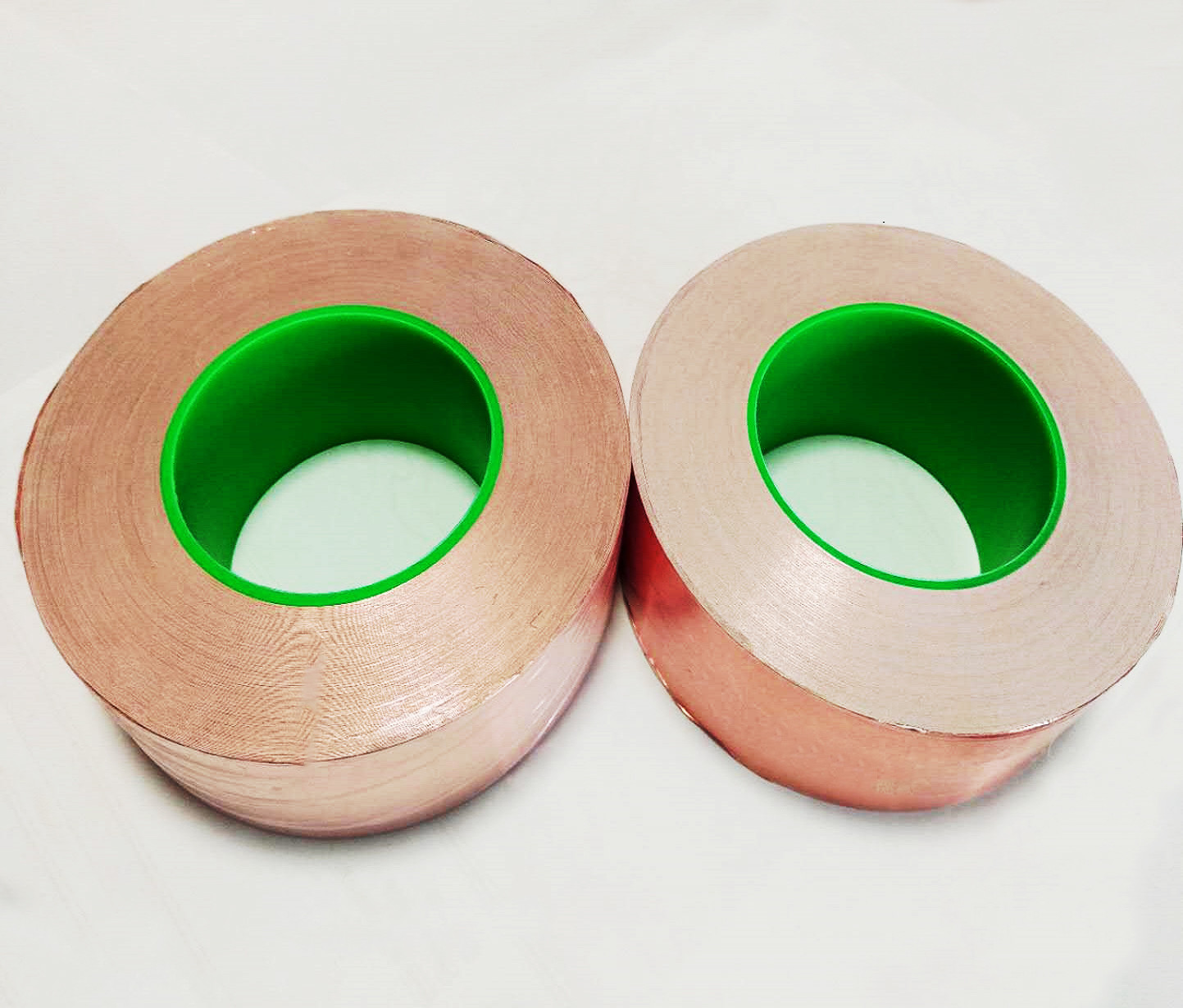

4. Product photo
Customized Shielded Conductive Foil 0.06mm Thickness 0
