99.95% Magnetic 50m Length Conductive Adhesive Copper Tape For Emi Shielding

Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-7
Minimum Order Quantity 10 rolls
Price USD 10-39 per roll
Packaging Details Paper carton/ wooden case
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000/roll per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 99.95% Magnetic Conductive Adhesive Copper Tape For EMI Shielding Material Red Copper Purity 99.99%
Adhesive Type Conductive Or Unconductive Thickness 150mm Thickness
Length 50m Length Width 25mm Or 50mm Width
High Light

99.95% magnetic conductive adhesive copper tape

,

50m length conductive adhesive copper tape

,

emi shielding conductive foil

Leave a Message
Product Description

99.95% Magnetic Conductive Adhesive Copper Tape for EMI Shielding



Product description



The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI) interference,

isolate electromagnetic waves on the human body injury, avoid unwanted voltage and current without affecting functionality.

In addition, electrostatic discharge after the ground has a good effect.





Specification of 0.1mm thickness copper tape



Specification(0.15mm thickness)
Item Unit Specification Texting Standard Texting Method Others
Copper Thickness u 100 100± 3
Basis Weight g/ m2 160 160± 10
Copper Foil % 99.95 99.95
Glue Thickness u 35 35+ 3 ASTM- 1000
Composition ----- Acrylic glue Acrylic glue
Total thickness u 60 60+5
Steel Adhesion kg/ 1" 0.8 0.8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J.DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC-7 Viscosity Tester
Weather Resistance minus10- 120℃ minus10-120℃
Inventory Condition ----- ----- temperature:25℃
      RH:65%
Insulation Resistance Ω 0.01- 0.06 0.01-0.06
Inventory Validity     6 month








Application



Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook computers, photocopiers,

and other electronic products where domestic electromagnetic shielding.

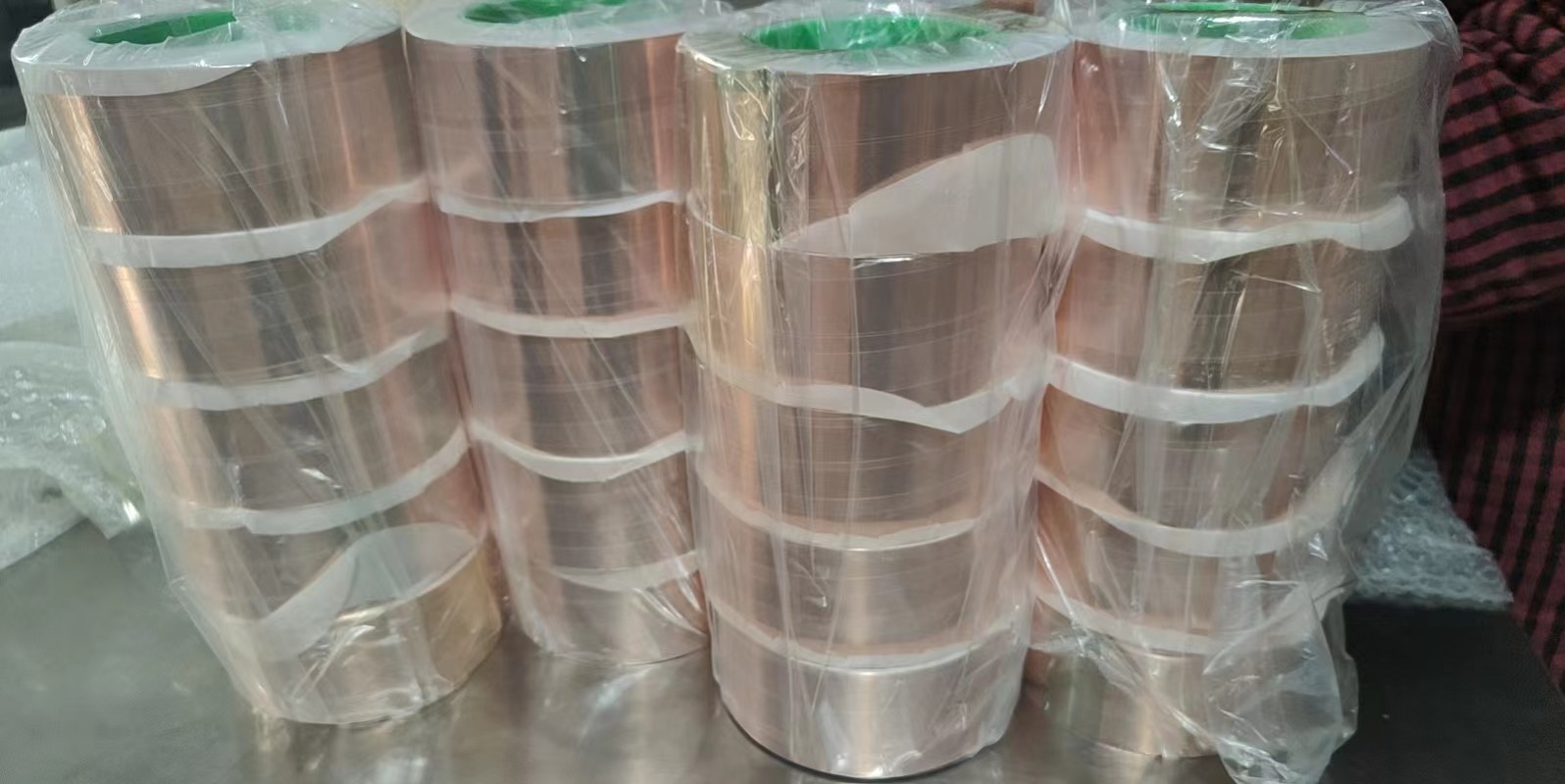

99.95% Magnetic 50m Length Conductive Adhesive Copper Tape For Emi Shielding 0









FAQ:



Q1. Can I have a sample order for lead glass?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: Usually 5-7 working days.



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc is available.
