Mri Rf Shielding Conductive Foil Tape 0.1mm Thickness Flexible

  • Mri Rf Shielding Conductive Foil Tape 0.1mm Thickness Flexible
  • Mri Rf Shielding Conductive Foil Tape 0.1mm Thickness Flexible
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-7
Minimum Order Quantity 20 rolls
Price USD 10-39 per roll
Packaging Details Paper carton/ wooden case
Delivery Time 7-10 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 28000/roll per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name MRI RF Shielding Copper Tapes For 0.1mm Thickness With Flexible Copper Foil Material Red Copper Purity 99.99%
Adhesive Type Conductive Or Unconductive Thickness 0.1mm
Length 50mm Width 50mm
Highlight

mri rf shielding conductive foil tape

,

0.1mm thickness conductive foil tape

,

flexible copper foil tape
Leave a Message
Product Description

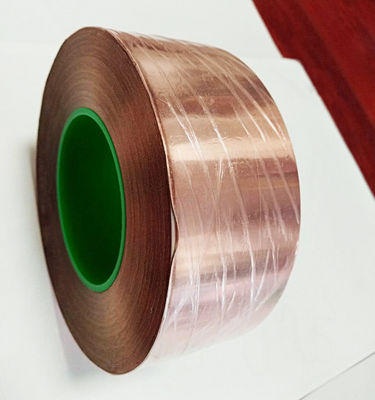

MRI RF Shielding Copper Tapes for 0.1mm thickness with Flexible Copper Foil



Product description



Copper tape with conductive adhesive


A flexible metal foil with a highly conductive self-adhesive on one side, with a release liner

Conductive acrylic adhesive
Supplied on a removable liner for easy handling and die-cutting
Like all Holland Shielding System BV tapes, Copper tape 3201 is available in standard and custom widths and lengths.
The standard length is 16.5 meters.

Standard thickness 0.06mm and 0.1mm



Specification of 0.1mm thickness copper tape



Specification(0.1mm thickness)
Item Unit Specification Texting Standard Texting Method Others
Copper Thickness u 50 50± 3 　 　
Basis Weight g/ m2 160 160± 10 　 　
Copper Foil % 99.95 99.95 　 　
Glue Thickness u 35 35+ 3 ASTM- 1000 　
Composition ----- Acrylic glue Acrylic glue 　 　
Total thickness u 60 60+5 　 　
Steel Adhesion kg/ 1" 0.8 0.8 ASTM- 1000 Initial adhesion tester
Initial Adhesion kg/ 1" 1 1 J.DOW Electronic Stripping Tester
Rentention(cohesion) kg/ h 48 48 PSPC-7 Viscosity Tester
Weather Resistance ℃ minus10- 120℃ minus10-120℃ 　 　
Inventory Condition ----- ----- temperature:25℃ 　 　
　 　 　 RH:65% 　 　
Insulation Resistance Ω 0.01- 0.06 0.01-0.06 　 　
Inventory Validity 　 　 6 month 　 　




Mri Rf Shielding Conductive Foil Tape 0.1mm Thickness Flexible 0



Application



The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding and magnetic signals of shielded.
