Multi-Sizes Conductive Shielding Tape Adhesive Double Sided For Shielded Room

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeature | Heat-Resistant, Waterproof, Antistatic | Material | Copper Foil |
---|---|---|---|
Adhesive Side | Single Sided | Use | Shielded |
Thickness | 0.6mm/0.1mm/customized | Color | Golden,Copper Color |
Width | 25mm/50mm/customized | Length | 50m/roll |
Sample | Available | Application | RF Cage/room |
Product Name | Copper Tape | Carrier | Express |
Packing | In Carton Box | Keywords | Copper Foil Tape, EMI Tape |
Highlight | multi sizes conductive shielding tape,adhesive double sided conductive shielding tape,adhesive double sided copper foil tape |

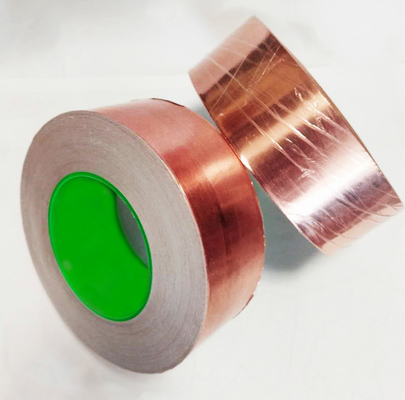

Conductive Adhesive Copper Tape
Product description
Our copper foil tape has strong adhesive force, good electrical conductivity, strong sealing performance, easy to fit,
anti- aging, tortuous use, can be customized according to customers.
It is widely used in conducting, shielding, anti-interference, anti-radiation, grounding electrostatic discharge,
driving pests, and so on.
Specifications: | |||||
Item | Unit | Specification | Texting Standard | Texting Method | Others |
Copper Thickness | um | 25 | 25+ 3 | ||
Basis Weight | g/ m2 | 160 | 160+ 10 | ||
Width | mm | 25 | ± 0. 2mm | ||
Copper Foil | % | 99. 99 | 99. 99 | ||
Glue Thickness | um | 25 | 25+ 3 | ASTM- 1000 | |
Composition | - | ||||
Total thickness | um | 50 | 50+ 5 | ||
Steel Adhesion | kg/ 1" | 0. 8 | 0. 8 | ASTM- 1000 | Initial adhesion tester |
Initial Adhesion | kg/ 1" | 1 | 1 | J. DOW | Electronic Stripping Tester |
Rentention(cohesion) | kg/ h | 48 | 48 | PSPC- 7 | Viscosity Tester |
Weather Resistance | ℃ | minus10- 120℃ | minus10- 120℃ | ||
Inventory Condition | - | - | temperature: 25℃ | ||
RH: 65% | |||||
Insulation Resistance | - | 0. 01- 0. 06 | 0. 01- 0. 06 | Low dc resistance tester | |
Inventory Validity | six month |
WIDE USE
Electrical Repairs
The high conductivity and low resistance of our tapes make them great for any electrical repairs.
It is widely used in mobile phones, laptops, guitar and other digital products.
Plant Protection
Copper slug tape can be wrapped over the bottoms of small plants and seedlings to keep slugs and snails away.
DIY and Decoration
The foil tape is with 6 ideal size for DIY projects, decoration, crafts, creating paper circuits, a fun and easy way to introduce children to electronics.
Physics Experiment
copper foil tape is made of conductive adhesive, thus current flow through both sides of copper tape.
Can be used to make conductive circuits on paper.
Packing
Copper foils tapes product can be packed with the roll and in carton case .
